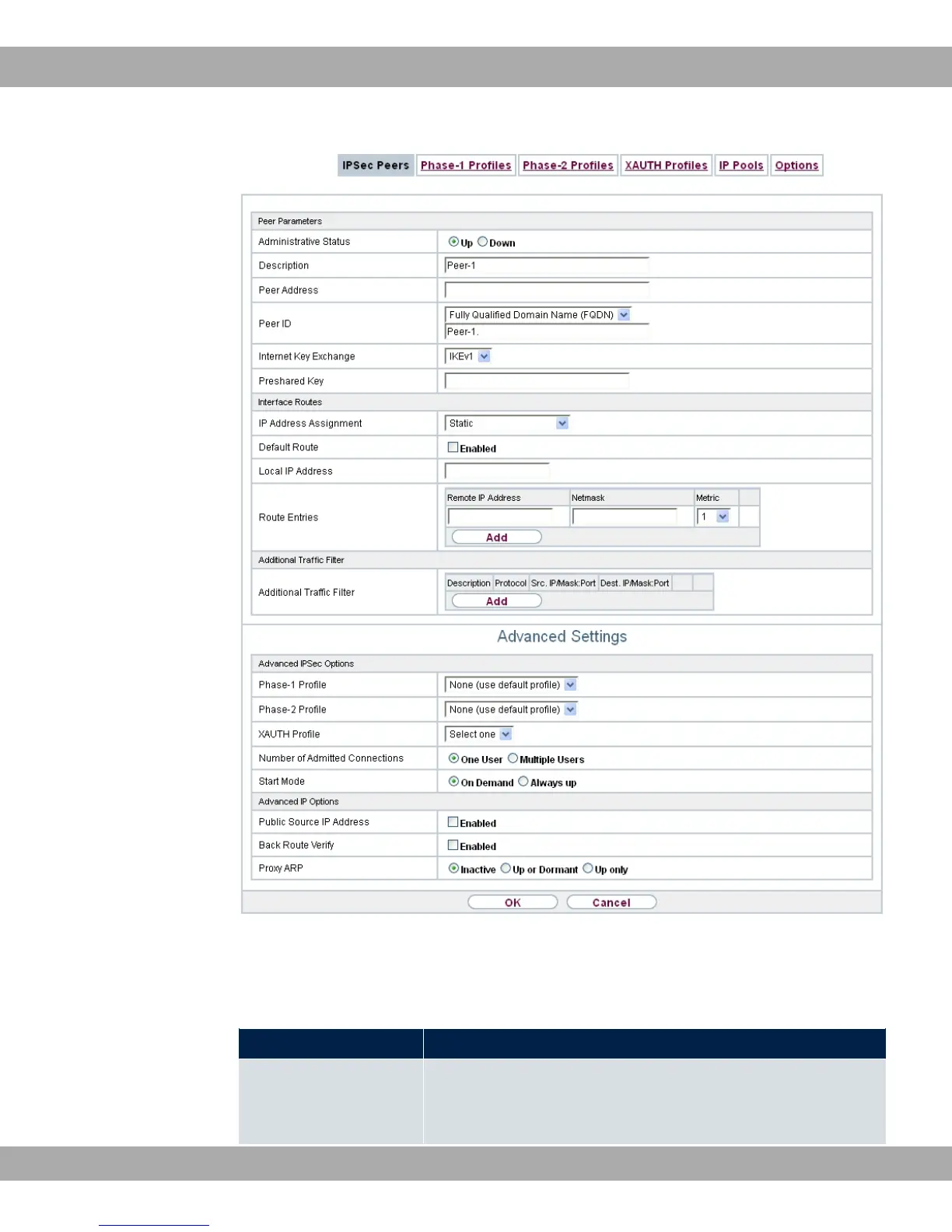

Fig. 130: VPN->IPSec->IPSec Peers->New

The menu VPN->IPSec->IPSec Peers->New consists of the following fields:

Fields in the menu Peer Parameters

Field Description

Administrative Status Select the status to which you wish to set the peer after saving

the peer configuration.
