iTRANS 2
FIXED POINT SINGLE OR DUAL GAS MONITOR
WITH DUAL ANALOG OUTPUTS
USER MANUAL
Revision 7.0

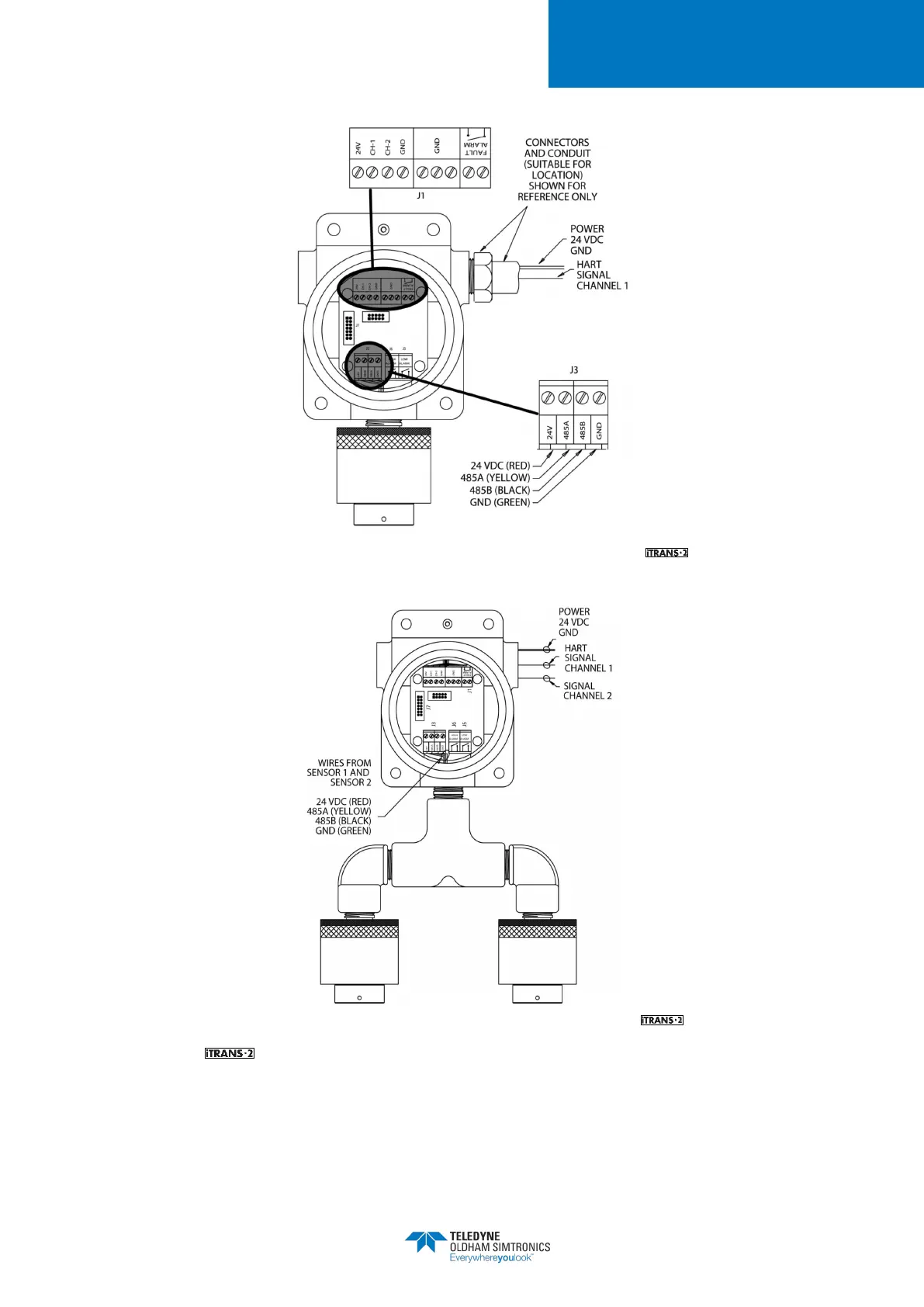

Figure A - 4 Wiring Diagram of Single Sensor HART Supported
Figure A - 5 Wiring Diagram of Dual Sensor HART Supported
Connect the power and signal wires to the appropriate wiring terminals as follows.
• 24 V:Connect 24 VDC (12-28 VDC) supply power
• CH-1:Channel 1, HART 4-20 mA output signal
• CH-2:Channel 2, 4-20 mA output signal
• GND:DC return
