Installation Model 7600
Teledyne Analytical Instruments 28

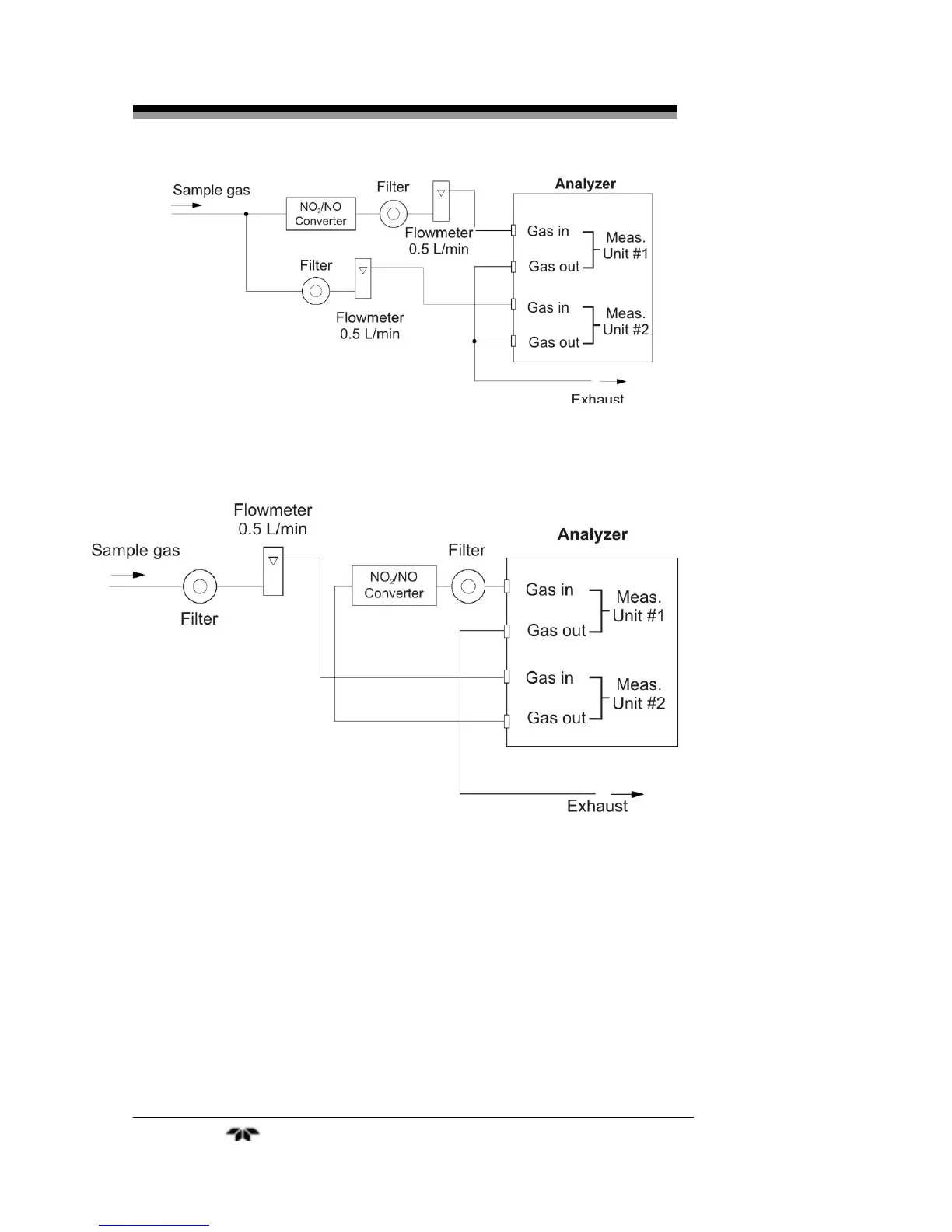

Figure 2-6: External Piping with Two Pair of Inlet/Outlet (1)
Figure 2-7: External Piping with Two Pair of Inlet/Outlet (2)
2.5.3 Gas Conditioning
For optimum performance, the sample gas should be treated as
follows:
• A filter should be installed to remove any dust or particles in
the sample gas. For a final stage filter, use a filter that can
remove dust particles of 0.3 μm.
