Teledyne 7600 - Average Period; Figure 3-13: Average Value Reset; Response Time

Infrared Gas Analyzer Operation
Teledyne Analytical Instruments 79
perform a reset, the contacts must close for at least 1.5 seconds. See
Figure 3-13. Resetting occurs as the contacts reopen.

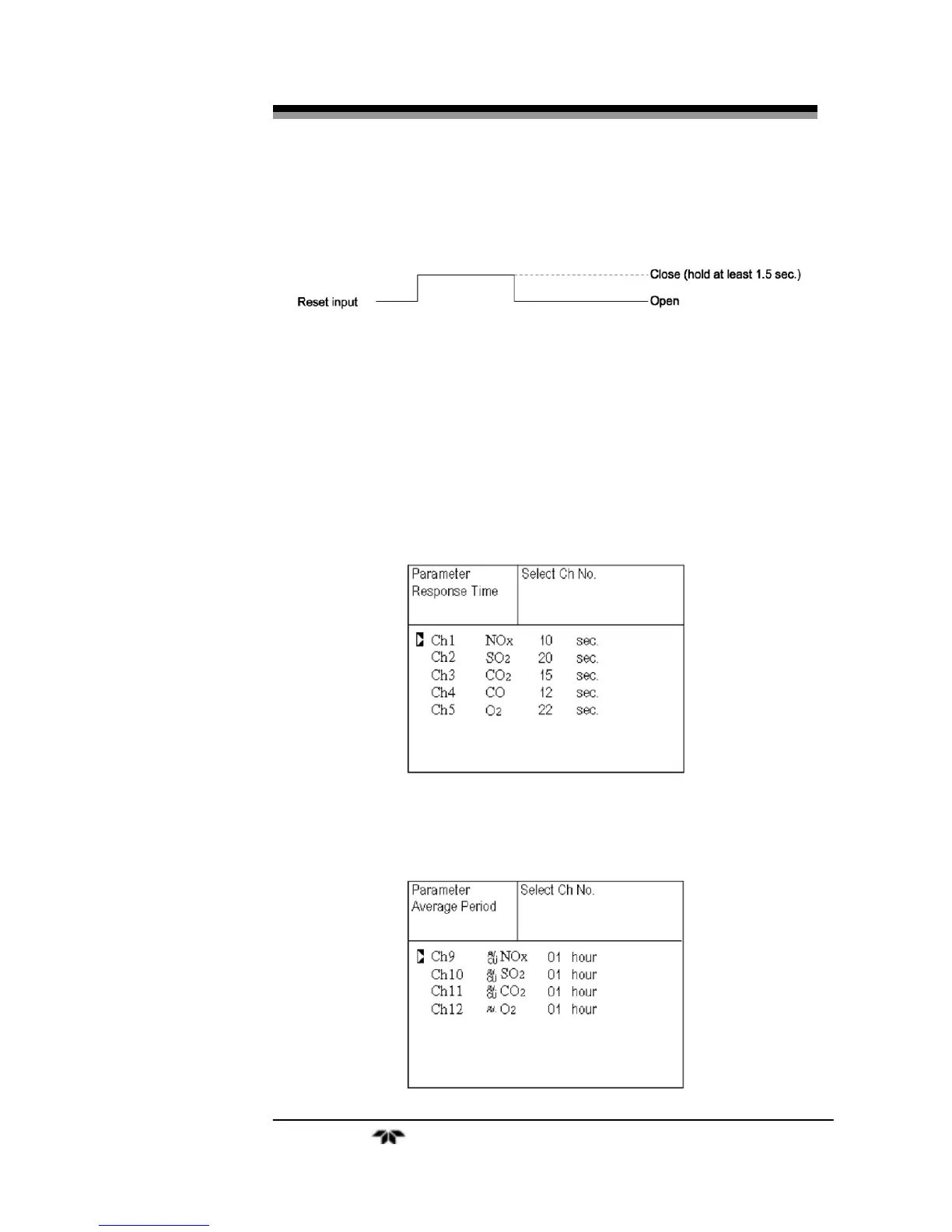

Figure 3-13: Average Value Reset
3.5.7.3 RESPONSE TIME
The response time of the electrical system can be changed.
Individual settings are available for each component.
Note: Response time does not provide exact seconds for the
setting time, but rather it is a guide to the overall response.
3.5.7.4 AVERAGE PERIOD
This submenu allows you to set an averaging period over which the
average value of O
2
correction and O
2
average are sampled.
