13.5 Edit->Tx-Rx>Advanced Drop and Insert Screens
The Edit->Tx-Rx->Advanced screen will show options as displayed in Figure 13-5 and
Figure 13-6 when G.703 or Quad E1 is selected as the terrestrial interface type.
These allow the selection of timeslots for transmission and reception. They allow the
association of specific terrestrial timeslots with satellite timeslots.

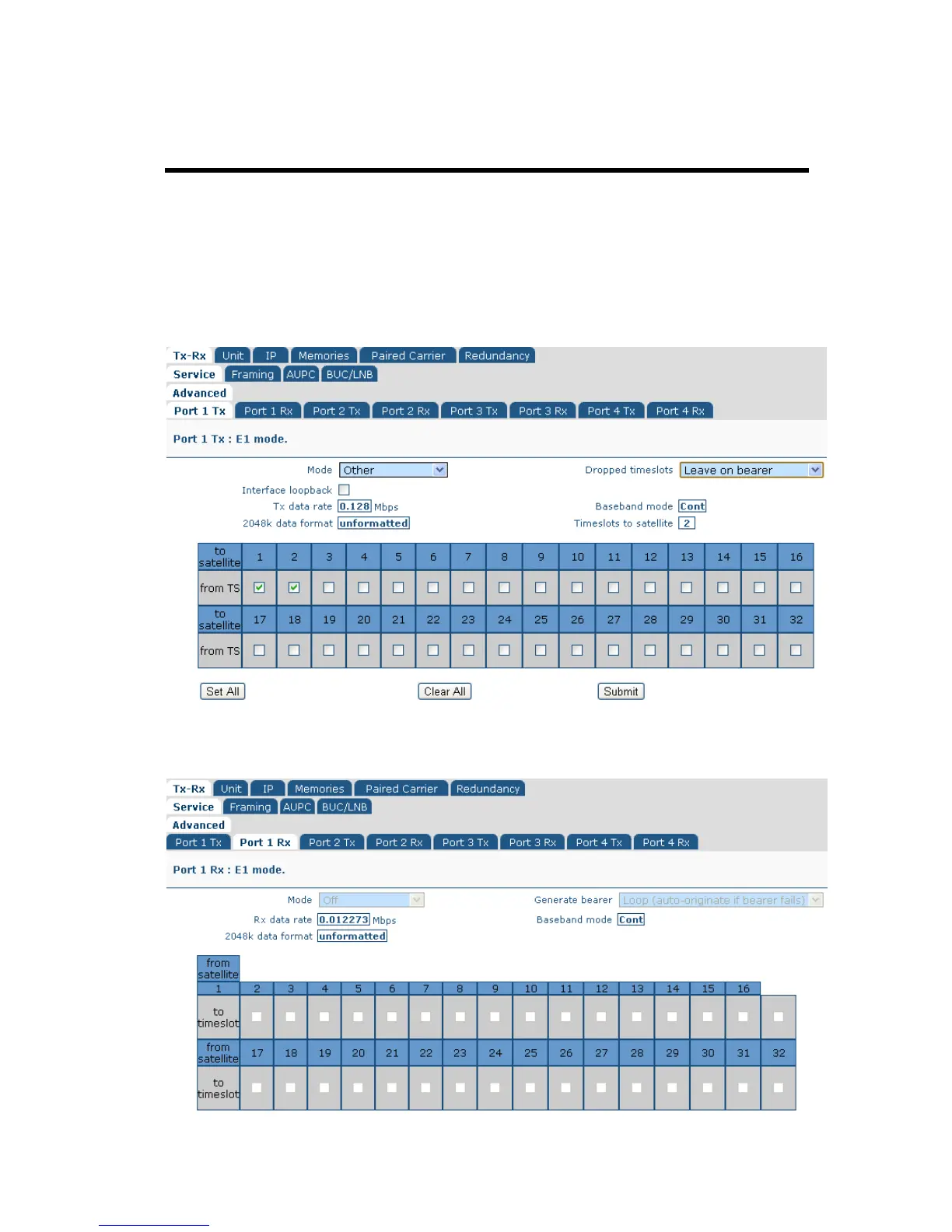

Figure 13-5 Tx Dropped Timeslot Screen
Figure 13-6 Rx Inserted Timeslot Screen
