ADR-7000 / SAVER-7000 / GUARD-7
© 2017 – Telefire Fire & Gas Detectors Ltd Revision 0.98 October 2017
– Page 24 of 87 –
i
Note
All power-limited circuit wiring must be at least 0.25" (6.35mm) away from
any non power-limited circuit wiring. Use different entries of the cabinet or
conduits. See Figure 27 on page 11).

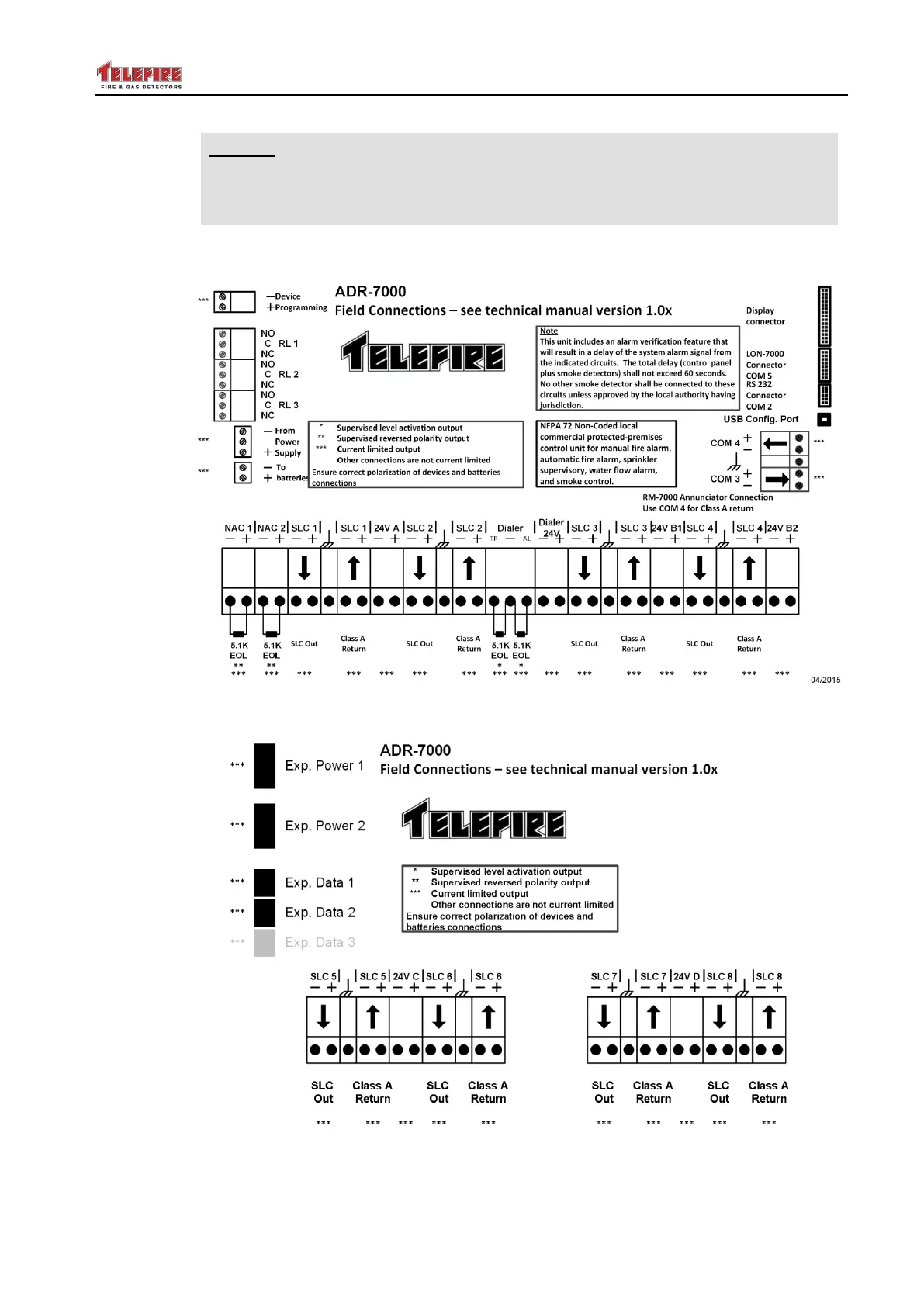

4.4.2 Field Connection Diagram
Figure 7 Connection Diagram – Main Board (ADR-7000 and SAVER-7000)
Figure 8 Connection Diagram – Loop Expansion Board (ADR-7000 only)
