8.9.5 SLC Loops
You can define each loop as active or inactive (Active: No), or working in either Class B
or Class A. You can also see the number of loops defined in the panel.

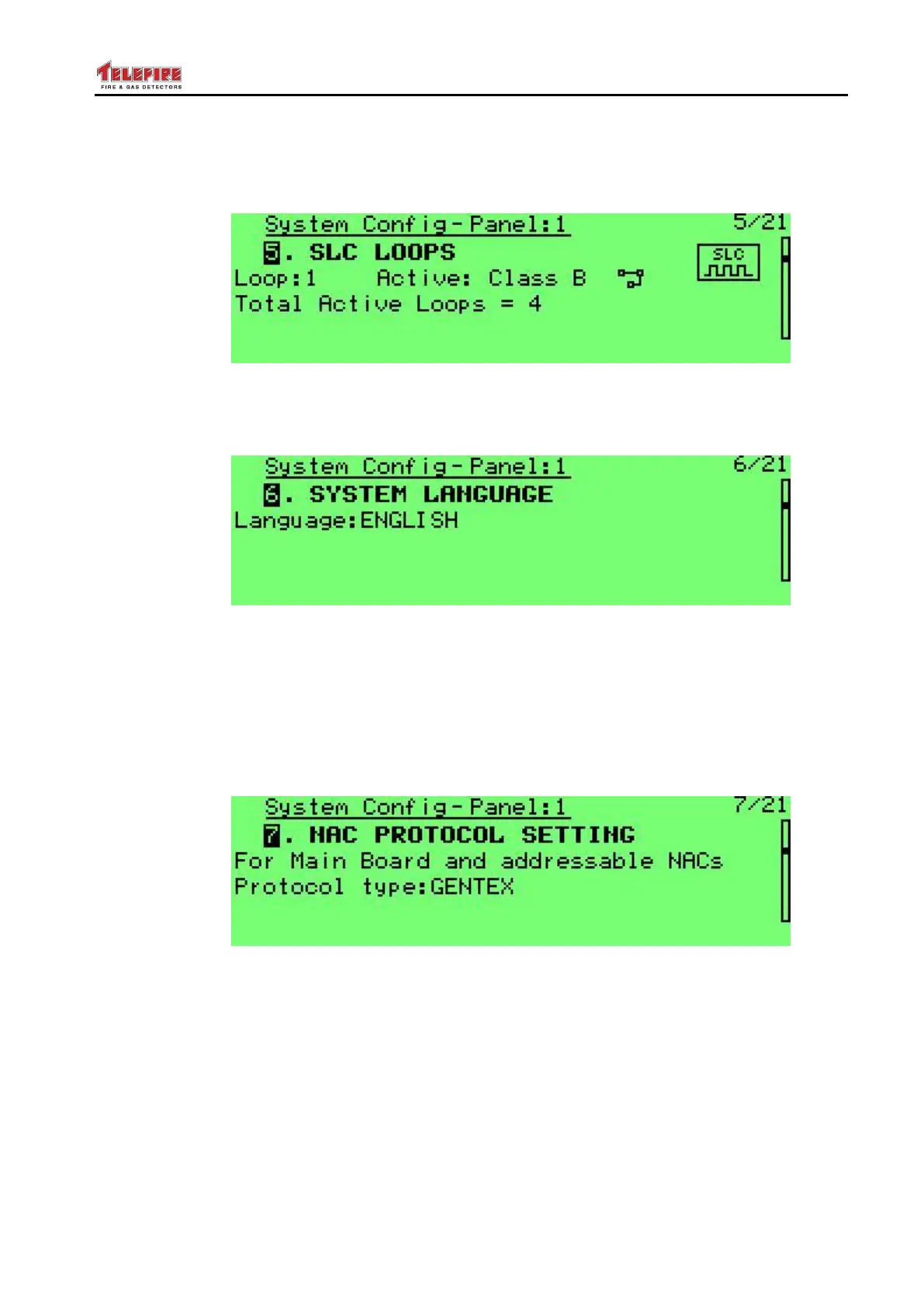

Screen 50 System configuration – SLC Loops
8.9.6 System Language
This will allow you to change between system languages configured in the control panel.
Screen 51 System configuration – system language
8.9.7 NAC Protocol Setting
Here you can select whether NAC outputs shall work in Gentex or Wheelock protocol.
Both system NACs (NAC 1 and NAC 2) and ADR-723 outputs that are configured to
work in protocol operation (jumper setting on the ADR-723) shall work in this protocol.
This protocol synchronizes strobes throughout the system and allows the connection of
a sounder/strobe via 2-wires to the output. When the control panel is silenced, the
sounders shall stop working, but the strobes shall keep on flashing until reset.
Screen 52 System configuration – NAC protocol selection
8.9.8 NAC Outputs
Here you can configure the parameters for NAC 1 and NAC 2. Each can be configured
as Silenced (i.e., will stop operating when the control panel is silenced) or Unsilenced,
(i.e., will continue operating until the control panel is reset). You can also define whether
it operates as a standard output (No Protocol) or with the control panel's protocol
(defined above).
