Tenda AC6 User Manual

Functions on the router’s user interface
42
PPTP server
When the router acts as a PPTP Server, it provides a secure virtual tunnel between your home
network and a remote computer.

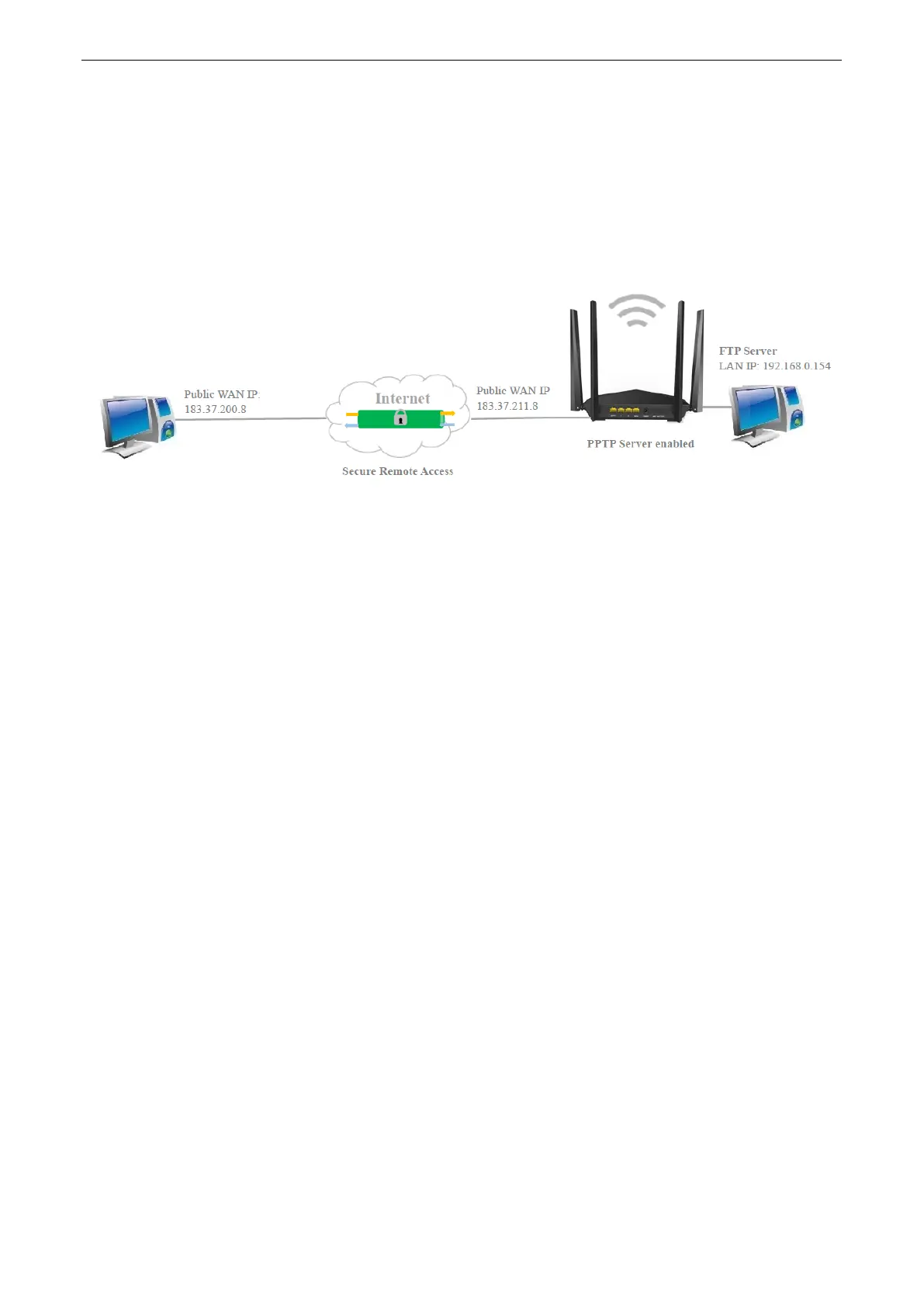

Example
You have a FTP server (LAN IP: 192.168.0.154) in your home network. If you want to visit the
resources on the FTP server from the company’s computer, you can refer to the following
procedures.
Configuration
To set up a PPTP server:
1. Log in to the router’s user interface, and click VPN > PPTP Server.
2. Click PPTP Server button to enable the feature.
3. Type an IP range for PPTP clients which should not overlap with the IP address of the PPTP
server.
4. Enable MPPE Encryption, and select an encryption bits, 40 or 128 according to your needs.
5. Specify a username and password for your PPTP server, and click Add.
6. Click Save.

Tenda AC6 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
VPN support	IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	5 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	LAN, WAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
