Tenda AC6 User Manual

Functions on the router’s user interface
50

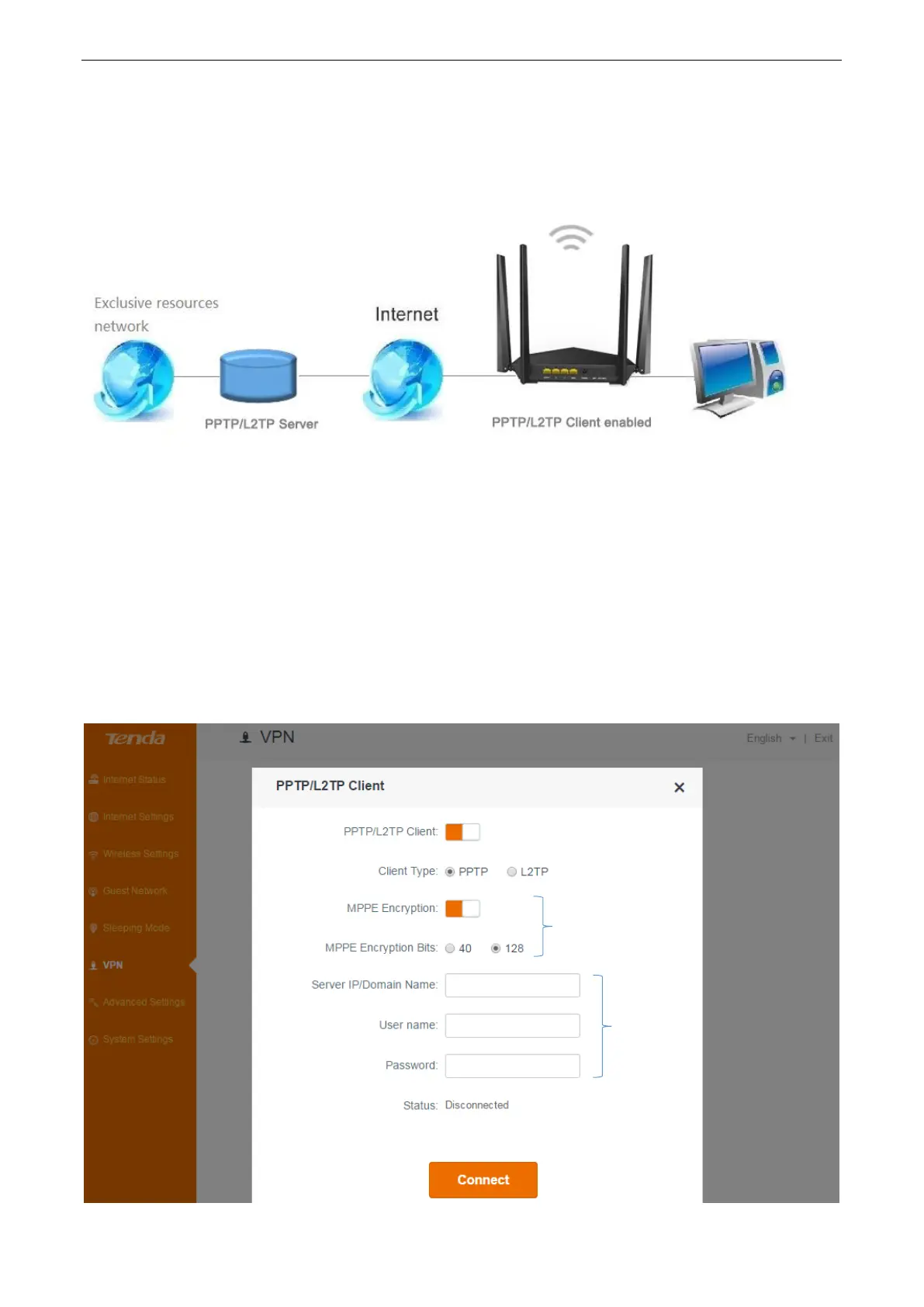

PPTP/L2TP client
When acts as a PPTP/L2TP client, the router helps you to establish a secure communication
between the attached devices and the PPTP/L2TP server provided by individual or internet Service
Provider. Then all the devices connected to the router can access the exclusive resources network
through the PPTP/L2TP server.
To set up PPTP client:
1. Log in to the router’s user interface, and click VPN > PPTP/L2TP Client.
2. Click PPTP/L2TP Client button to enable the feature.
3. Select PPTP.
4. Click to enable MPPE Encryption, and select an encryption bits, 40 or 128 according to your
needs.
5. Type the server IP/domain name, user name, and password of the PPTP server.
6. Click Save.

Tenda AC6 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
VPN support	IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	5 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	LAN, WAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
