Tenda AC6 User Manual

Functions on the router’s user interface
67
2. Click Save to activate the settings.

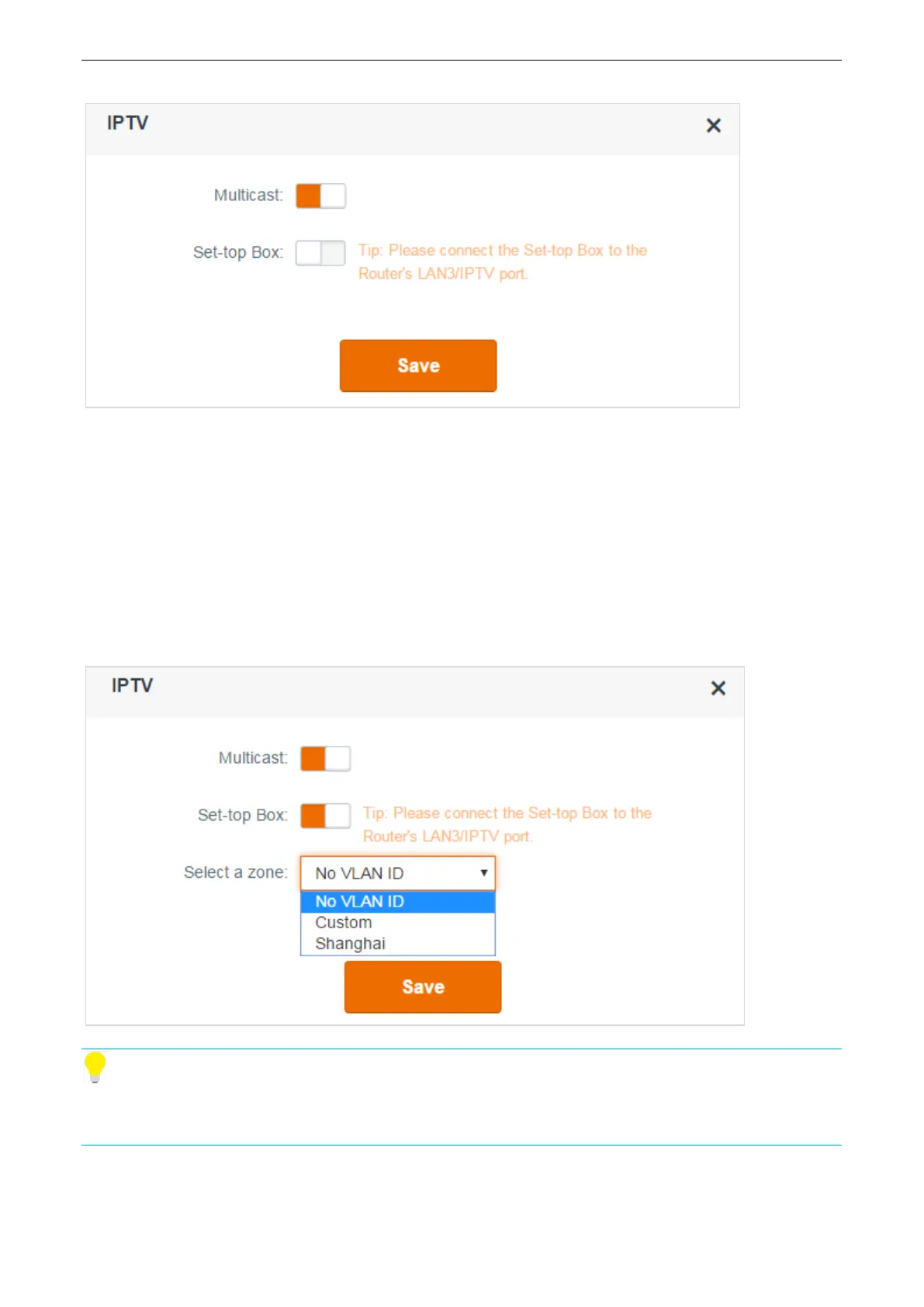

Set-top Box
If you has a set-top box at home, and also order IPTV service from your internet Service Provider.
Enable the Set-top Box feature, and connect your set-top box to port 4 of your router.
1. Click Set-top Box button to enable the feature.
2. Select a zone: Consult internet Service Provider for specific information of this part.
3. Click Save to activate the settings.
Then you can enjoy the videos on your smart TV.
Tips
When the IPTV feature is enabled, the Wireless Repeating is not available.

Tenda AC6 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
VPN support	IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	5 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	LAN, WAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
