Teradek CUBE Series User Manual

Encoder to Decoder
Infrastructure Network

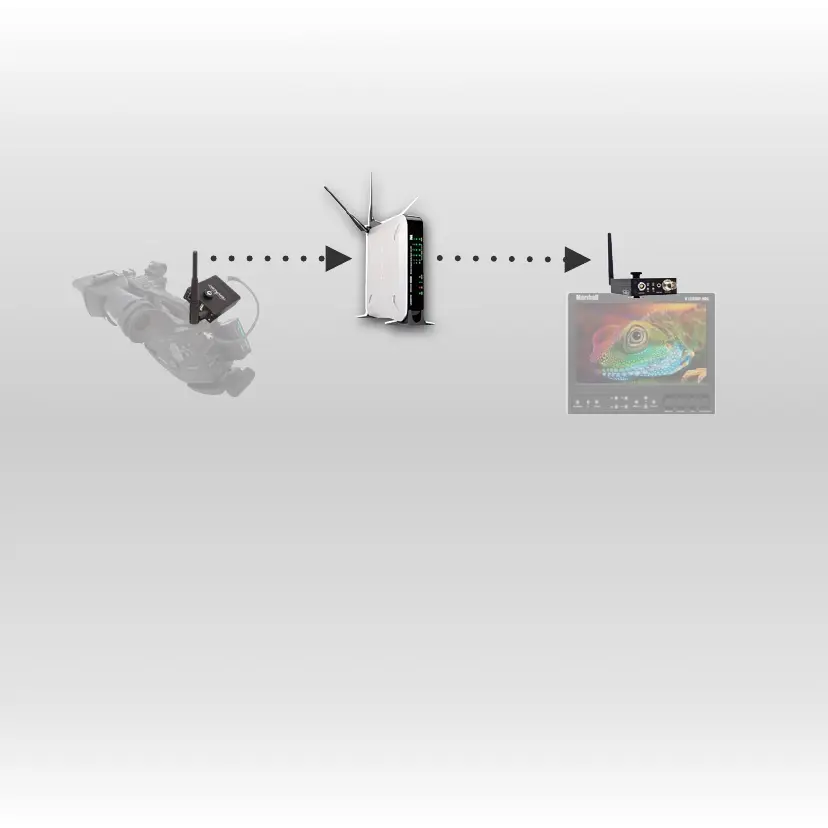

In this example, the wireless router creates a wireless network, and both the
Cube Encoder (on the left) and Cube Decoder (on the right) join that network.
After the devices are paired, video streams from the Encoder to the Decoder
through the wireless router.
Streaming through a router provides both longer WiFi distances and high
bitrates, and allows security options.
A screencast describing Encoder to Decoder Infrastructure Networking is
located at http://vimeo.com/18132179
11

Teradek CUBE Series Specifications

General

Video Inputs	HDMI, SDI
Video Outputs	HDMI, SDI
Supported Resolutions	Up to 1080p60
Video Compression	H.264
Audio Compression	AAC
Streaming Protocols	RTMP, RTSP, HLS
Ethernet	10/100/1000 Mbps
Wi-Fi	802.11 a/b/g/n
