Terex TA50RT - TA50 RT Working Envelope Diagram

Model TA50RT
Rev. 1 04/99
SPECIFICATIONS
1
1 - 2
1.1.4. WORKING ENVELOPE
The TA50RT has a working height ability of 16.90 m. The following diagram shows the working envelope for
the TA50RT. All dimensions are in metres.

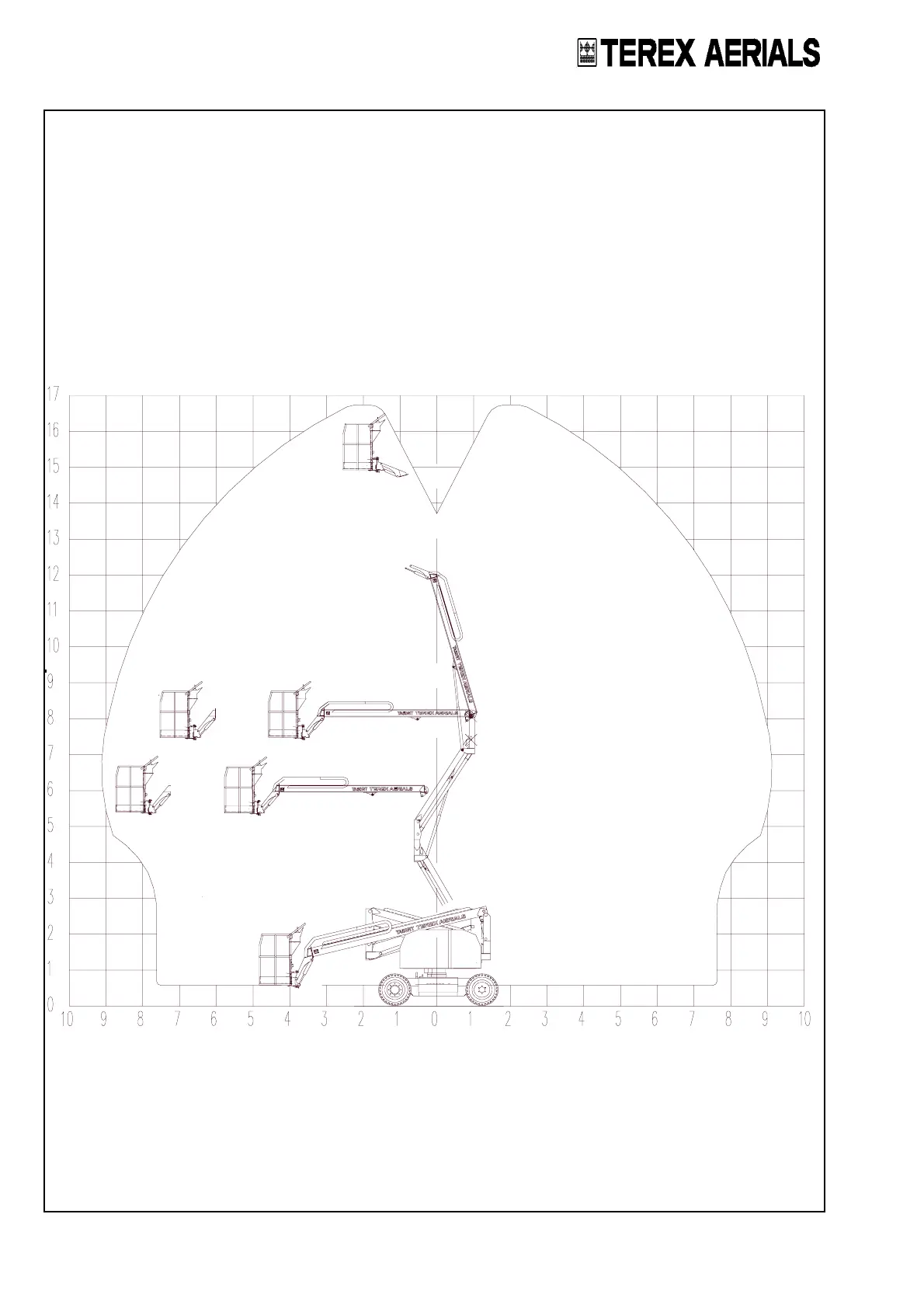

Figure 1.1 - TA50RT Working Envelope
