OPERATING PROCEDURES
3
Model TA50RT
Rev. 1 04/99
3 - 6
1) Emergency Stop Switch 10) Cage Rotation Switch
2) Engine on/off switch 11) Horn Button
3) Footswitch 12) Differential Lock Switch
4) Drive Speed Select Switch 13) Boom Selector Button
5) Drive/Steer Joystick 14) Boom Selection Indicator LED
6) Boom/Rotate Joystick 16) Engine Warning Light
7) Teleboom Joystick 17) Instability Warning Light
8) Cage Levelling Switch
9) Engine Speed Switch

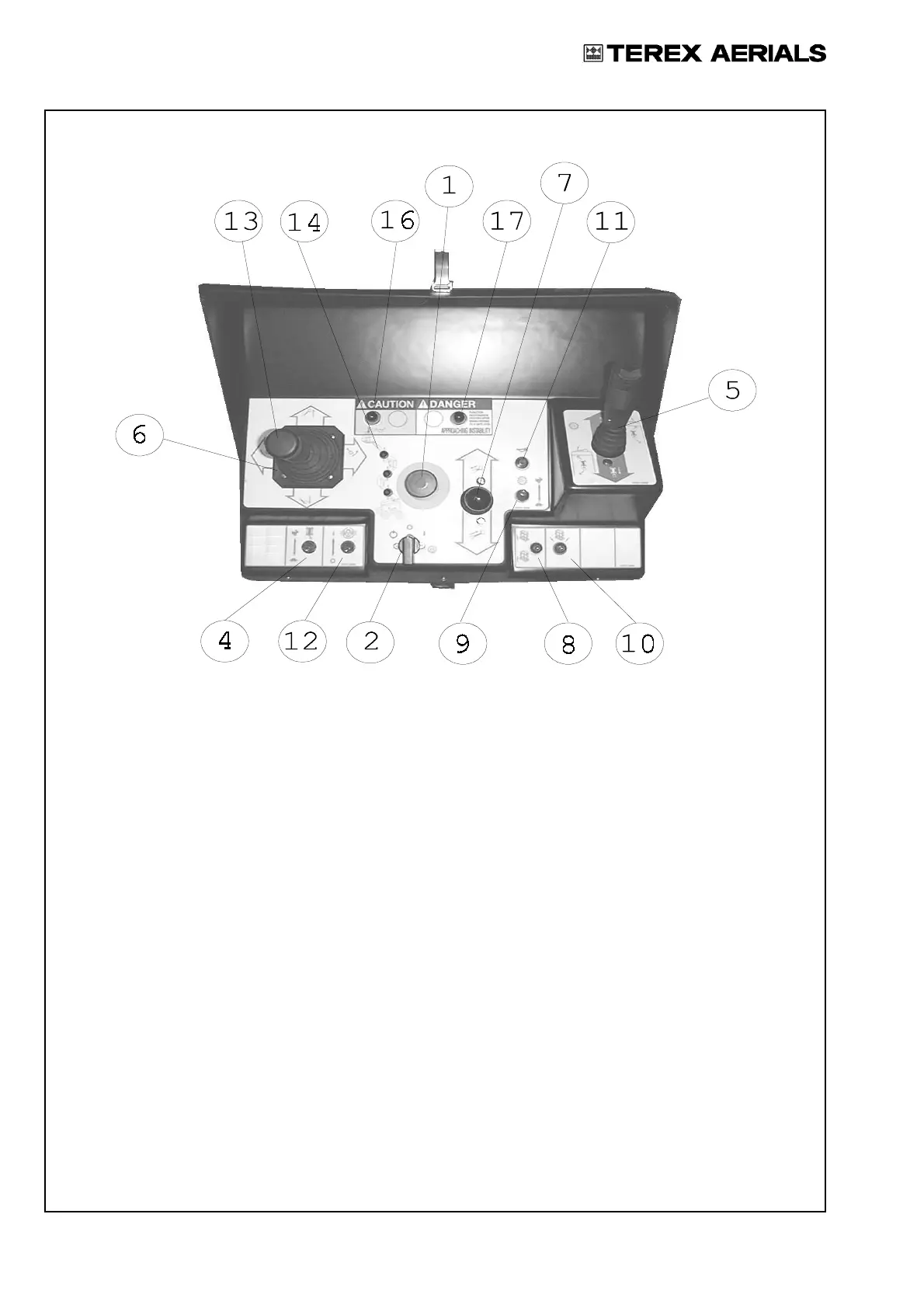

Figure 3.1 - Cage Controls
