OPERATING PROCEDURES
Model TA50RT
Rev. 1 04/99
3 - 11
1) Emergency Stop Button 9) Cage Level Switch
2) Engine Ignition Switch 10) Cage Rotate Switch
3) Cage/Ground Select Switch 11) Hourmeter
4) Lift 1 Boom Switch 12) Battery Volt Indicator
5) Lift 2 Boom Switch 13) Engine Condition Indicator
6) Lift 3 Boom Switch 15) Engine Pre-Heat Button
7) Tele Boom Switch
8) Steer Rotate Switch

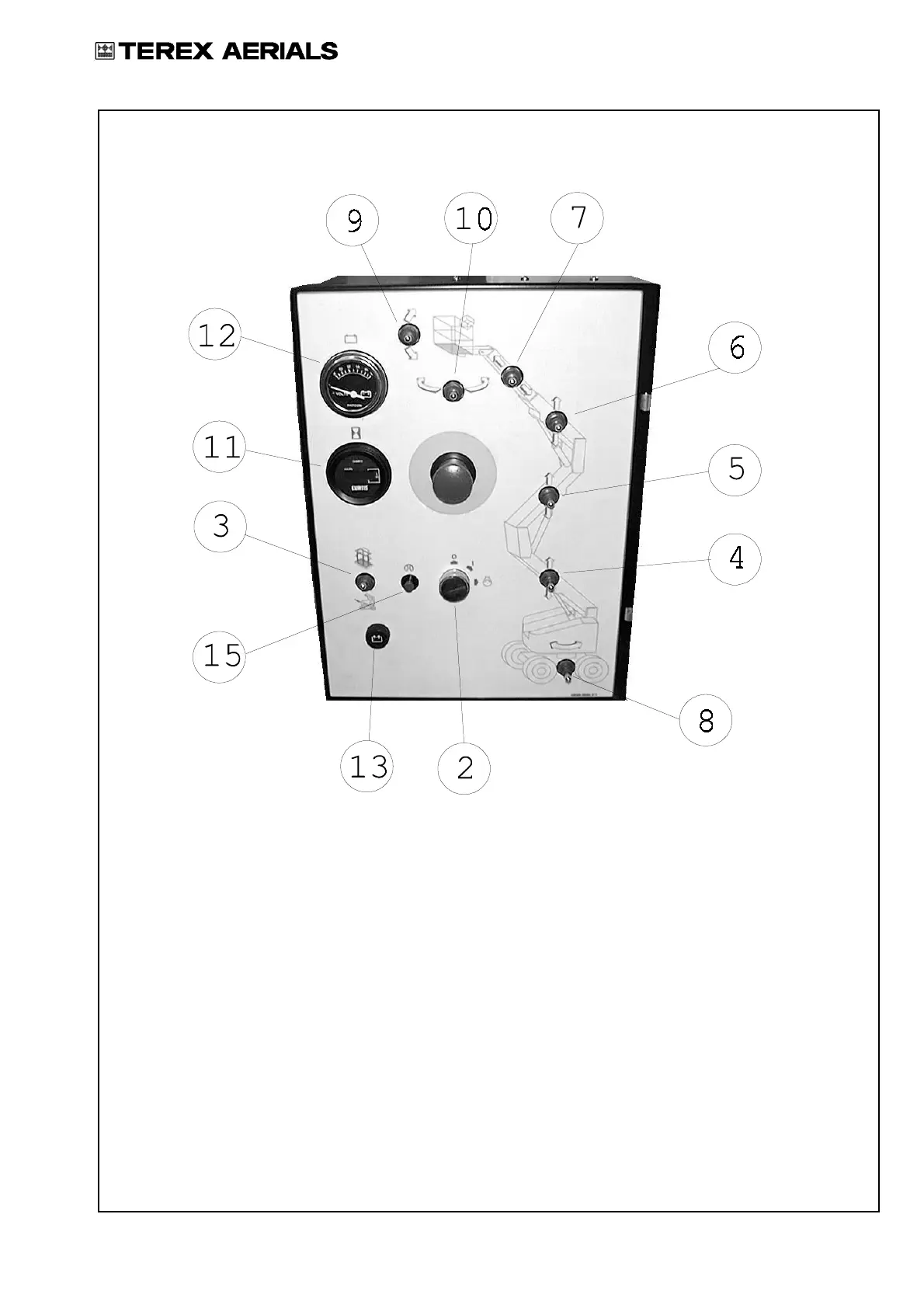

Figure 3.2 - Ground Controls
