Model TA50RT
Rev. 1 04/99
4
EMERGENCY PROCEDURES
4 - 7

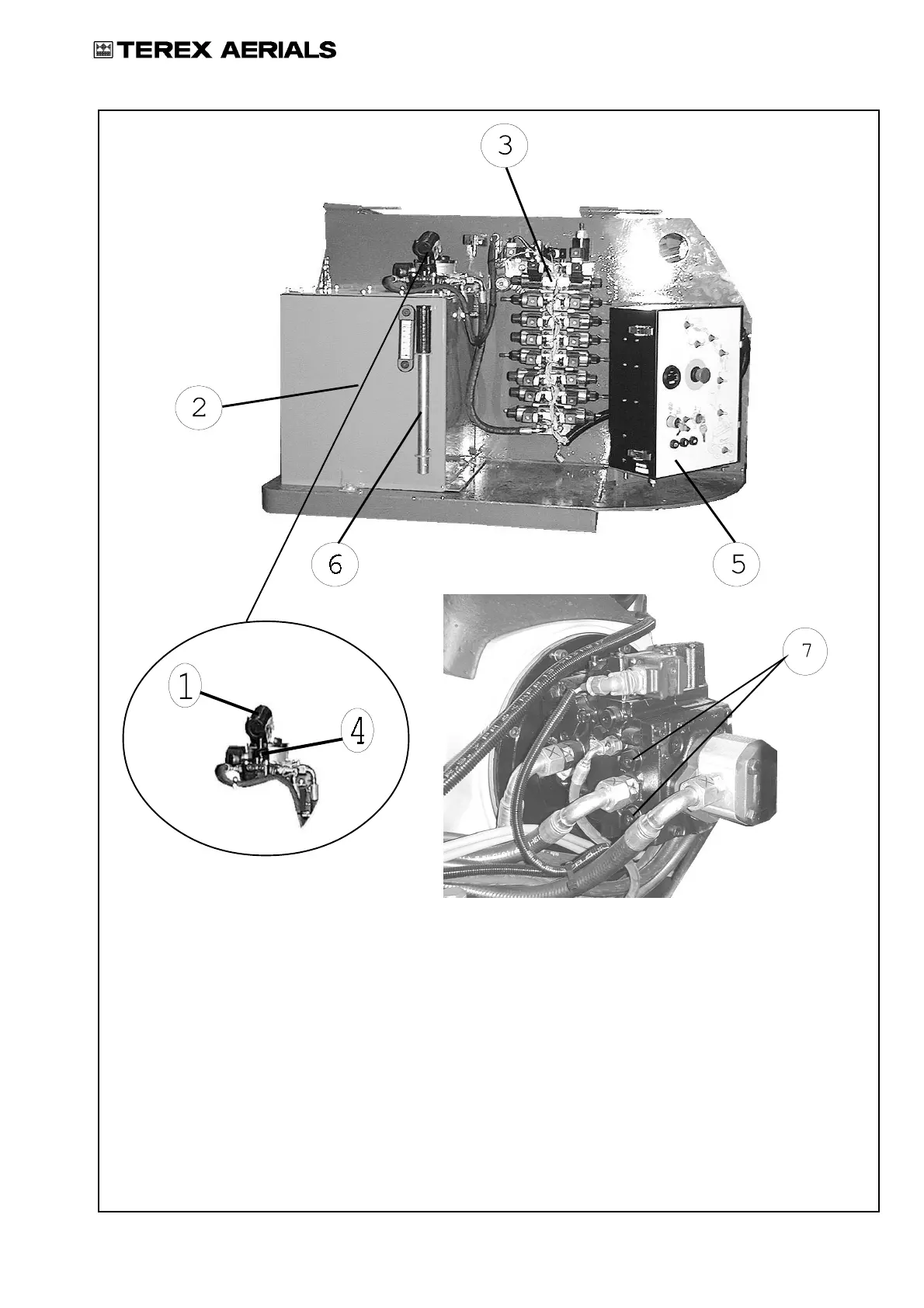

HYDRAULIC MODULE ENGINE COMPARTMENT
1) Emergency Handpump 7) 2 studs press to allow oil to
2) Oil Tank circulate through pump.
3) Hydraulic Valve Block
4) Handpump Selector. (Lift/Brake)
5) Lower Control Box
6) Handpump Handle
Figure 4.3 - Hydraulic and Electrical Modules
