IBUC Operation Manual 6-30
Terrasat Communications, Inc.
Rev. A
Alarm Status page:
This page allows the operator to verify the alarm status of the unit. The green
background shows that the parameter is OK. Minor faults will have an orange
background and major faults will have a red background. Refer to Table 6-1 to find out
which alarms are user configurable and what the default configuration is. At the bottom
of the page the operator will be able to access the Alarm History log and clear it by
clicking the clear button.

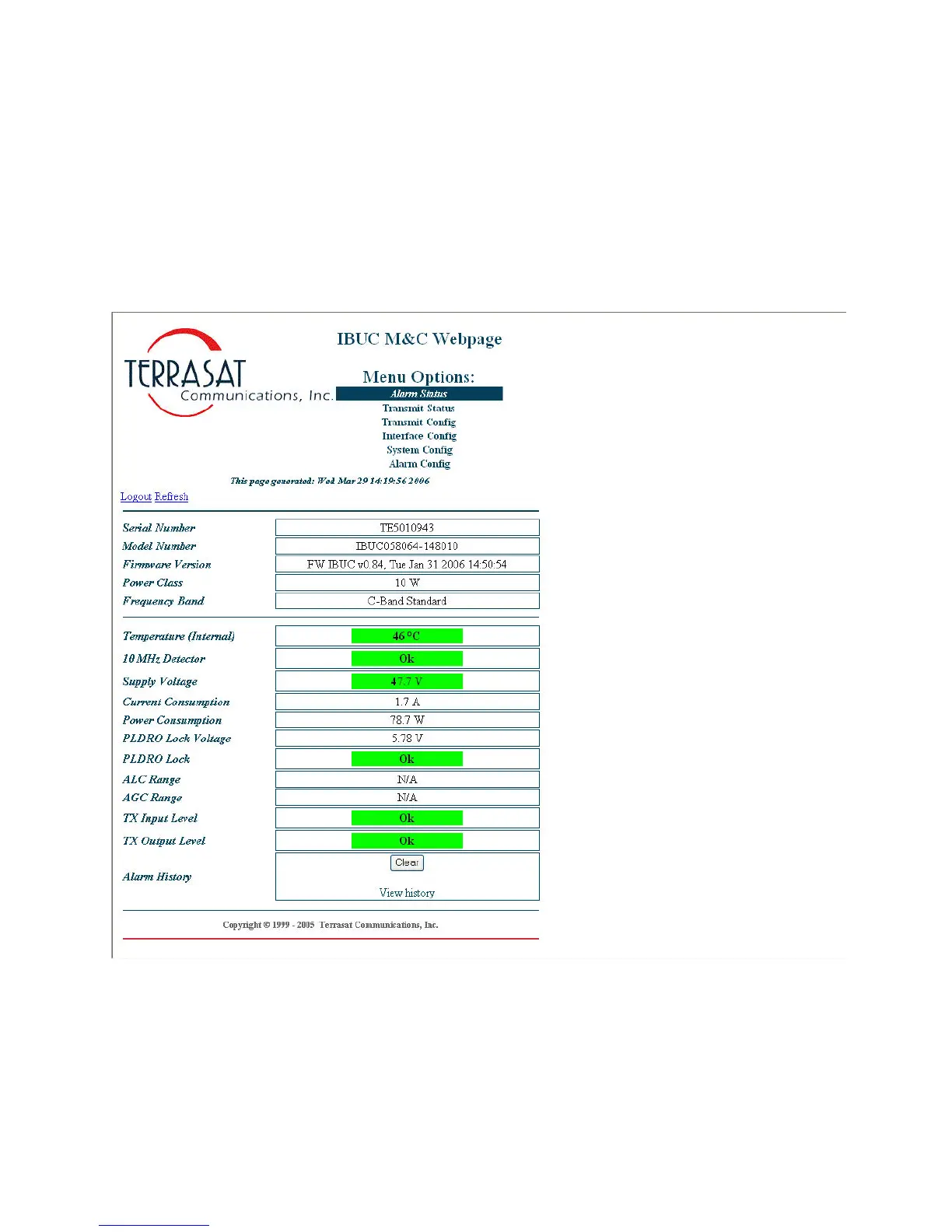

Figure 6-4 Alarm Status page
Refer to Table 6-9 IBUC M&C Command Set for information regarding parameters and
valid values.
