IBUC Operation Manual 6-31
Terrasat Communications, Inc.
Rev. A

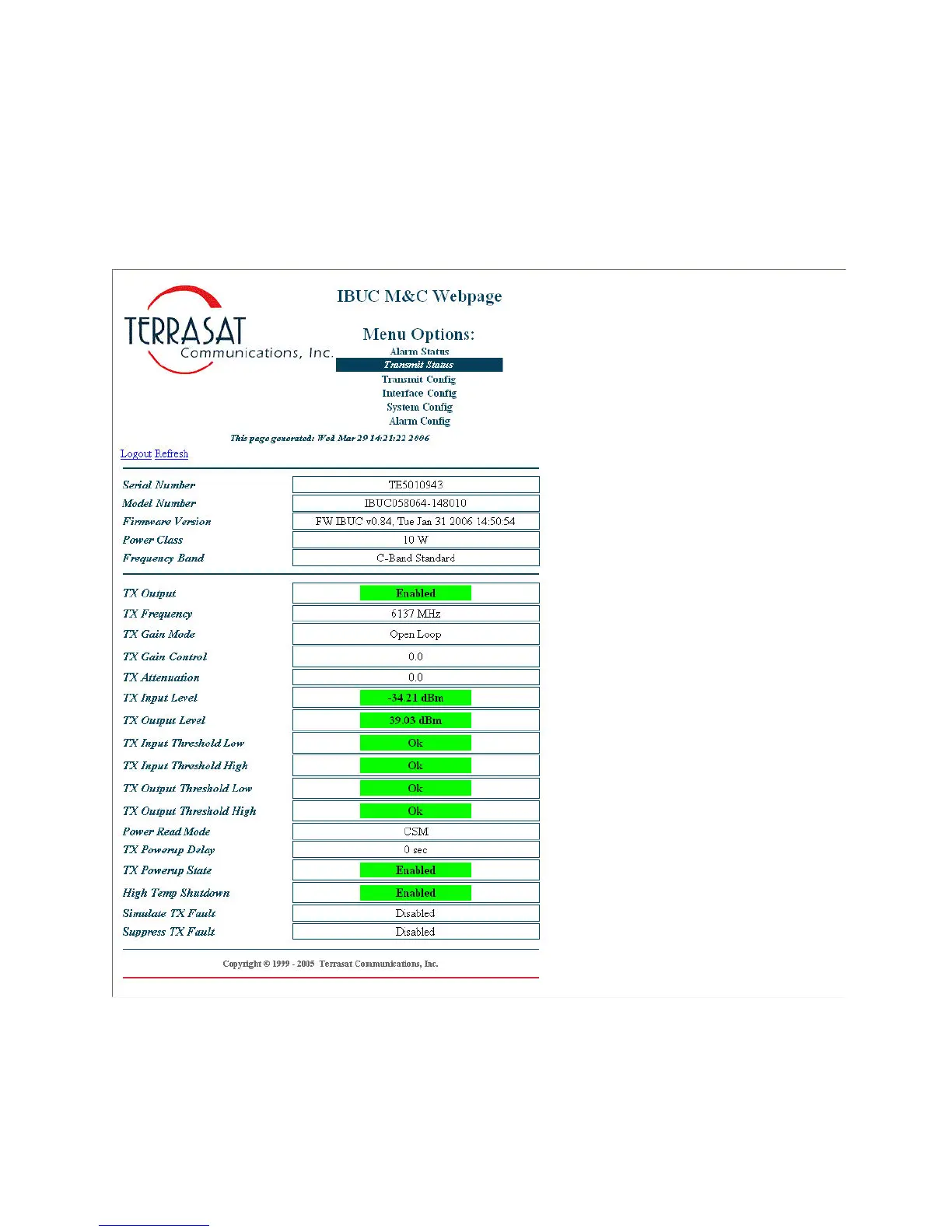

Transmit Status page:
This page allows the operator to verify if the transmission is enabled, the frequency set
for power monitor purposes, mode of operation, attenuator status, input and output
levels, etc. The green background shows that the parameter is OK. Minor faults will
have an orange background and major faults will have a red background. Refer to Table
6-1 to find out which alarms are user configurable and what the default configuration is.
Figure 6-5 Transmit Status page
Refer to Table 6-9 IBUC M&C Command Set for information regarding parameters and
valid values.
