TESA CLINOBEVEL 2 - Page 38

HOLD
ENTER
38

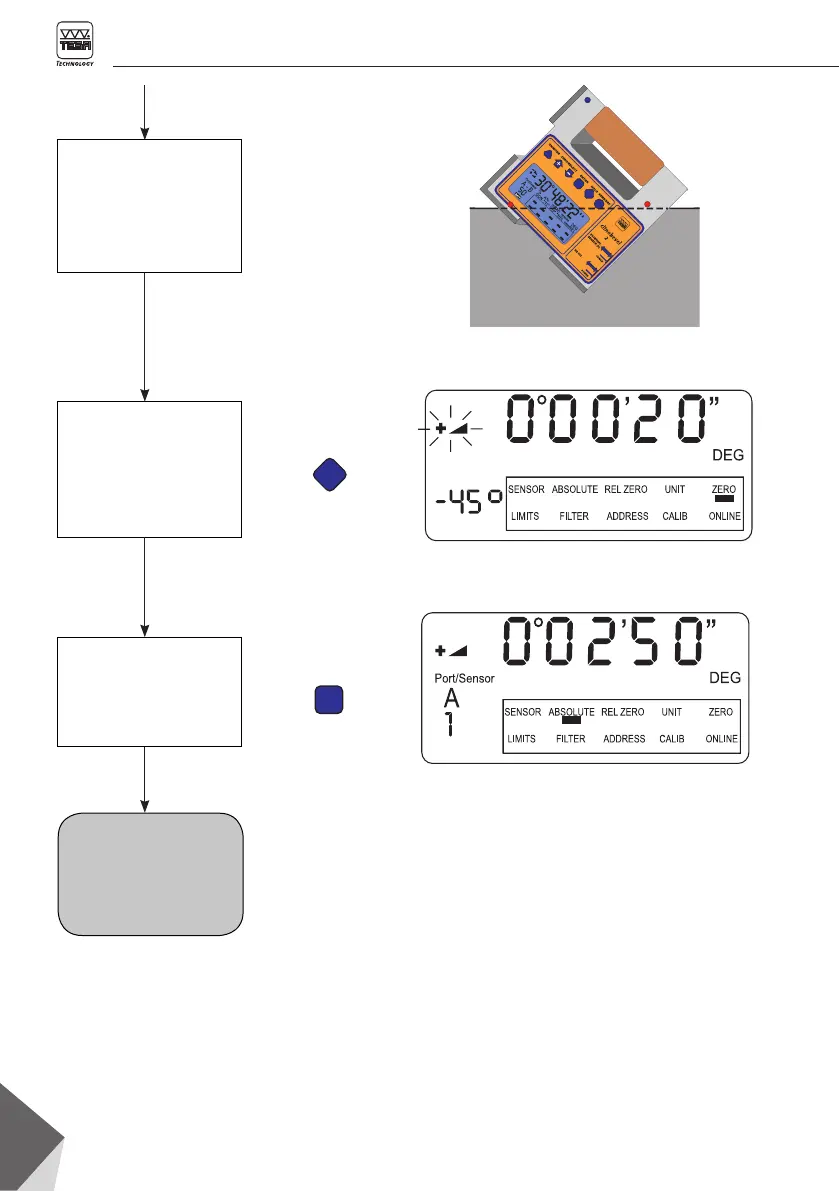

Insert
two cylindrical pins
and tilt CLINOBEVEL 2
to « - 45° »
while it rests
on the surface plate
Ensure steady,
safe positioning
before executing
the measurement
and wait until
correction value is
processed
Confirm and wait
until correction
value for angle
« - 45° » is processed
Note
Both cylindrical pins (4 x 22 mm in dia.) should
be lightly greased and stored in a safe place for
subsequent adjustments.
Clinobevel 2 is ready to
measure with new
correction values providing
a new display setting has
been also made according
to chapter 6.1
