The supports simplify the measuring operation,
especially when gauging very wide distances.
– Fit the clamps (16) and introduce the measuring
arms (17).
– Set the measuring arms as shown in Fig. 13 to
bring the instrument into the most favourable
position.
6 USE OF THE SUPPORTS
– If necessary, steel cylinders can be placed on the
workpiece, and the measuring arms supported
on these to decrease friction while setting to
length.

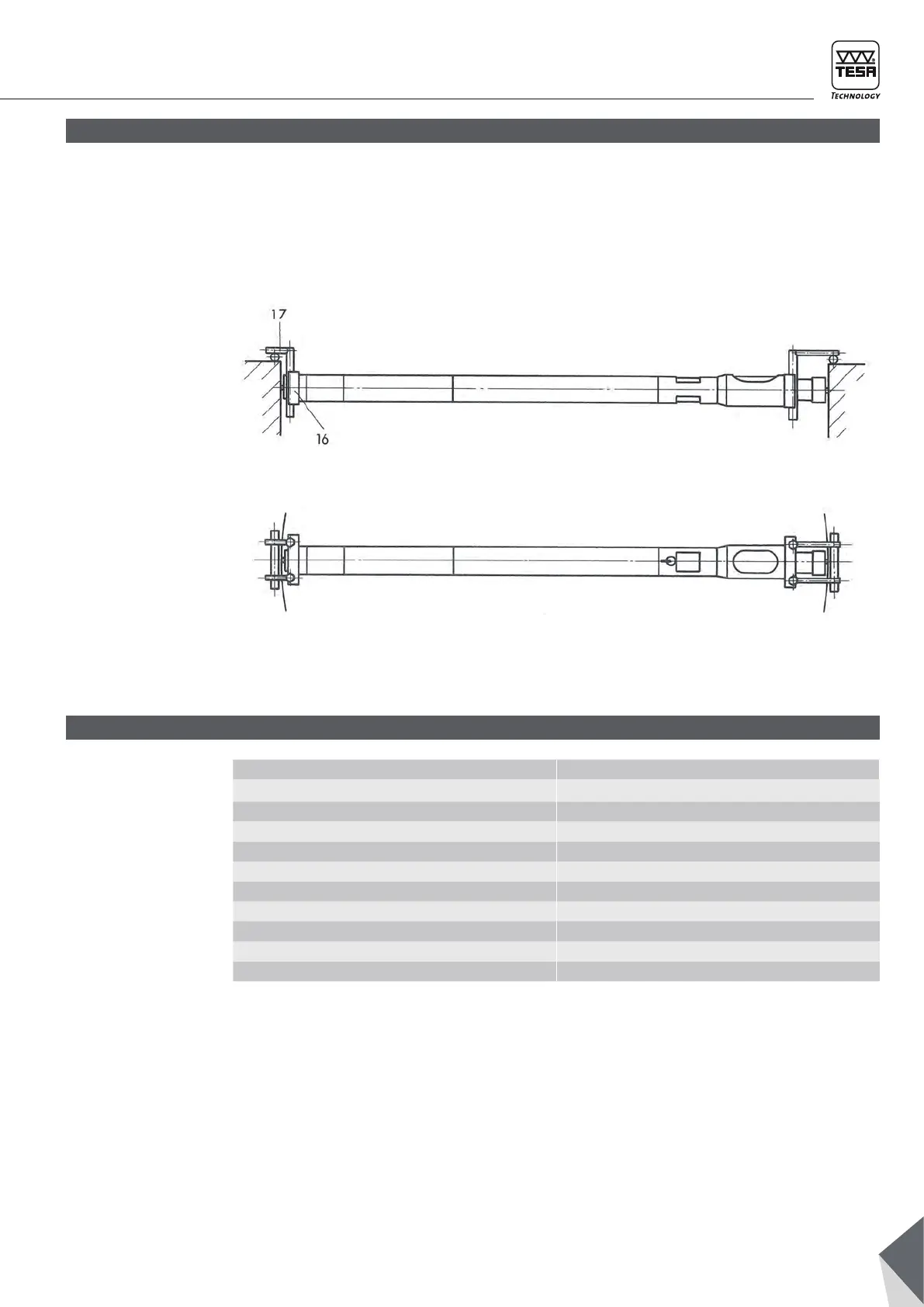

Fig. 13.
7 MANUFACTURING TOLERANCES
Measuring head max. ± 5 µm
Extension of 25 mm 0,7 µm
Extension of 50 mm 1 µm
Extension of 75 mm 1,2 µm
Extension of 100 mm 1,5 µm
Extension of 125 mm 1,5 µm
Extension of 150 mm 2 µm
Extension of 300 mm 3,5 µm
Extension of 450 mm 4,5 µm
Extension of 600 mm 6,5 µm
Extension of 1000 mm 10,5 µm
