HYDRAULIC PULLER TENSIONER PT2450
Manual: MI-PT2450-050-00-GB Date: 28.07.2018 Author: AT Page: 27 of 89

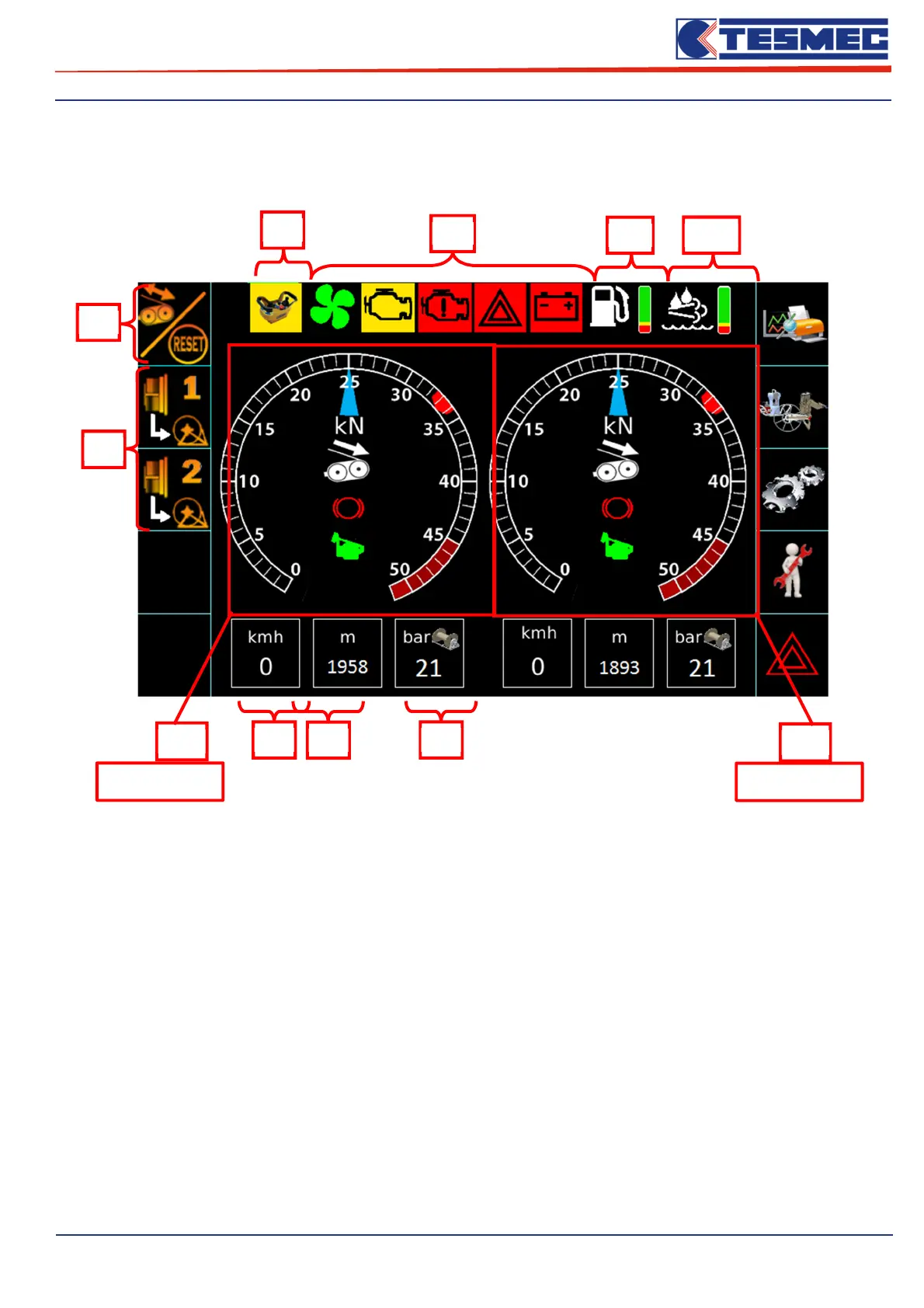

5.5.1 WORKING AREA MACHINE
In this chapter it will be described the command and graphic representation in the main control panel.
1- Virtual Dynamometer (circuit 1 and 2): Displays the pull set and the actual shooting on the machine,
depending on the choice of configuration work by the operator (between the button n°5).
The machine can work in the following configurations:
- Puller – scale from 0 to 50 kN (Circuit 1 o Circuit 2) and scale from 0 to 100 KN (Circuit connected)
- Tensioner – scale from 0 to 50 kN (Circuit 1 o Circuit 2) and scale from 0 to 100 KN (Circuit connected)
- Puller fine brake scale – scale from 0 to 17 kN (Only Circuit 1)
- Tensioner fine brake scale – scale from 0 to 17 kN (Only Circuit 1)
The dynamometer scale will change automatically as a function of the bull-wheels rotation, if the speed is
greater than 0, will be displayed while the set (through the pos.5 button) if the machine is stopped.
On the following page, shows four configurations of the crane scale can take.
9
8
7
6
5
2
3
4
1
10
1
Circuito 1
Circuito 2
