HYDRAULIC PULLER TENSIONER PT2450
Manual: MI-PT2450-050-00-GB Date: 28.07.2018 Author: AT Page: 57 of 89
5.1 CONNECTION MACHINE - HYDRAULIC HEAD OR REEL WINDER
Machine can feed 2 reel elevators with hydraulic head or 2 reel winders made by Tesmec, both functioning
as tensioner and puller.
Each hydraulic head (or each reel winder) has a connecting kit consisting of two pipes.
Each of these pipes has to be connected to the proper rapid coupler making care to connect them properly
(otherwise the installation will not work).

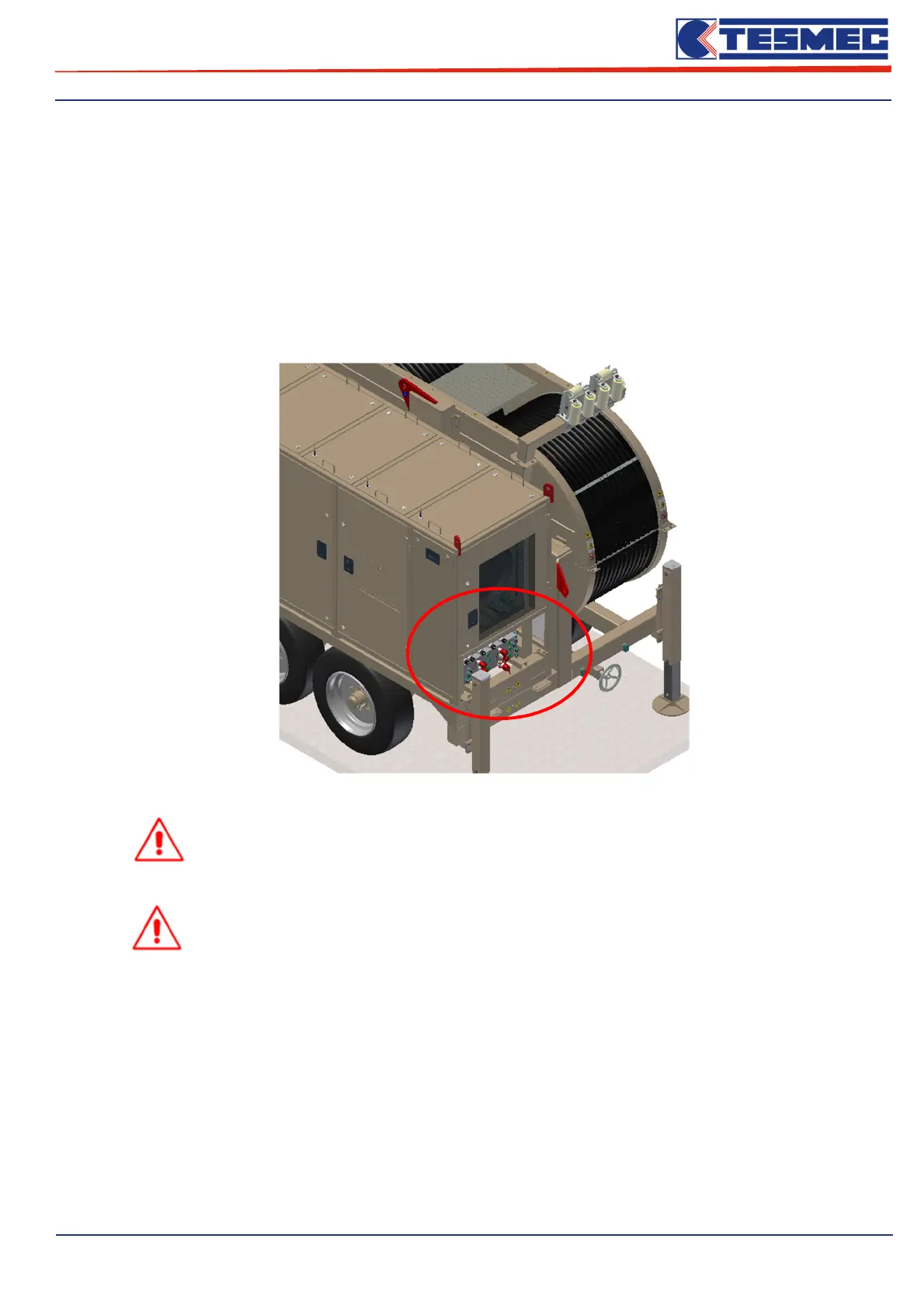

Connect the hoses of the reel elevators to the rapid couplers (tav. 7).
ATTENZION: it is important that, before connecting the rapid couplers, the
operator has checked their cleanliness as the introduction of dirt into the
hydraulic circuit can create very serious damages.
ATTENZION: The rapid couplers must be connected before putting the circuit
under pressure.
