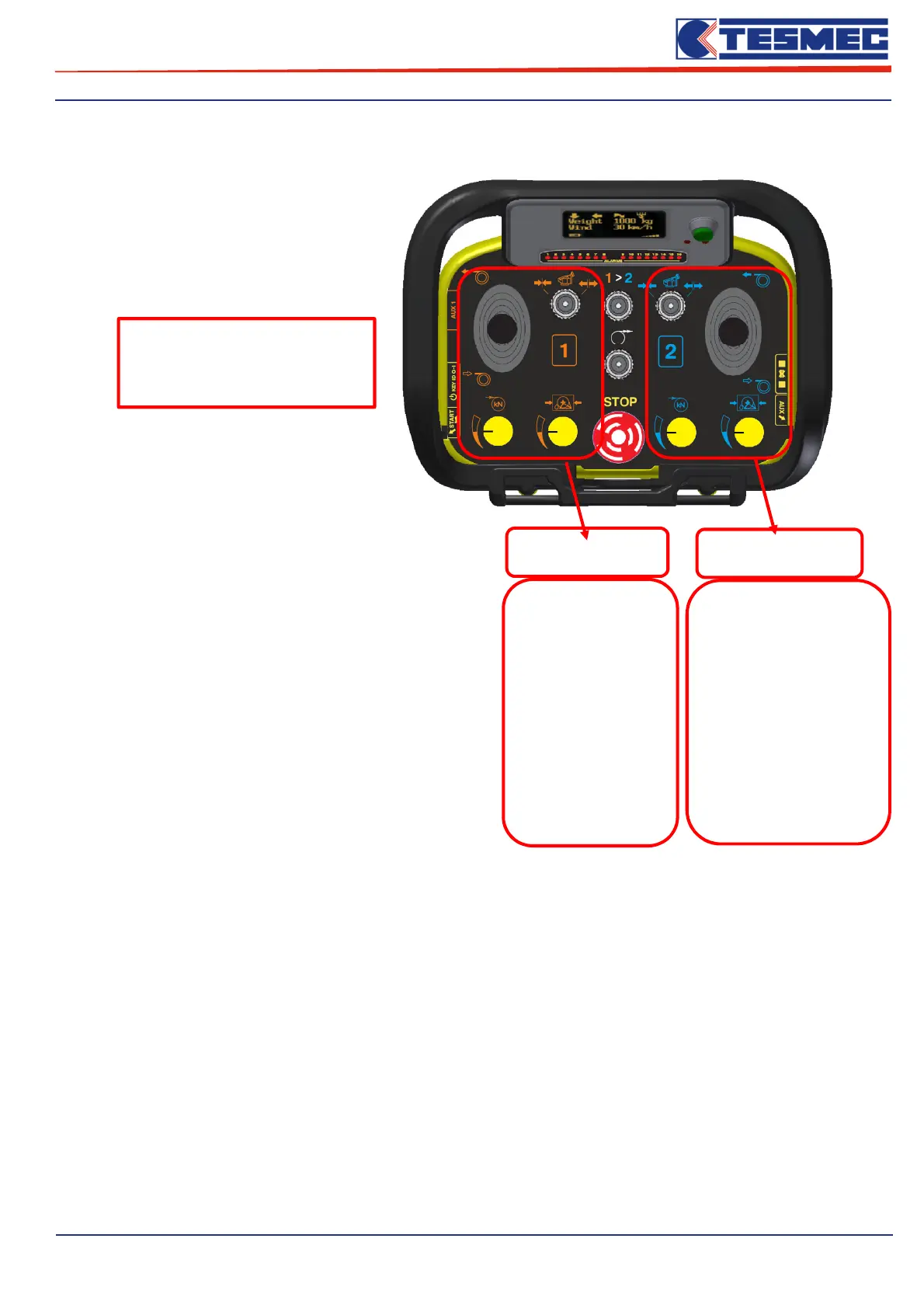

3- When the electronic connection is active, the remote commands will be distributed as follows (with
reference to Table 9):
Circuits control 1 Circuits control 2
Pos.1 e 8 – Recovery / Release
Inactive
Active
Move Circuits 1+2
Pos.3 e 10 – Pulling setting potentiometer
Inactive
Active
Move Circuits 1+2
Pos.4 e 9 –Pressure control on reel winder
Active
Only for circuit 1
Active
Only for circuit 2
Pos.5 e 12 – Rope clamp control
Inactive
Active
Move Circuits 1+2
4- To use the machine in electronic connection, follow the same steps as in chapter 5.9.
Manual Synchronization: When the electronic connection is active but no synchronization is inactive, the
operator can make a manual adjustment of the pull value set on circuit 1.
Through the circuit potentiometer 2 (pos.9 p.9) it is possible to set the pull force value on both circuits, while
with the circuit potentiometer 1 (pos.3 p.9) you can make a small adjustment on the force value of the same
circuit.
In this way, the operator can manually adjust the height of the conductors or rope, according to the line and
the various stretching operations that are being carried out.
RADIO REMOTE CONTROL
USE IN ELECTRONIC
CONNECTION
