HYDRAULIC PULLER TENSIONER PT2450
Manual: MI-PT2450-050-00-GB Date: 28.07.2018 Author: AT Page: 65 of 89

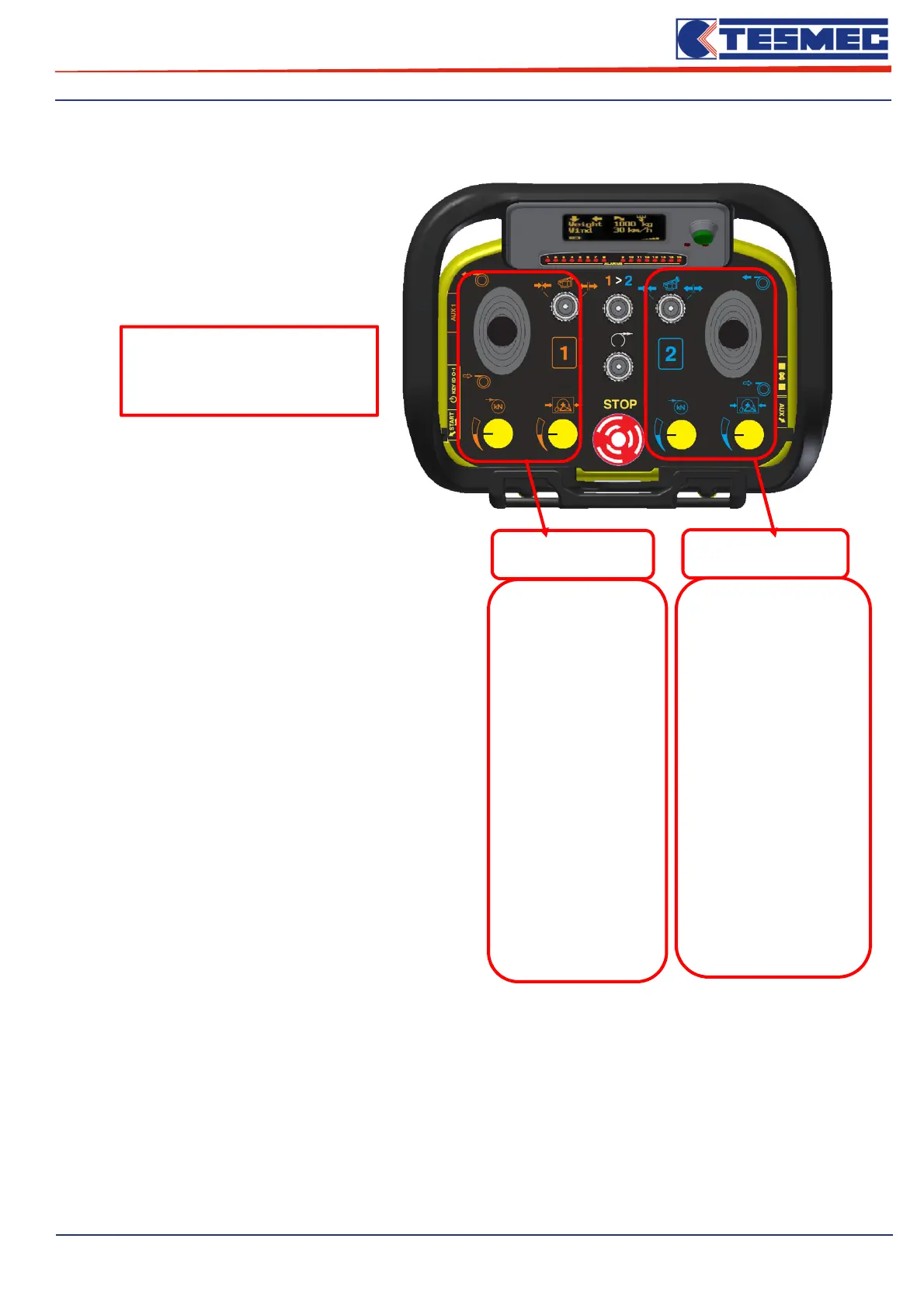

3- When the hydraulic and mechanical connection is active, the radio control commands will be distributed as
follows (with reference to Table 9):
Comandi circuito 1 Comandi Circuito 2
Pos.1 e 8 – Recovery / Release
Inactive
Active
Move Circuits 1+2
Pos.3 e 10 – Pulling setting potentiometer
Inactive
Active
Move Circuits 1+2
Pos.4 e 9 – Pressure control on reel winder
Active
Only for circuit 1
Active
Only for circuit 2
Pos.5 e 12 – Rope clamp control
Inactive
Active
Move Circuits 1+2
Pos.14 – Electronic Connection switch
Inactive Inactive
Pos.15 – Synchronization switch
Inactive Inactive
RADIO REMOTE CONTROL
USE IN MECHANICAL
CONNECTION
