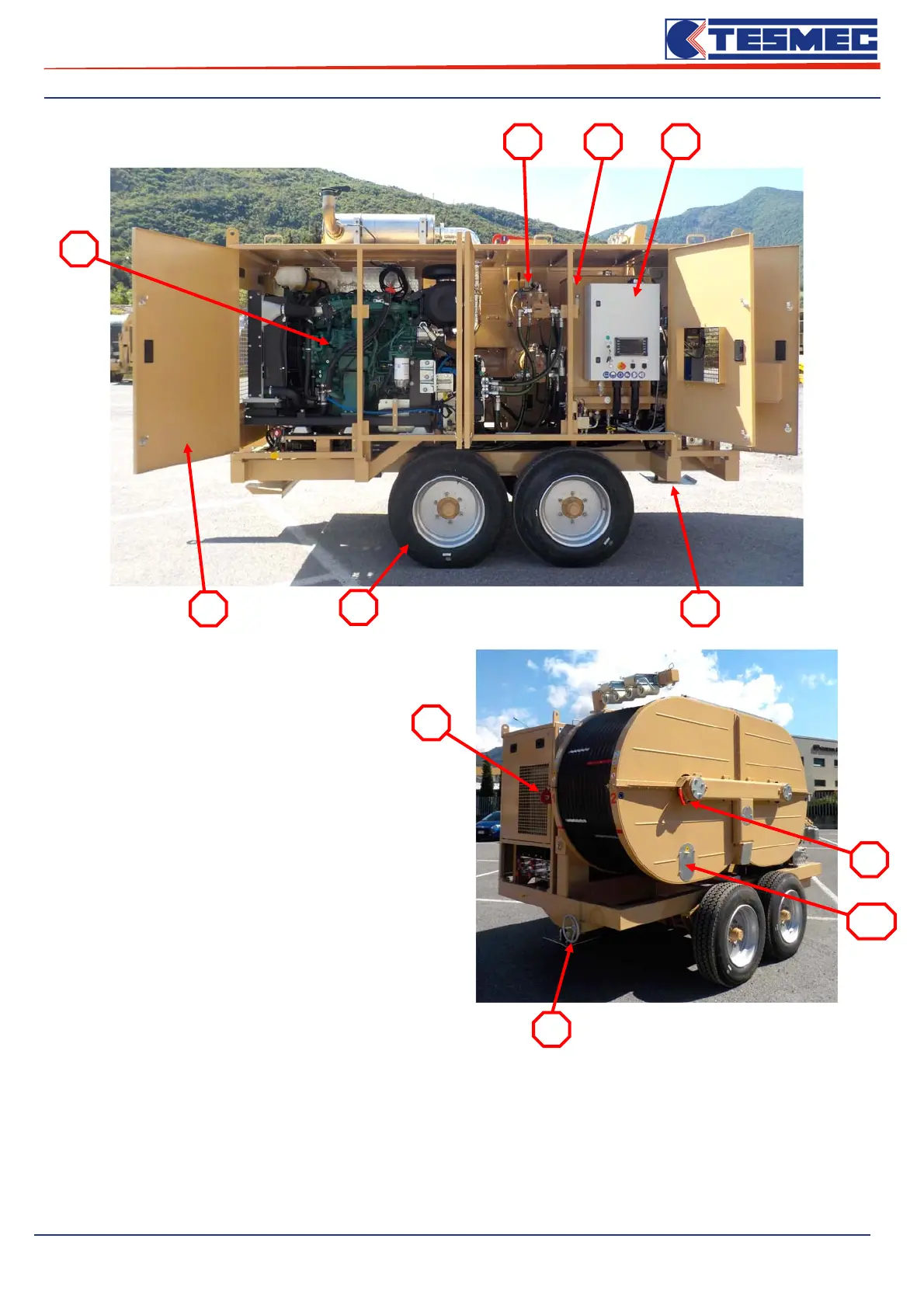

Tavola 3 – Power Unit Lateral View
1. Diesel engine
2. Bull-wheels gearbox;
3. Hydraulic oil tank;
4. Control panel;
5. Rear stabilizers;
6. Manual parking brake;
7. Tires;
8. Sound-absorbing cover panel;
9. Anchor machine point;
10. Window for mechanical connection pin of
the bull wheel;
9
9
10
6
5
7
8
1
2 3 4
