Testomat EVO TH CAL - Assembling the Testomat EVO TH CAL; EVO TH CAL Within a Pressure Range of 0.3 to 1; Assembly; Use of the Testomat

Assembly
13
Assembly
Hazard due to defective assembly!
 Assemble the Testomat
®
EVO TH CAL device in a location shield-
ed from drips and splashes of water, dust and aggressive sub-
stances – e.g. in a switching cabinet or on a suitable wall.
Notes for problem-free operating procedures
 Assemble the Testomat
®
EVO TH CAL device vertically and with-
out mechanical stresses.
 Assemble the Testomat
®
EVO TH CAL device in a location free of
vibration.
Assembling the Testomat
®
EVO TH CAL
Requirements for the installation site
Select an installation site at which the length of the water inlet hose
can be minimized (max. 5 m)
 Leave sufficient room on the left side of the device to open the
door.

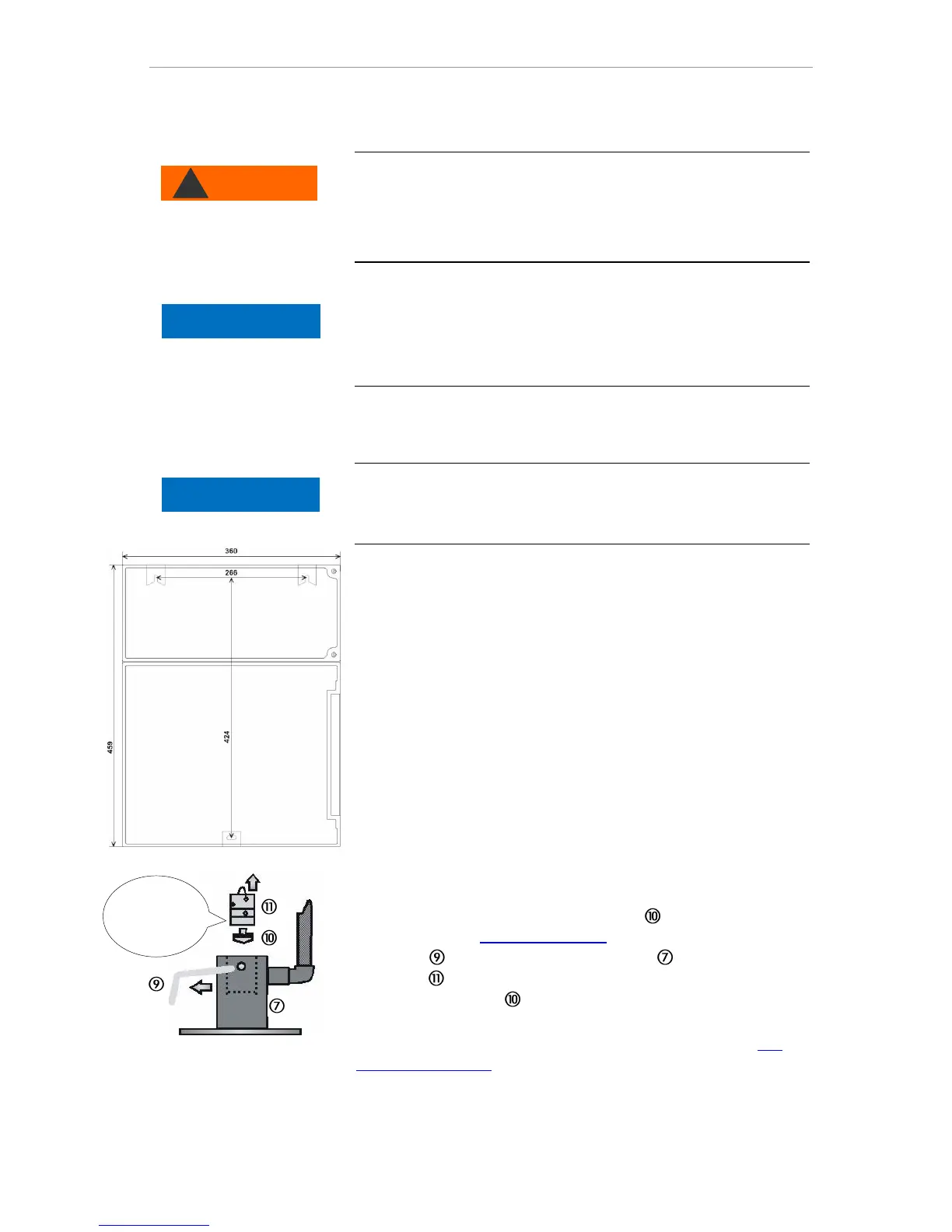

 Drill the mounting holes as specified in the accompanying sketch-
es.
 Secure the device with three screws in a suitable place in the
switching cabinet or on the wall.
Use of the Testomat
®
EVO TH CAL within a
pressure range of 0.3 to 1 bar
Before assembling please check whether adaptation to a lower work-
ing pressure is required. When delivered, the device is equipped for a
pressure range of 1 to 8 bar. To operate the device within a pressure
range of 0.3 to 1 bar, the flow governor core should be removed
(e.g. when using a type R mini irrigator). For this purpose, take the
locking pin from the controller/filter housing . Then pull the con-
troller plug on the metal brackets out of the drill hole. Then remove
the flow governor core and re-insert the controller plug and locking
pin.
At pressures under 0.3 bar or when sucking out of a tank, our Me-
puClip booster pump can be used.
Remove for a
pressure
range of 0.3
to 1 bar
WARNING
!
NOTE
NOTE
