Assembly
20

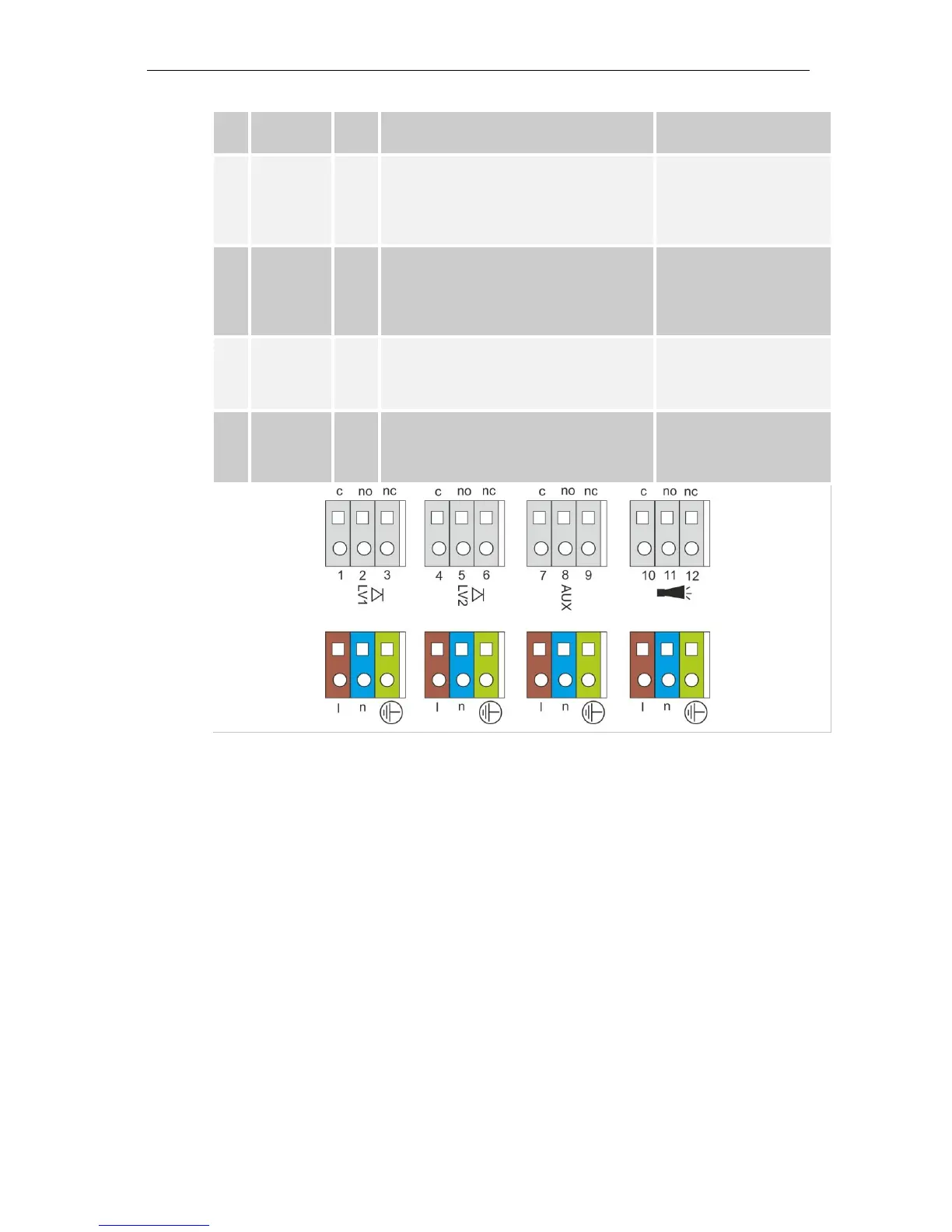

No.
Terminal
designation
Type
Function
Note
1
2
3
LV1
(limit value)
OUT
Limit value output 1 – root c
Limit value output 1 – closing contact
NO
Limit value output 1 – break contact NC
Floating relay output,
max. 240 VAC, 4 A
4
5
6
LV2
(limit value)
OUT
Limit value output 2 – root c
Limit value output 2 – closing contact
NO
Limit value output 2 – break contact NC
Floating relay output,
max. 240 VAC, 4 A
7
8
9
AUX
(auxiliaries)
OUT
Function output – root c
Function output – closing contact NO
Function output – break contact NC
Floating relay output,
max. 240 VAC, 4 A
10
11
12
Alarm
OUT
Fault signal output – root c
Fault signal output – closing contact NO
Fault signal output – break contact NC
Floating relay output,
max. 240 VAC, 4 A
