AS
=
Rtt
A1
A2
A3
AT
Vtt
A8
(A)
A8
(A)
A8
(A)
CACLMX
CACLMY
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
SPRS717H –OCTOBER 2011–REVISED MAY 2015
www.ti.com
7.7.2.3.6 Routing Specification
7.7.2.3.6.1 CK and ADDR_CTRL Routing Specification
Skew within the CK and ADDR_CTRL net classes directly reduces setup and hold margin and, thus, this
skew must be controlled. The only way to practically match lengths on a PCB is to lengthen the shorter
traces up to the length of the longest net in the net class and its associated clock. A metric to establish
this maximum length is Manhattan distance. The Manhattan distance between two points on a PCB is the
length between the points when connecting them only with horizontal or vertical segments. A reasonable
trace route length is to within a percentage of its Manhattan distance. CACLM is defined as Clock Address
Control Longest Manhattan distance.
Given the clock and address pin locations on the AM335x device and the DDR3 memories, the maximum
possible Manhattan distance can be determined given the placement. Figure 7-66 shows this distance for
two loads. It is from this distance that the specifications on the lengths of the transmission lines for the
address bus are determined. CACLM is determined similarly for other address bus configurations; that is,
it is based on the longest net of the CK and ADDR_CTRL net class. For CK and ADDR_CTRL routing,
these specifications are contained in Table 7-66.
A. It is very likely that the longest CK and ADDR_CTRL Manhattan distance will be for Address Input 8 (A8) on the
DDR3 memories. CACLM is based on the longest Manhattan distance due to the device placement. Verify the net
class that satisfies this criteria and use as the baseline for CK and ADDR_CTRL skew matching and length control.
The length of shorter CK and ADDR_CTRL stubs as well as the length of the terminator stub are not included in this
length calculation. Non-included lengths are grayed out in the figure.
Assuming A8 is the longest, CALM = CACLMY + CACLMX + 300 mils.
The extra 300 mils allows for routing down lower than the DDR3 memories and returning up to reach A8.

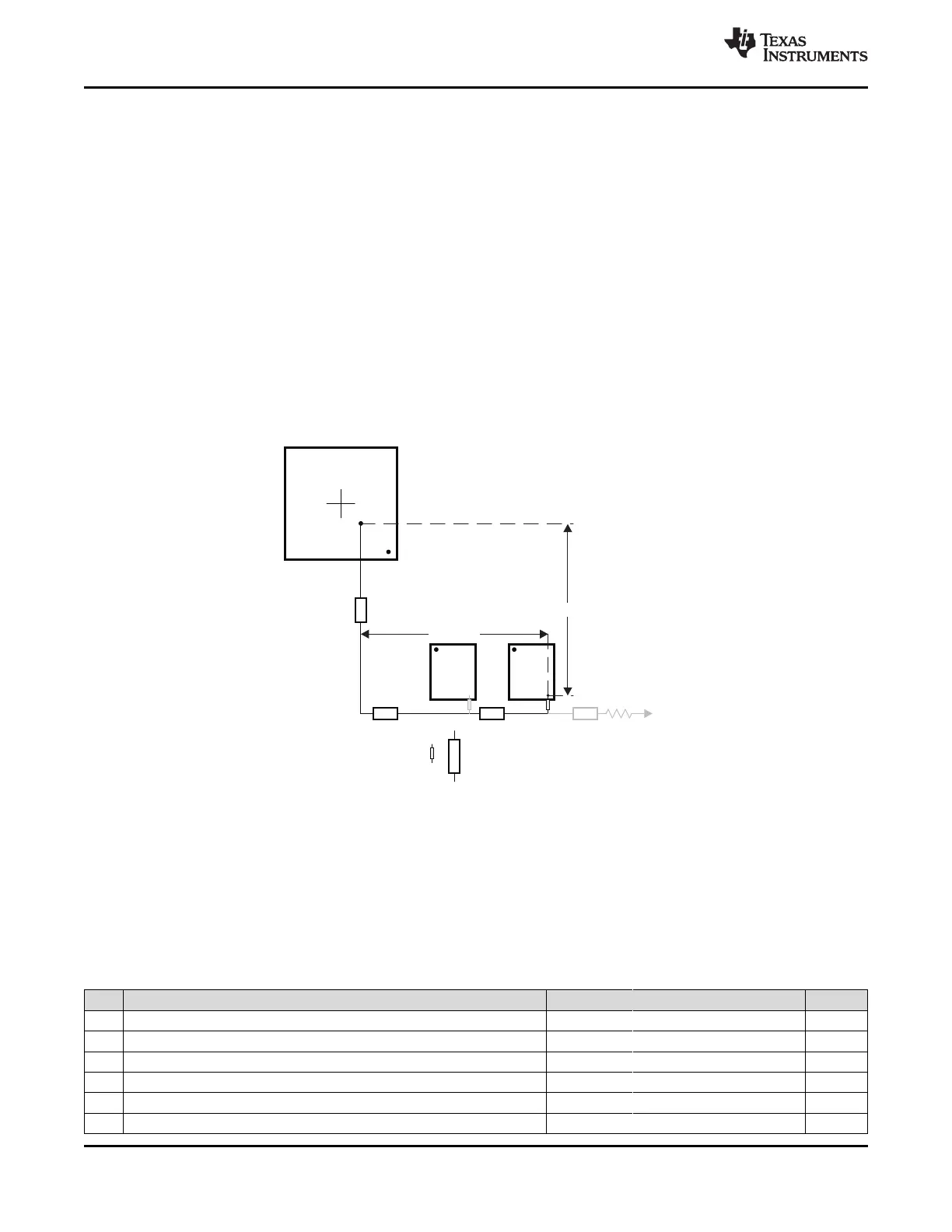

Figure 7-66. CACLM for Two Address Loads on One Side of PCB
Table 7-66. CK and ADDR_CTRL Routing Specification
(1)(2)(3)
NO. PARAMETER MIN TYP MAX UNIT
1 A1 + A2 length 2500 mils
2 A1 + A2 skew 25 mils
3 A3 length 660 mils
4 A3 skew
(4)
25 mils
5 A3 skew
(5)
125 mils
6 AS length 100 mils
