LCD_AC_BIAS_EN
(E0)
W_SU
(0 to 31)
W_STROBE
(1 to 63)
W_HOLD
(1 to 15)
CS_DELAY
(0 to 3)
LCD_MEMORY_CLK
4
Write Instruction
5
10
6
LCD_D [7:0]ATA
LCD_VSYNC
(RS)
LCD_HSYNC
(R/ )W
LCD_MEMORY_CLK
(E1)
6
7
10
11
6
6
7
8
8
9
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
www.ti.com
SPRS717H –OCTOBER 2011–REVISED MAY 2015
Table 7-75. Switching Characteristics for LCD LIDD Mode (continued)
(see Figure 7-72 through Figure 7-80)
OPP100
NO. PARAMETER UNIT
MIN MAX
11 t
t(LCD_HSYNC)
Transition time, LCD_HYSNC 1 10 ns
12 t
d(LCD_MEMORY_CLK-LCD_PCLK)
Delay time, LCD_MEMORY_CLK high to LCD_PCLK 0 7 ns
13 t
t(LCD_PCLK)
Transition time, LCD_PCLK 1 10 ns
Delay time, LCD_MEMORY_CLK high to
14 t
d(LCD_MEMORY_CLK-LCD_DATAZ)
0 7 ns
LCD_DATA[15:0] high-Z
Delay time, LCD_MEMORY_CLK high to
15 t
d(LCD_MEMORY_CLK-LCD_DATA)
0 7 ns
LCD_DATA[15:0] driven
19 t
t(LCD_MEMORY_CLK)
Transition time, LCD_MEMORY_CLK 1 2.5 ns
20 t
t(LCD_DATA)
Transition time, LCD_DATA 1 10 ns
A. Hitachi mode performs asynchronous operations that do not require an external LCD_MEMORY_CLK. The first
LCD_MEMORY_CLK waveform is only shown as a reference of the internal clock that sequences the other signals.
The second LCD_MEMORY_CLK waveform is shown as E1 since the LCD_MEMORY_CLK signal is used to
implement the E1 function in Hitachi mode.

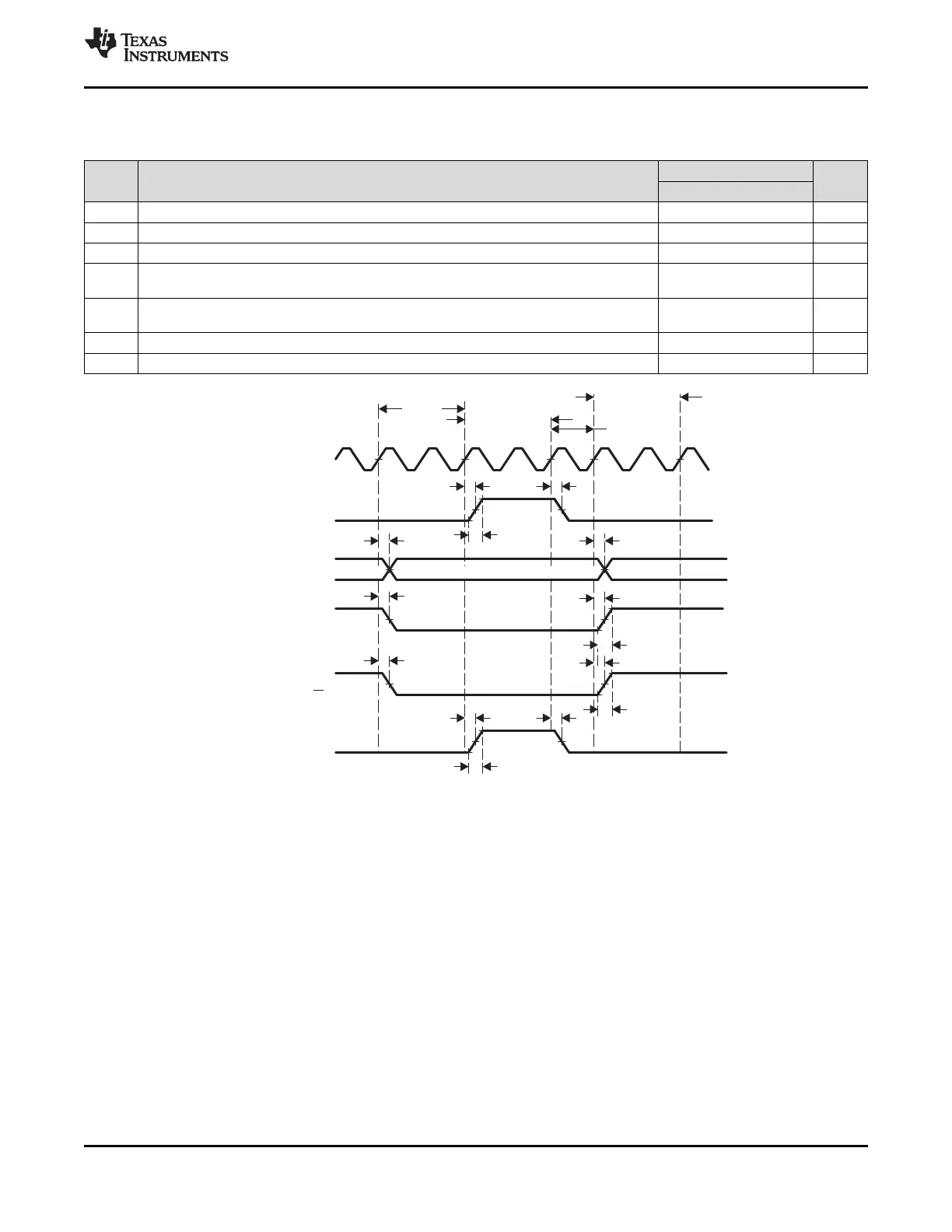

Figure 7-71. Command Write in Hitachi Mode
Copyright © 2011–2015, Texas Instruments Incorporated Peripheral Information and Timings 195
Submit Documentation Feedback
Product Folder Links: AM3359 AM3358 AM3357 AM3356 AM3354 AM3352
