The third PHY (connected to stacked RJ45 connector J21A ) is interfaced to the PRG1_RGMII1 port of the
SoC. ICSSG ports support internal multiplexing of GPI, GPO, RGMII, MII etc. The objective of this PHY used to
connect to this port is that it should support both RGMII and MII modes (without the use of CRS and COL signals
as they are multiplexed with the CPSW_RGMII1 used for the first PHY). Hence the same DP83869 (48pin) PHY
is used for this port as well.

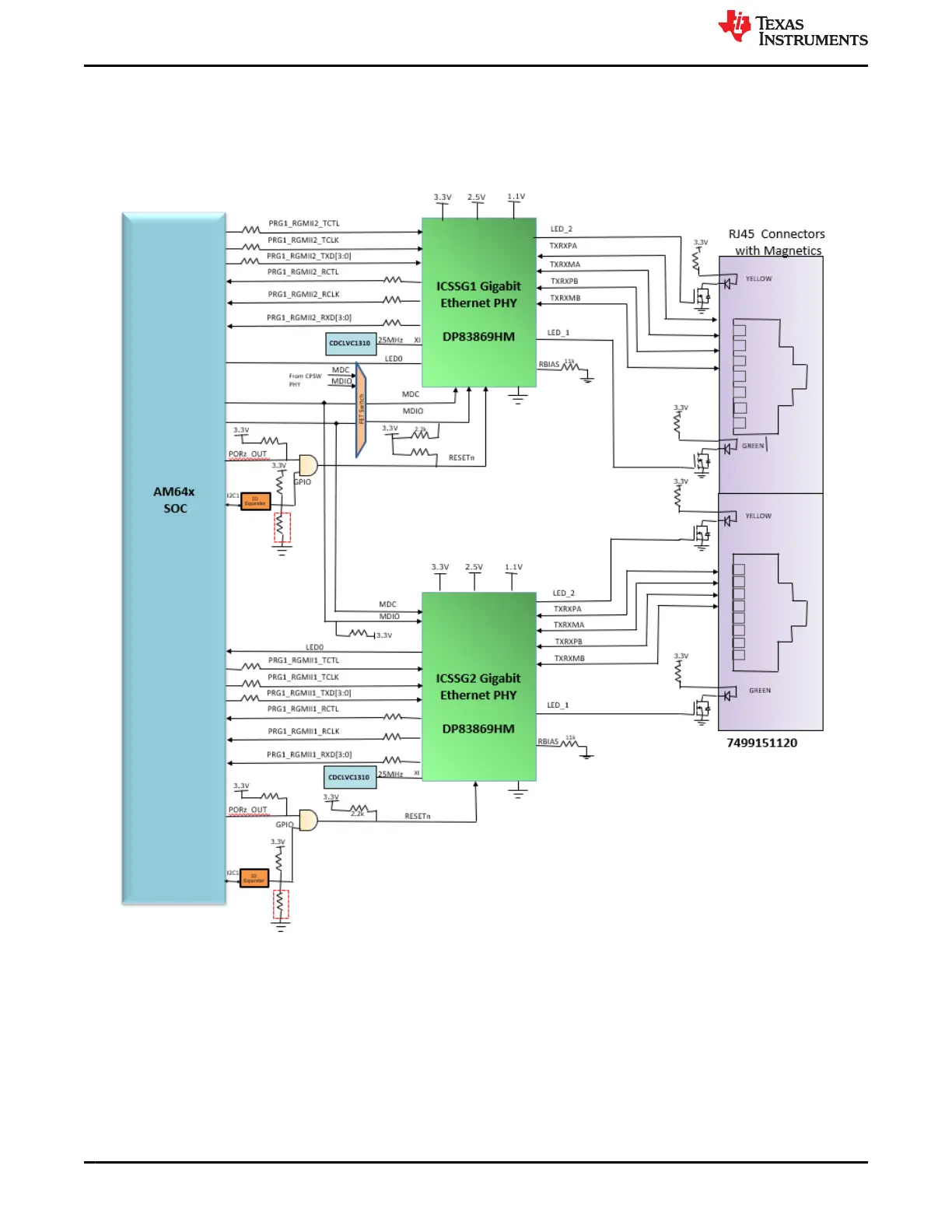

Figure 3-19. Ethernet Interface - ICSSG Domain
