DS90UB954-Q1EVM Quick Start
10.4 Startup - First Launch
Make sure all the software has been installed and the hardware is powered on and connected to the PC.
Execute “Analog LaunchPAD” shortcut from the start menu. The default start menu location is under All
Programs > Texas Instruments > Analog LaunchPAD vx.x.x > Analog LaunchPAD to start MainGUI.exe.

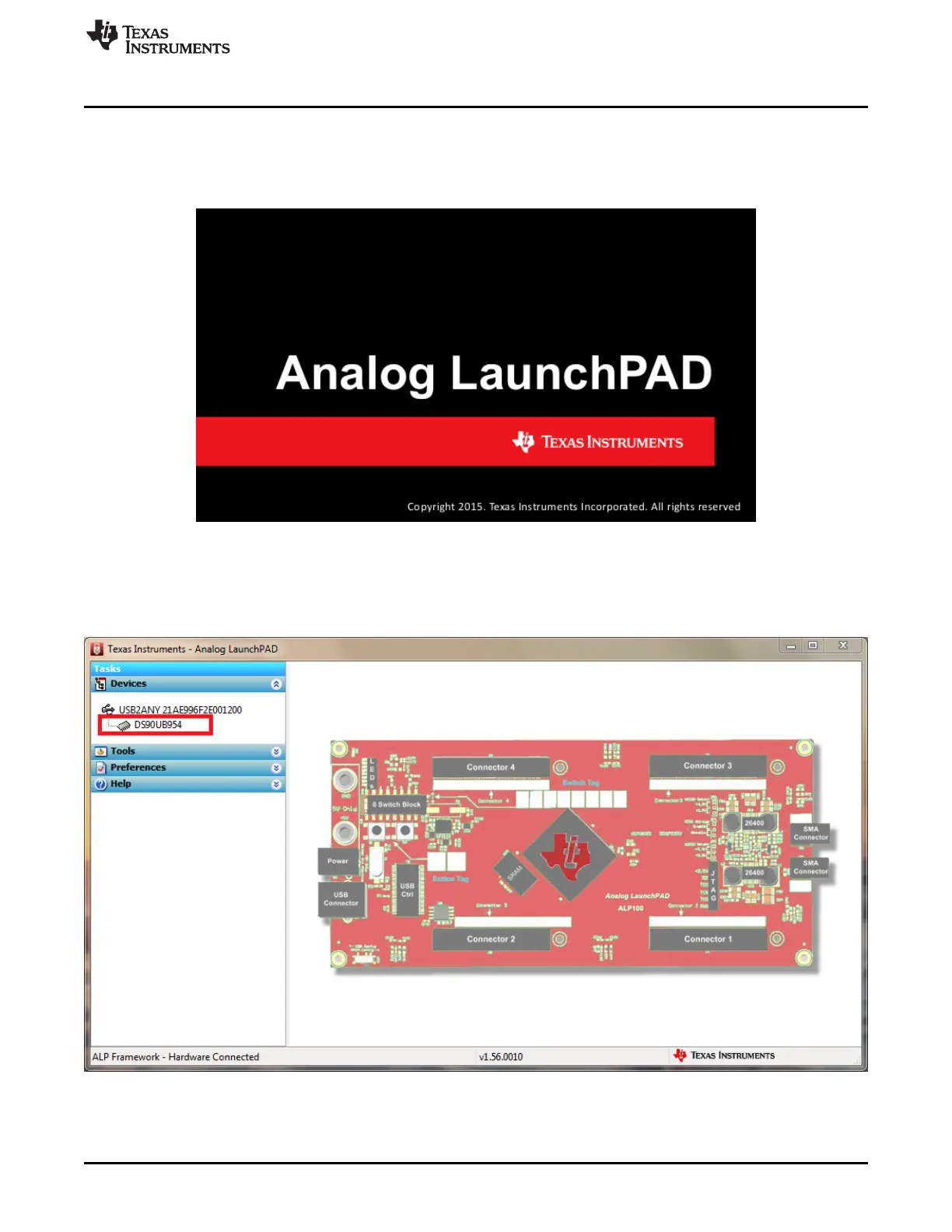

Figure 8. Launching ALP Splash Screen
Upon first launch of the Analog LaunchPAD utility, the default device will be DS90UB925. The active
device can be seen as highlighted in ,here showing the DS90UB954 as active. If the active device is
already set to DS90UB954 you may skip to .
Figure 9. Initial ALP Screen
