DS90UB954-Q1EVM Quick Start
11.3 Registers Tab - Address 0x00 Expanded
By double clicking on the Address bar
or a single click on . Address 0x00 expanded reveals contents by bits. Any register address displayed
can be expanded.

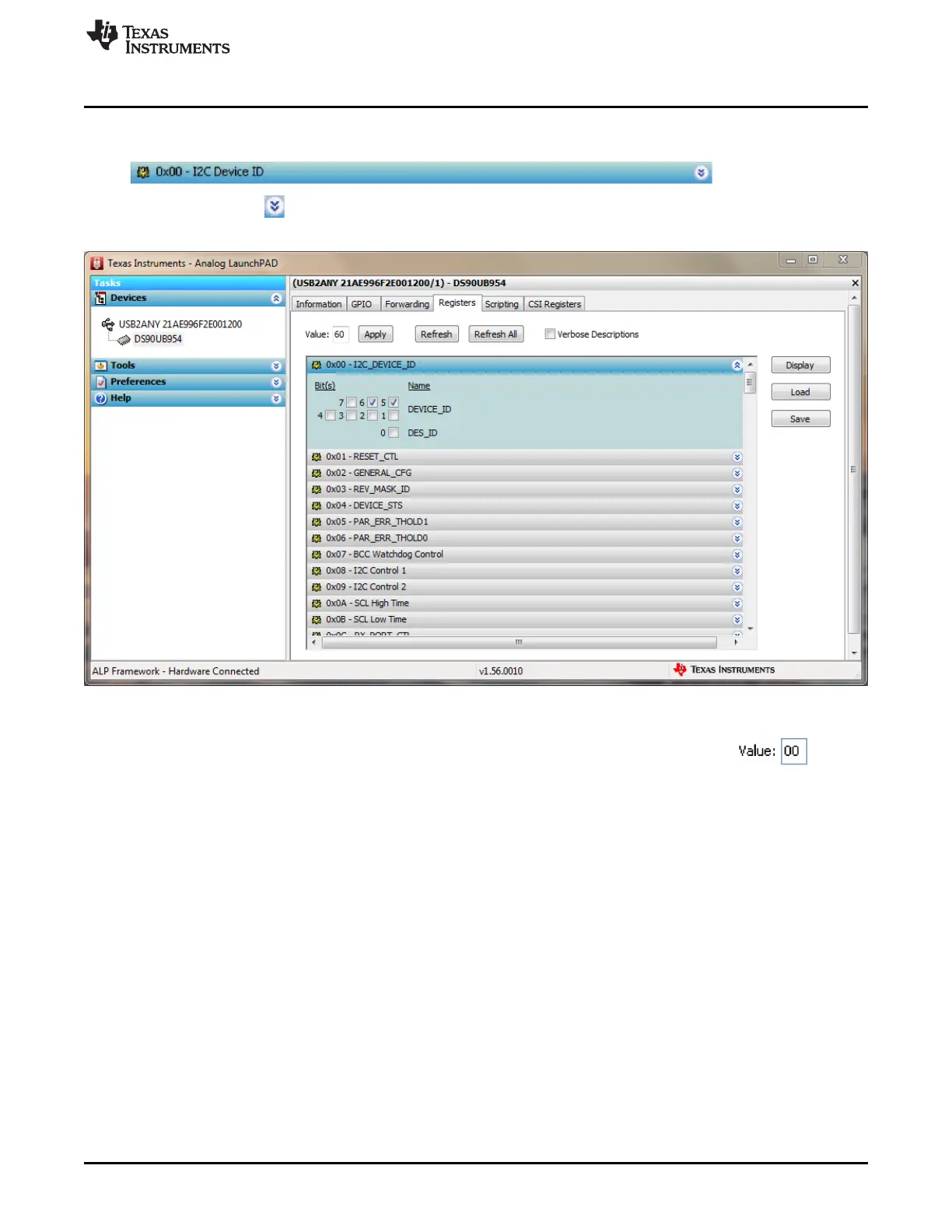

Figure 15. ALP Device ID Expanded
Any RW Type register can be written into by writing the hex value into the “Value:” box, or
putting the pointer into the individual register bit(s) box by a left mouse click to put a check mark
(indicating a “1”) or unchecking to remove the check mark (indicating a “0”). Click the “Apply” button to
write to the register, and “refresh” to see the new value of the selected (highlighted) register.
The box toggles on every mouse click.
