DS90UB954-Q1EVM Quick Start
11.2 Registers Tab
The Register tab is shown in Figure 14. Note that the value of the currently selected register is populated
in the "Value: " box at the top. Figure 14 shows the register I2C_DEVICE_ID is reading a hexidecimal
value of 0x60.

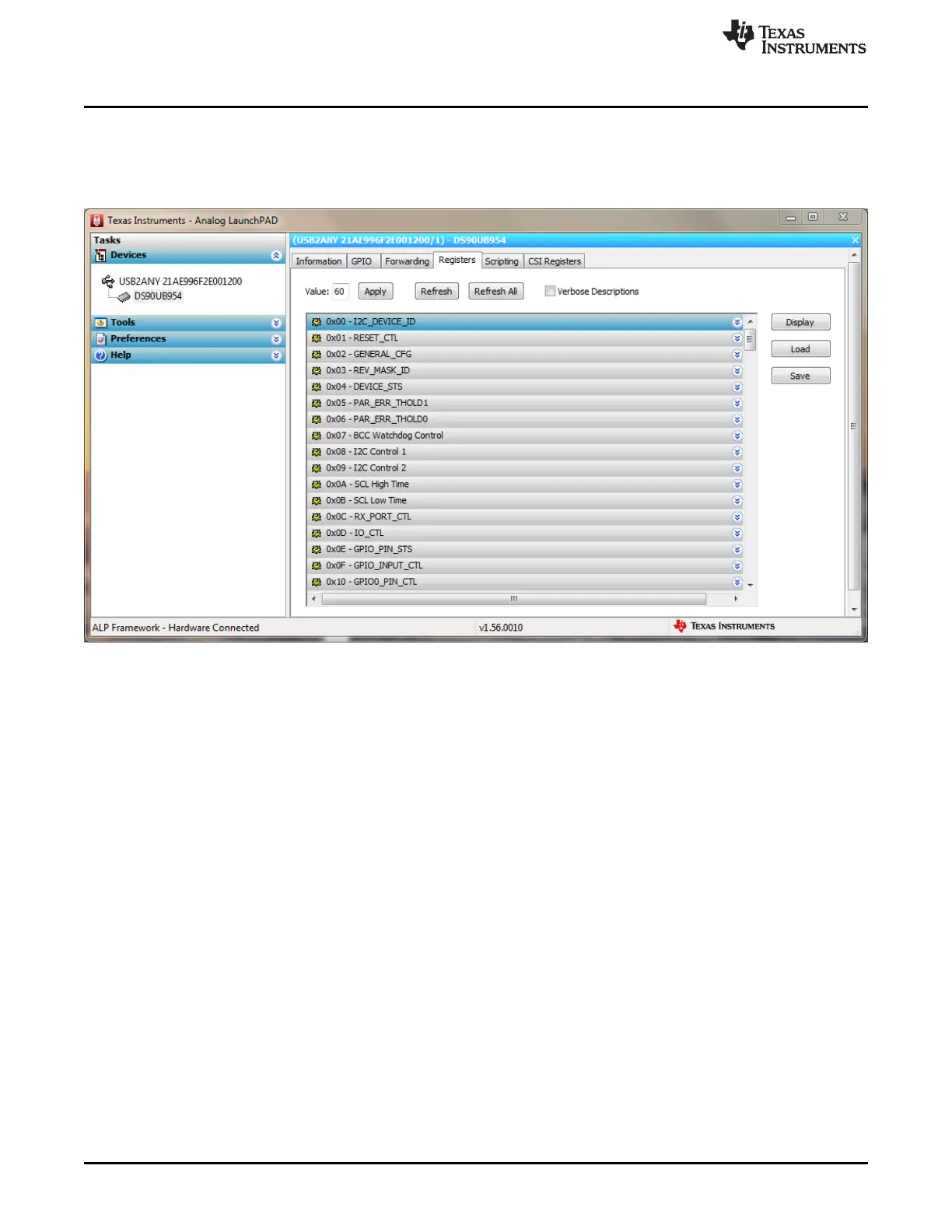

Figure 14. ALP Registers Tab
