DS90UB954-Q1
Deserializer
DS90UB933
Serializer
CSI-2
Tx Port
RAW 10/12
MIPI CSI-2
1.6 Gbps/lane X 4
Host / ISP
DS90UB953
Serializer
MIPI CSI-2
3.2 Gbps
Quick Start Guide www.ti.com
4
SNLU223–August 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
DS90UB954-Q1EVM Quick Start
2.1.2 Additional Required Components
To demonstrate the functionality of the DS90UB954-Q1, the following components are required (not
included):
• One DS90UB953-Q1EVM or DS90UB933-Q1EVM
• One DACAR/FAKRA coax cable
• USB to mini USB cable OR I
2
C host controller that support clock stretching (such as USB2ANY)
• Power supply for 12V @ 1A (current limited bench supply recommended)
• Optional: MIPI CSI-2 output analyzer or host processor

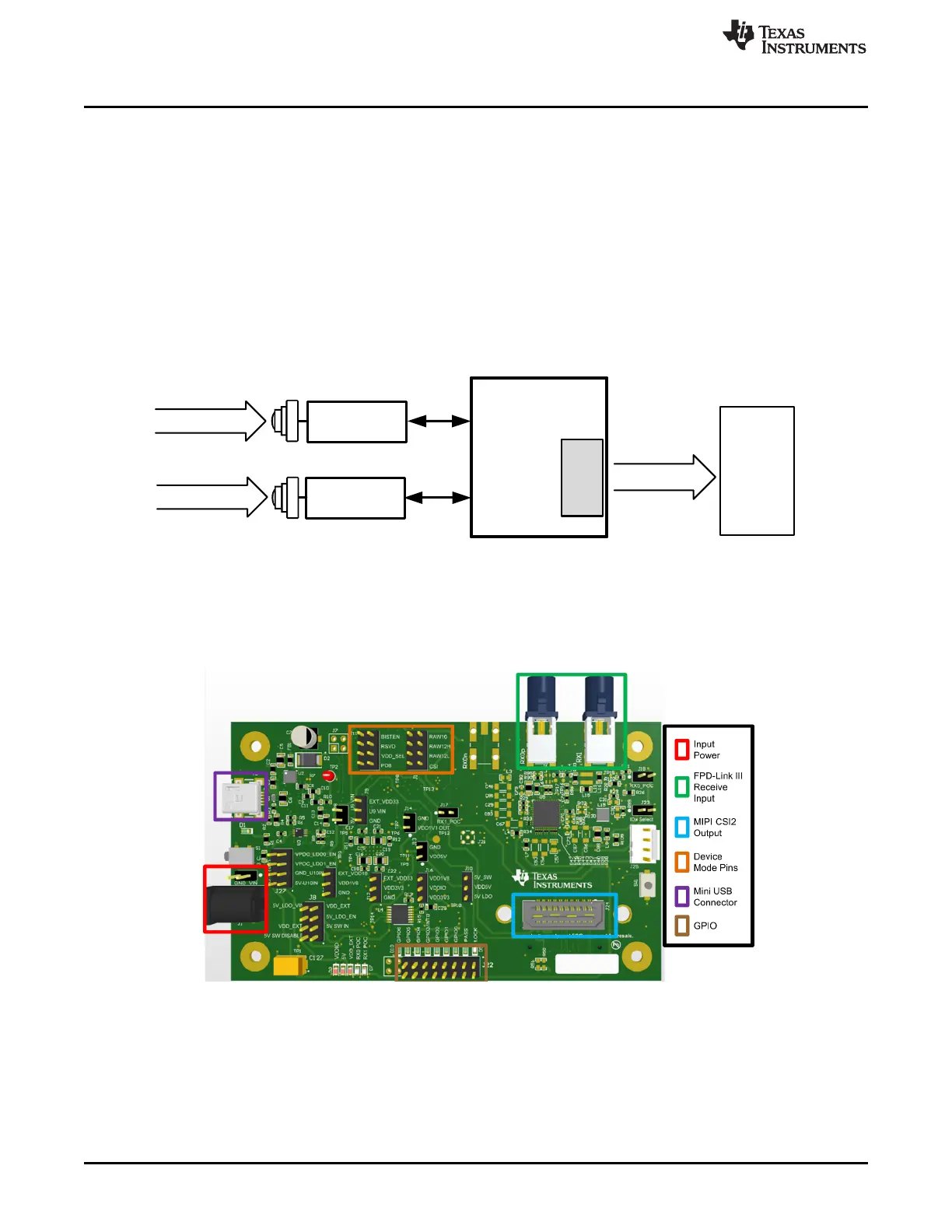

2.2 Applications Diagram
Figure 2. Applications Diagram
2.3 Major Components of DS90UB954-Q1EVM
Figure 3. Interfacing to the EVM
