RM46L852
SPNS185 –SEPTEMBER 2012
www.ti.com
4.21.5 JTAG Scan Interface Timings
Table 4-40. JTAG Scan Interface Timing
(1)
No. Parameter Min MAX Unit
fTCK TCK frequency (at HCLKmax) 12 MHz
fRTCK RTCK frequency (at TCKmax and HCLKmax) 10 MHz
1 td(TCK -RTCK) Delay time, TCK to RTCK 24 ns
2 tsu(TDI/TMS - RTCKr) Setup time, TDI, TMS before RTCK rise (RTCKr) 21 ns
3 th(RTCKr -TDI/TMS) Hold time, TDI, TMS after RTCKr 0 ns
4 th(RTCKr -TDO) Hold time, TDO after RTCKf 0 ns
5 td(TCKf -TDO) Delay time, TDO valid after RTCK fall (RTCKf) 10 ns
(1) Timings for TDO are specified for a maximum of 50pF load on TDO

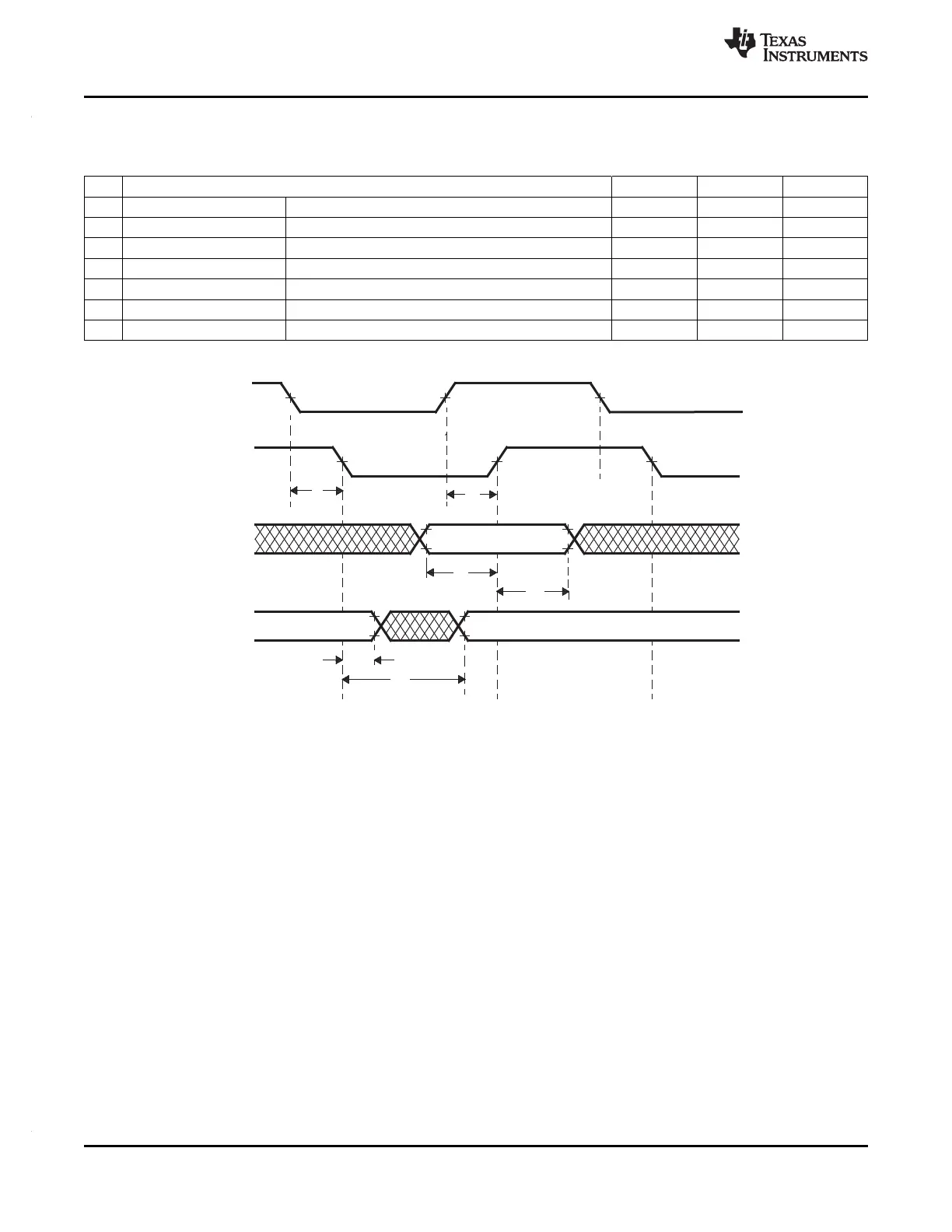

Figure 4-21. JTAG Timing
114 System Information and Electrical Specifications Copyright © 2012, Texas Instruments Incorporated
