RM46L852
www.ti.com
SPNS185 –SEPTEMBER 2012

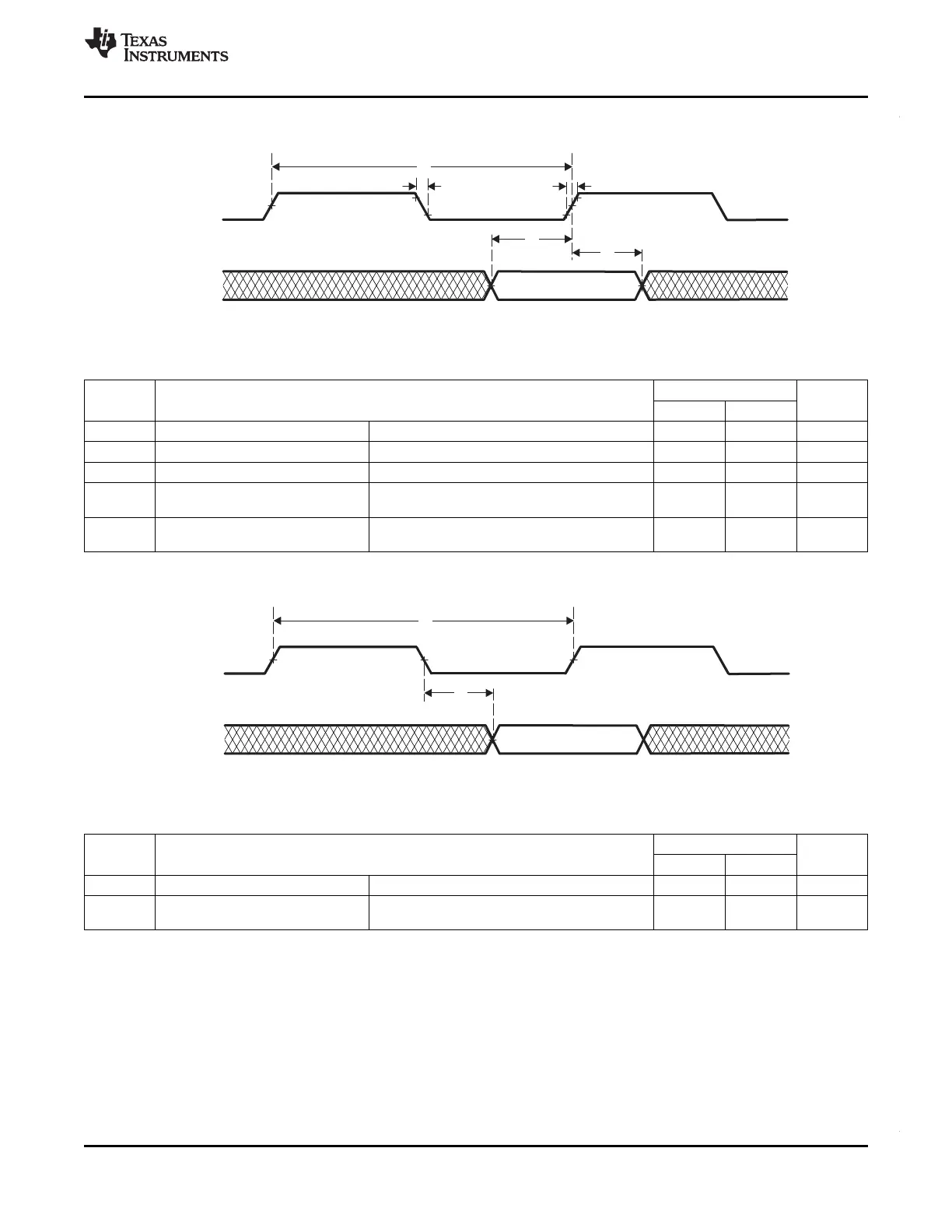

5.12.3 Management Data Input/Output (MDIO)
Figure 5-25. MDIO Input Timing
Table 5-39. MDIO Input Timing Requirements
NO. Parameter Value Unit
MIN MAX
1 tc(MDCLK) Cycle time, MDCLK 400 - ns
2 tw(MDCLK) Pulse duration, MDCLK high/low 180 - ns
3 tt(MDCLK) Transition time, MDCLK - 5 ns
4
(1)
tsu(MDIO-MDCLKH) Setup time, MDIO data input valid before MDCLK 10 - ns
High
5 th(MDCLKH-MDIO) Hold time, MDIO data input valid after MDCLK 10 - ns
High
(1) The minimum 10ns of setup time is dictated by the IEEE MDIO standard. This design does not meet this standard specification. The
actual required minimum setup time for MDIO data input valid before MDCLK high is 17 ns.
Figure 5-26. MDIO Output Timing
Table 5-40. MDIO Output Timing Requirements
NO. Parameter Value Unit
MIN MAX
1 tc(MDCLK) Cycle time, MDCLK 400 - ns
7 td(MDCLKL-MDIO) Delay time, MDCLK low to MDIO data output 0 100 ns
valid
Copyright © 2012, Texas Instruments Incorporated Peripheral Information and Electrical Specifications 163
Submit Documentation Feedback
