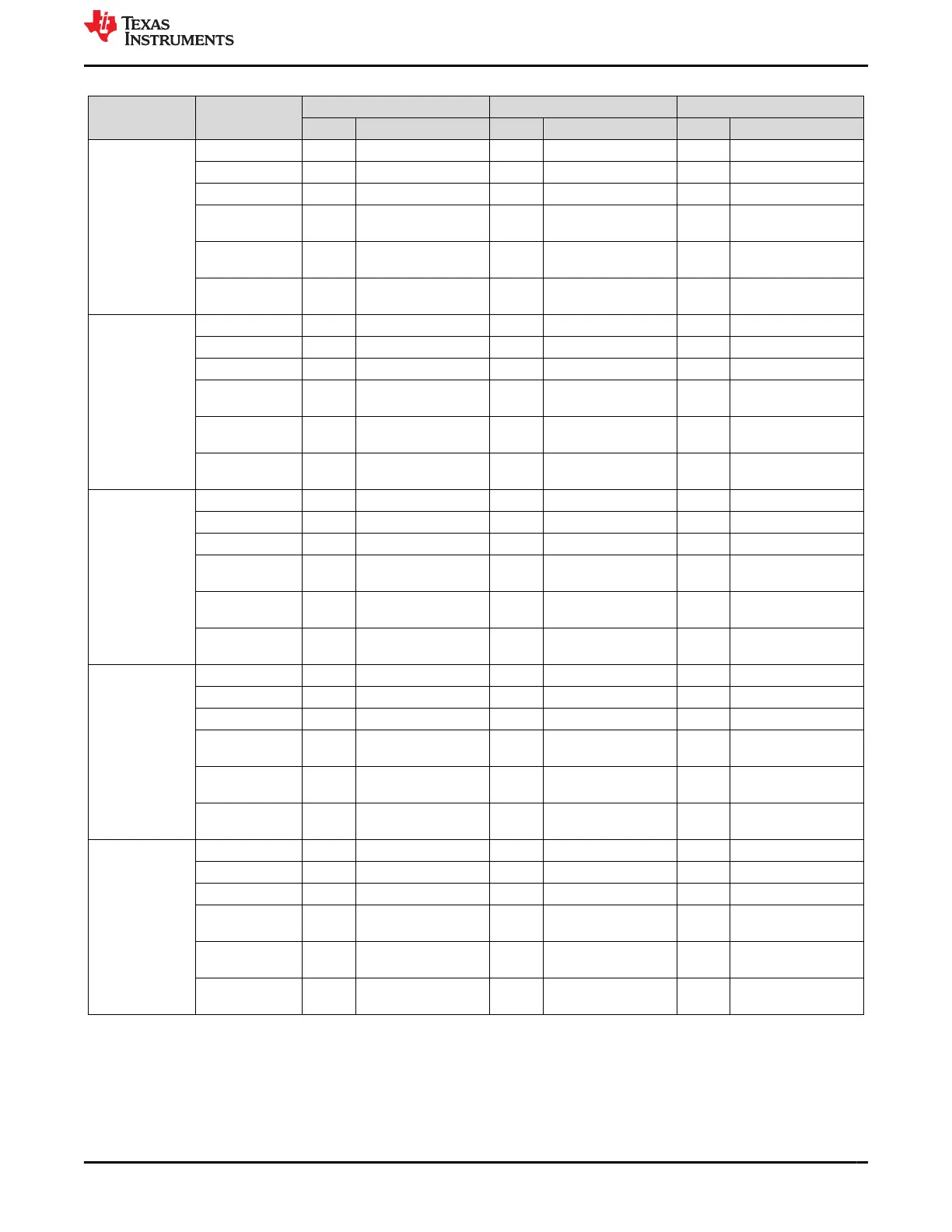

Table 5-6. GPIO NVM Settings (continued)
Register Name Field Name
TPS65941120-Q1 TPS65941421-Q1 LP876411B5-Q1
Value Description Value Description Value Description
GPIO3_CONF GPIO3_OD 0x0 Push-pull output 0x0 Push-pull output 0x0 Push-pull output
GPIO3_DIR 0x0 Input 0x1 Output 0x0 Input
GPIO3_SEL 0x2 NERR_SOC 0x0 GPIO3 0x0 GPIO3
GPIO3_PU_SEL 0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
GPIO3_PU_PD_
EN
0x1 Enabled; Pull-up/pull-
down resistor.
0x0 Disabled; Pull-up/pull-
down resistor.
0x1 Enabled; Pull-up/pull-
down resistor.
GPIO3_DEGLITC
H_EN
0x1 8 us deglitch time. 0x0 No deglitch, only
synchronization.
0x1 8 us deglitch time.
GPIO4_CONF GPIO4_OD 0x0 Push-pull output 0x1 Open-drain output 0x0 Push-pull output
GPIO4_DIR 0x0 Input 0x1 Output 0x0 Input
GPIO4_SEL 0x6 LP_WKUP1 0x0 GPIO4 0x0 GPIO4
GPIO4_PU_SEL 0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
GPIO4_PU_PD_
EN
0x1 Enabled; Pull-up/pull-
down resistor.
0x0 Disabled; Pull-up/pull-
down resistor.
0x1 Enabled; Pull-up/pull-
down resistor.
GPIO4_DEGLITC
H_EN
0x1 8 us deglitch time. 0x0 No deglitch, only
synchronization.
0x1 8 us deglitch time.
GPIO5_CONF GPIO5_OD 0x0 Push-pull output 0x0 Push-pull output 0x0 Push-pull output
GPIO5_DIR 0x1 Output 0x0 Input 0x0 Input
GPIO5_SEL 0x1 SCLK_SPMI 0x1 SCLK_SPMI 0x0 GPIO5
GPIO5_PU_SEL 0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
GPIO5_PU_PD_
EN
0x1 Enabled; Pull-up/pull-
down resistor.
0x0 Disabled; Pull-up/pull-
down resistor.
0x1 Enabled; Pull-up/pull-
down resistor.
GPIO5_DEGLITC
H_EN
0x0 No deglitch, only
synchronization.
0x0 No deglitch, only
synchronization.
0x1 8 us deglitch time.
GPIO6_CONF GPIO6_OD 0x0 Push-pull output 0x0 Push-pull output 0x0 Push-pull output
GPIO6_DIR 0x0 Input 0x0 Input 0x0 Input
GPIO6_SEL 0x1 SDATA_SPMI 0x1 SDATA_SPMI 0x0 GPIO6
GPIO6_PU_SEL 0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
GPIO6_PU_PD_
EN
0x1 Enabled; Pull-up/pull-
down resistor.
0x0 Disabled; Pull-up/pull-
down resistor.
0x1 Enabled; Pull-up/pull-
down resistor.
GPIO6_DEGLITC
H_EN
0x0 No deglitch, only
synchronization.
0x0 No deglitch, only
synchronization.
0x1 8 us deglitch time.
GPIO7_CONF GPIO7_OD 0x0 Push-pull output 0x0 Push-pull output 0x0 Push-pull output
GPIO7_DIR 0x0 Input 0x0 Input 0x0 Input
GPIO7_SEL 0x1 NERR_MCU 0x0 GPIO7 0x0 GPIO7
GPIO7_PU_SEL 0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
0x0 Pull-down resistor
selected
GPIO7_PU_PD_
EN
0x1 Enabled; Pull-up/pull-
down resistor.
0x1 Enabled; Pull-up/pull-
down resistor.
0x1 Enabled; Pull-up/pull-
down resistor.
GPIO7_DEGLITC
H_EN
0x1 8 us deglitch time. 0x1 8 us deglitch time. 0x1 8 us deglitch time.
www.ti.com Static NVM Settings
SLVUCJ9 – FEBRUARY 2023
Submit Document Feedback
TPS65941120-Q1, TPS65941421-Q1 and LP876411B5-Q1 PMIC User Guide
for J721S2, PDN-0A
21
Copyright © 2023 Texas Instruments Incorporated
