Thermal Dynamics 38 Cutmaster Service Manual

Manual 0-2898 4-9 TROUBLESHOOTING

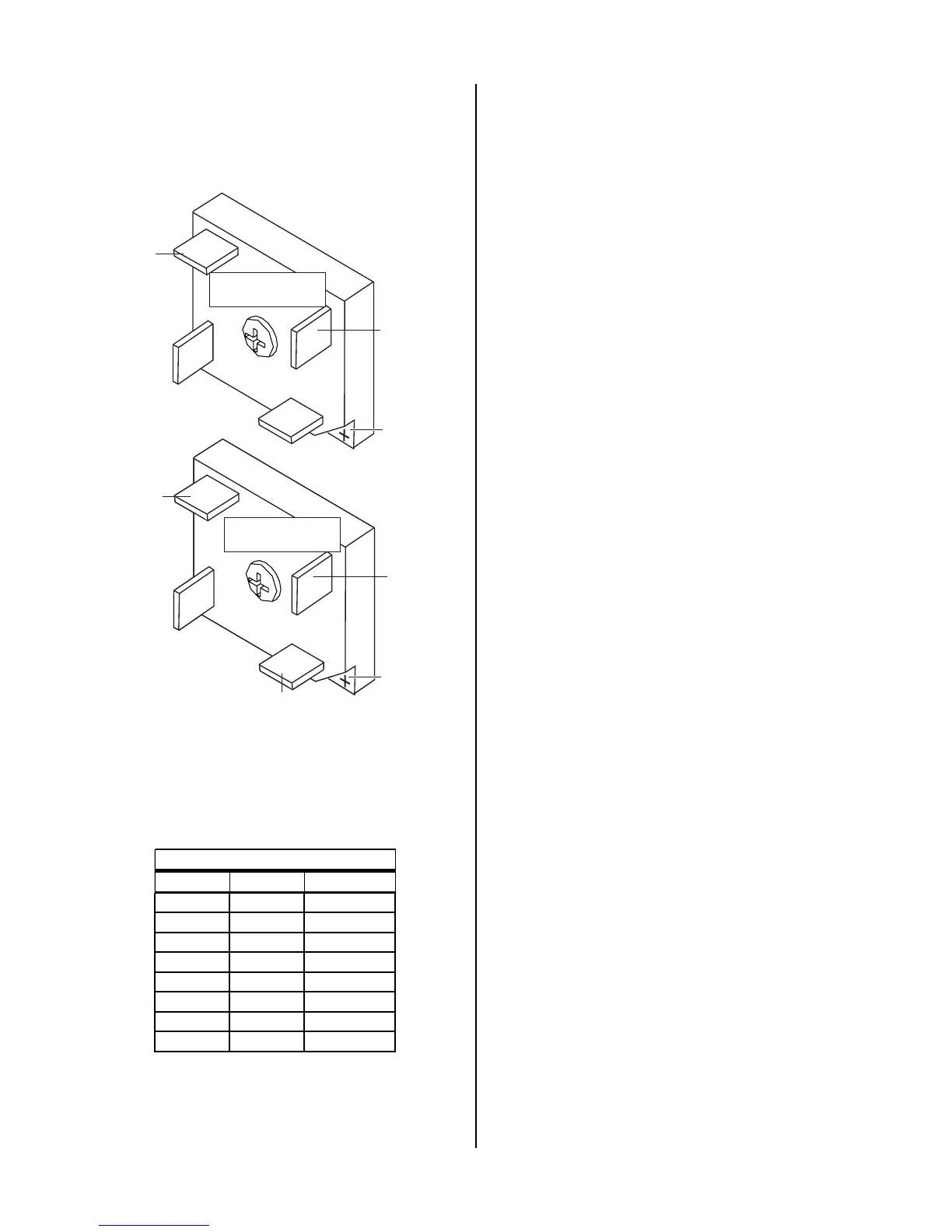

D. Diode Bridge Checks
Check for shorted Diode Bridges.
A-03508
E15B
E16B
E16A
E15A
E14A
E12A
+ Mark
E15B
E12B
E16B
E14B
Diode Bridge 1
Diode Bridge 2
+ Mark
Disconnect primary input power. With an ohmmeter set
on the diode range, make the following checks on both
diode bridges:
Meter (+) Meter (-) Indication
E16 E15 Diode Drop
E15 E16 Open
E16 E14 Diode Drop
E14 E16 Open
E14 E12 Diode Drop
E12 E14 Open
E15 E12 Diode Drop
E12 E15 Open
CutMaster 38 Diode Bridge Check
The meter should indicate a diode drop in one direction
and an open in the other direction for each check.
