APPENDIX A-8 Manual 0-2957

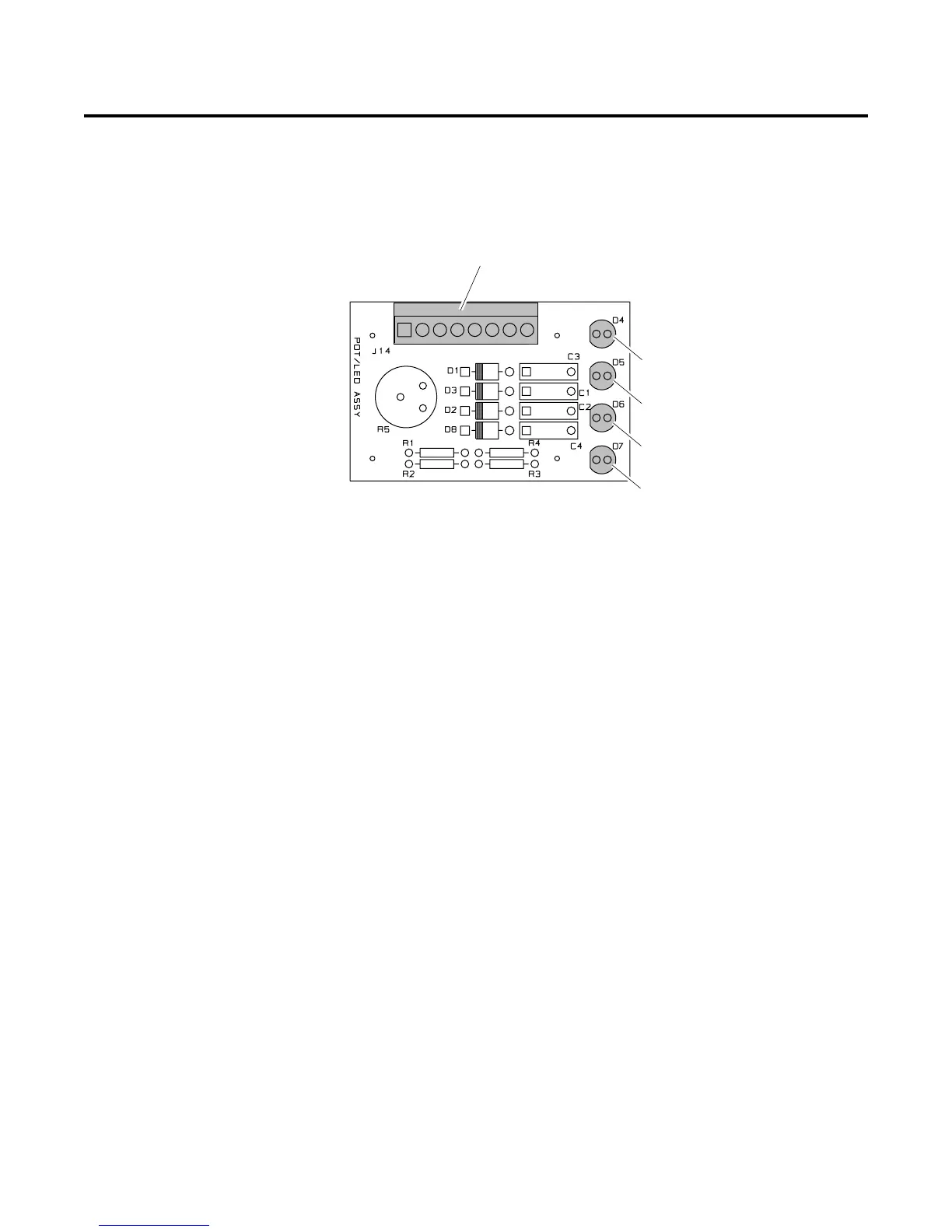

APPENDIX 6: LED/POT PC BOARD LAYOUT
Pot/LED PC Board Signals
J14-1 from Main PC Board (J27-1) Pot High
J14-2 Main PC Board (J27-2) Pot Wiper
J14-3 from Main PC Board (J27-3) Pot Low
J14-4 12vdc (J27-4)
J14-5 Logic Low Signal for AC OK Indicator from Logic PC Board (J27-5)
J14-6 Logic Low Signal for GAS Indicator from Logic PC Board (J27-6)
J14-7 Logic Low Signal for TEMP Indicator from Logic PC Board (J27-7)
J14-8 Logic Low Signal for DC Indicator from Logic PC Board (J27-8)
D4 Front Panel AC Indicator
D5 Front Panel TEMP Indicator
D6 Front Panel GAS Indicator
D7 Front Panel DC Indicator
J14
D4
D5
D7
D6
A-03712
