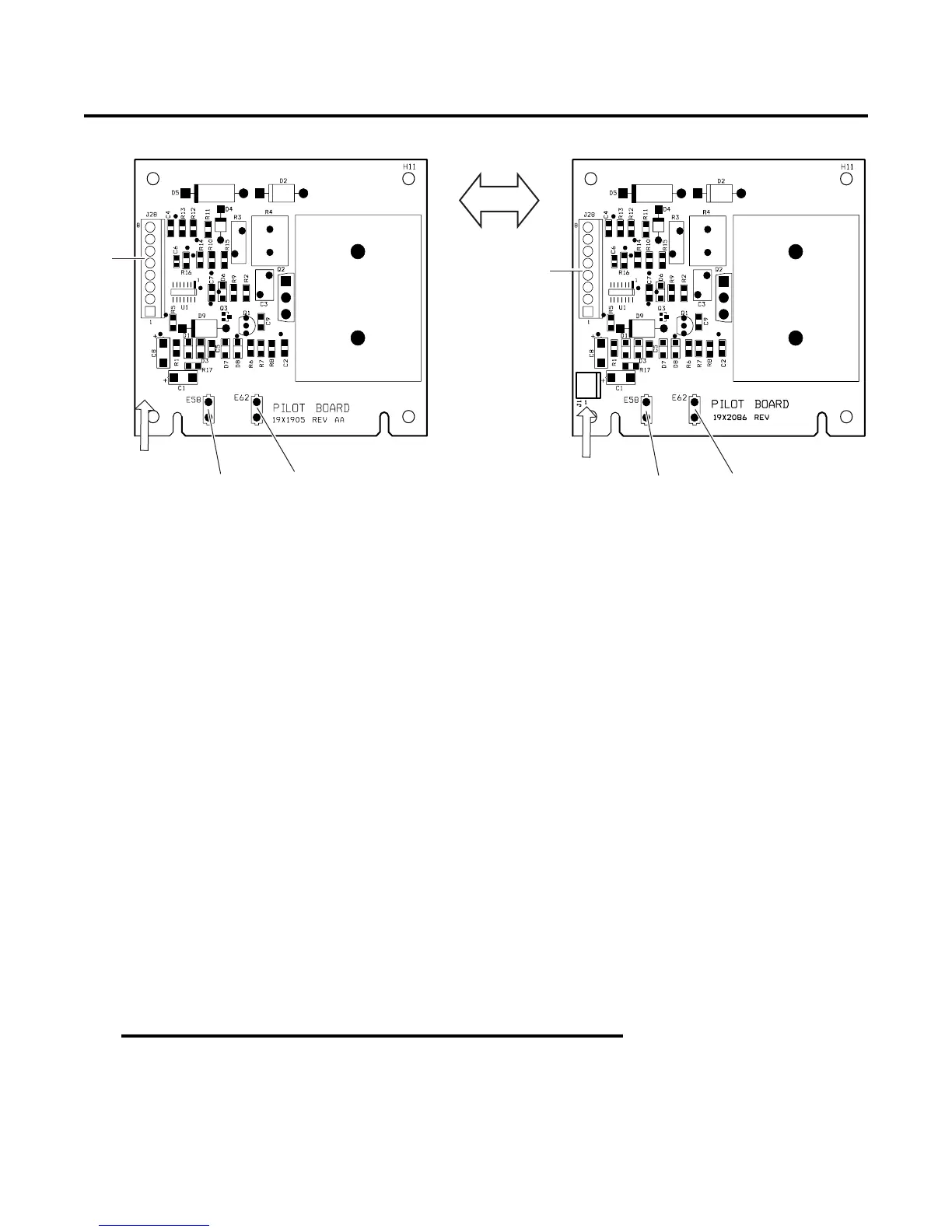

APPENDIX 11: PILOT PC BOARD LAYOUT
CD PC Board Signals
J28-1 +12 vdc
J28-2 DC Com
J28-3 Not Used
J28-4 Not Used
J28-5 Logic Low CSR
J28-6 Not Used
J28-7 Not Used
J28-8 Not Used
E58 To Power Output PC Board Terminal E58
E62 To Power Output PC Board Terminal E62
NOTES
1. Pilot PC Board with receptacle J1 may replace PC Board without receptacle J1.
2. Receptacle J1 is used only in automated applications.
2 - Pin
Receptacle (J1)
No Receptacle
E58
E62
J28
E58
E62
J28
Art # A-03881
OR
