cutmaster 102
Manual 0-4998 3-5 INSTALLATION
Installing Optional Single - Stage Air Filter
An optional lter kit is recommended for improved ltering with compressed air, to keep moisture and
debris out of the torch.
1. Attach the Single - Stage Filter Hose to the Inlet Port.
2. Attach the Filter Assembly to the lter hose.
3. Connect the air line to the Filter. The illustration shows typical ttings as an example.
NOTE
For a secure seal, apply Permatex PX56521 or equivalent thread sealant to the fitting threads, according to the
manufacturer’s instructions. Do not use Teflon tape as a thread sealer, as small particles of the tape may break off
and block the small air passages in the torch.
Art # A-07944
Hose Clamp
1/4 NPT to 1/4"
(6mm) Fitting
Regulator/Filter
Assembly
Inlet Port
Gas Supply
Hose

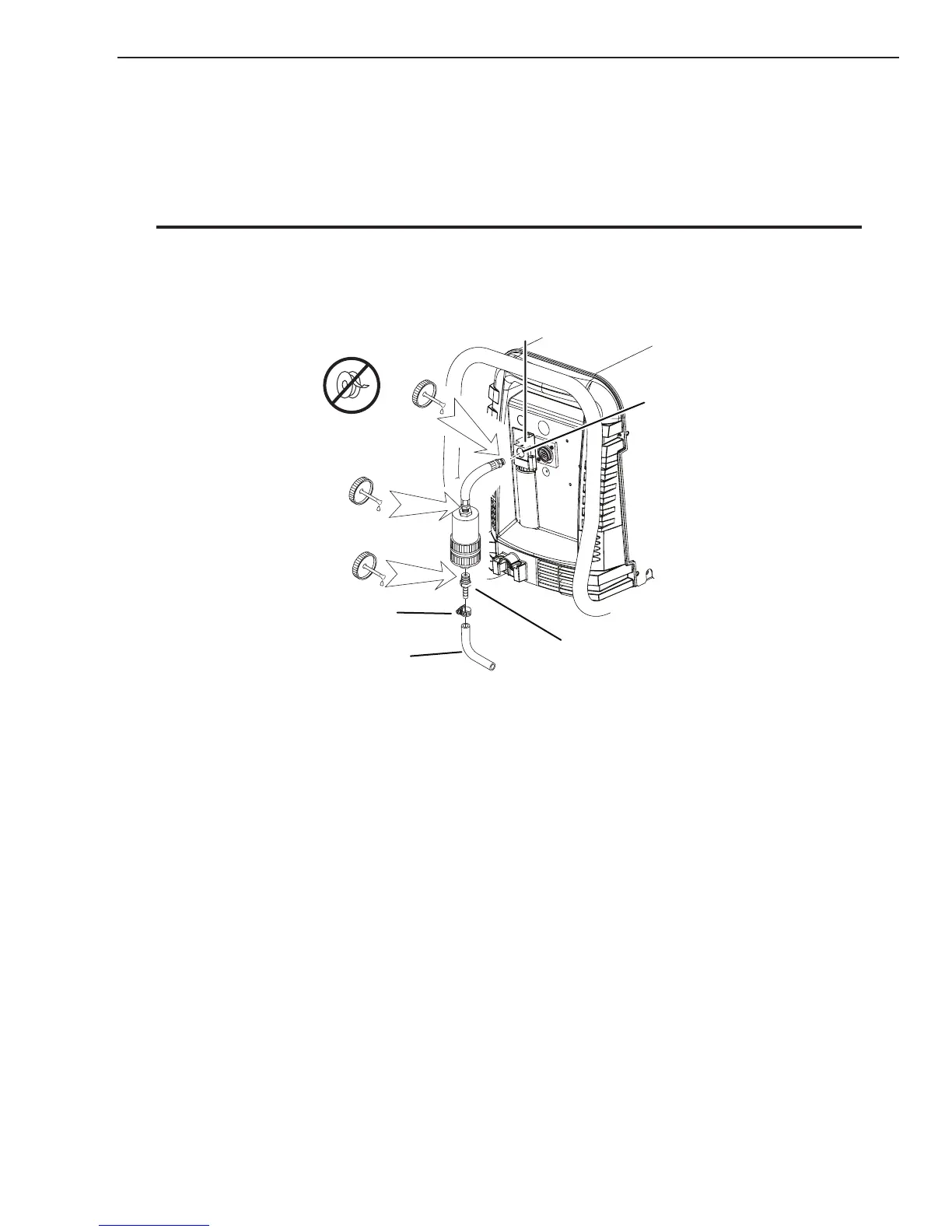

Optional Single - Stage Filter Installation
