cutmaster 39
INSTALLATION 2-4 Manual 0-4976
2.06 Power Supply Options and Accessories
The following options and accessories are available for this Power Supply. Section 6 provides catalog
numbers and ordering information.
A. Single-Stage Air Filter Kit
A single-stage air filter for use on compressed air shop systems. Highly effective at removing moisture and
particulate matter from the air stream to at least 0.85 microns.
B. Multi-Purpose Cart
Rugged steel cart on easy-rolling rear wheels and front-mounted swivel casters. Provides maximum mobil-
ity for the power supply and can also serve as a display cart. Top shelf is 12 " (305 mm) x 20 (508 mm). Steel
handle is 30" (762 mm) high.
C. Cutting Guide Kit
Easy add-on attachments for straight line, circle, or bevel cutting.
2.07 Torch Specifications

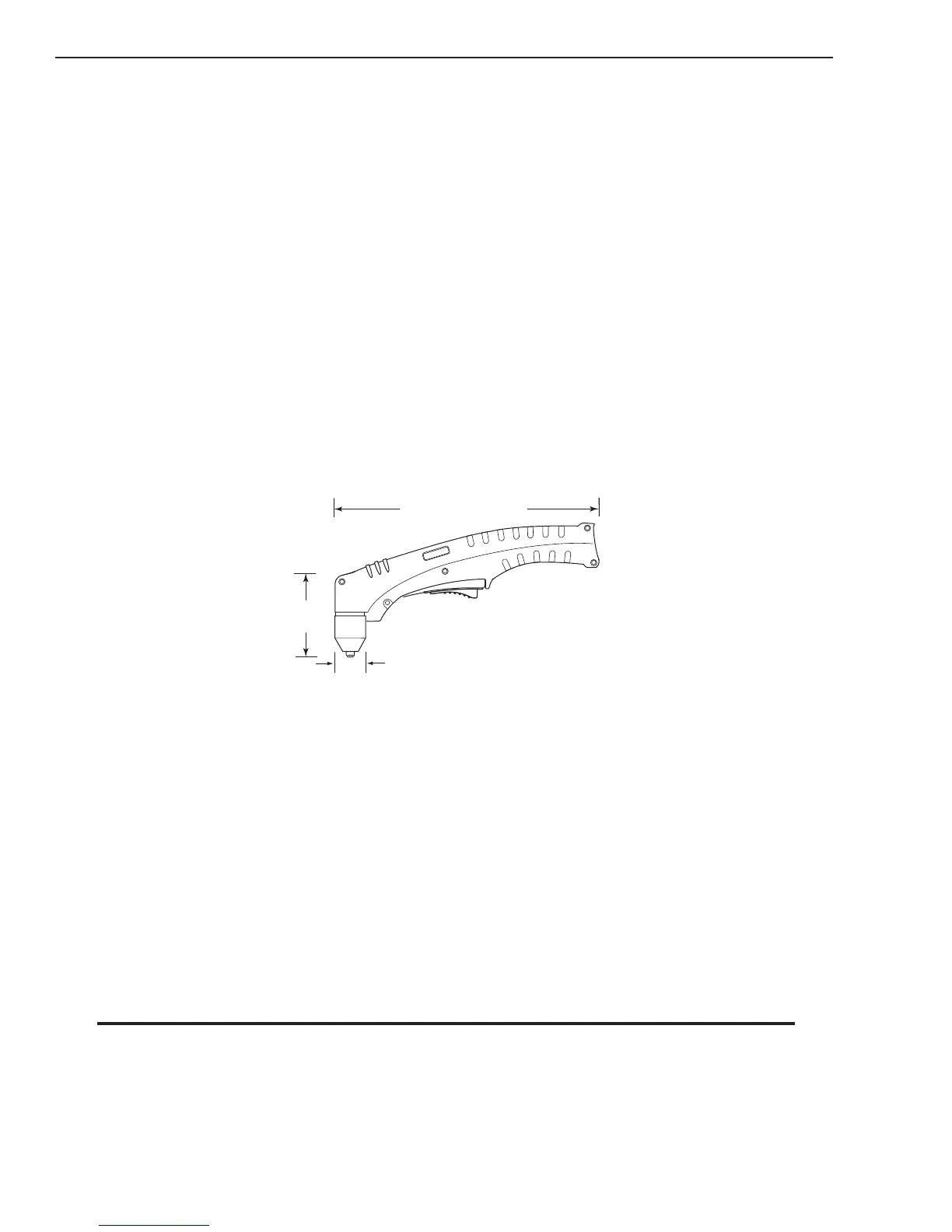

A. Torch Configuration and Dimensions
The torch head is at 75° to the torch handle. The torch includes a torch handle and torch trigger assembly.
10.125" (257 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322_AB
Torch Configuration and Dimensions
B. Torch Leads Lengths
Leads are available in 20 ft (6.1 m) lengths.
C. Parts-In-Place (PIP)
Torch has built-in switch.
12 vdc circuit rating
D. Type of Cooling
Combination of ambient air and gas stream through torch
E. SL60 Torch Ratings (Refer to Note)
NOTE
Ratings shown apply to the SL60 Torch only. Refer to the Specifications chart on page 2T-1 for CutMaster 39
data.
F. Plasma Power Supply Used With
• Thermal Dynamics CutMaster 39
