Manual 0-4976 6-5 PARTS LISTS

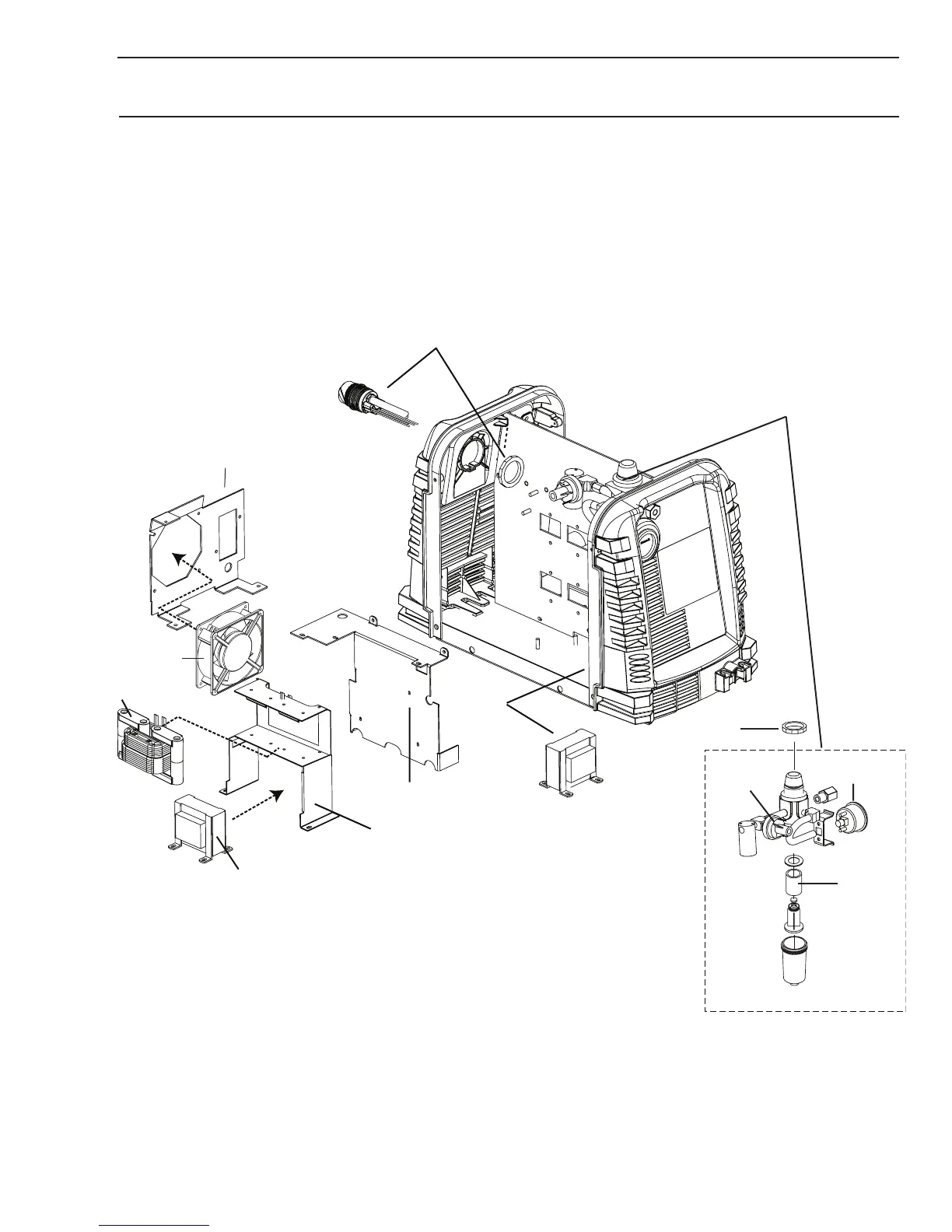

6.08 Right Side Replacement Parts
Item # Qty Description Ref Catalog #
1 1 Console ATC Assembly 9-8641
2 1 Regulator/Filter Assembly (includes Pressure Switch, 9-0180
Pressure Gauge, Solenoid)
3 1 Pressure Gauge 9-0181
4 1 Pressure Switch PS1 9-1044
5 1 Regulator/Filter Replacement Element 9-0182
6 1 Regulator Mounting Nut 9-0183
7 1 Assembly, Output Inductor L1 9-8626
8 1 PFC Choke 9-8627
9 1 Main Transformer Assembly T3 9-8625
10 1 Fan M1 9-8639
1
10
Fan Panel
3
5
4
6
2
7
8
9
Transformer Bracket
Fan Shroud
Art # A-08111
