CUTMASTER 58
Manual 0-5544 INSTALLATION
3T-1
SECTION 3 TORCH:
INSTALLATION
3T.01 Torch Connections
If necessary, connect the torch to the Power Supply. Connect
only the ESAB model SL60, SL60QD™ or SL100 / Mechanical
Torch to this power supply. Maximum torch leads length is 100
feet / 30.5 m, including extensions.
WARNING
Disconnect primary power at the source before con-
necting the torch.

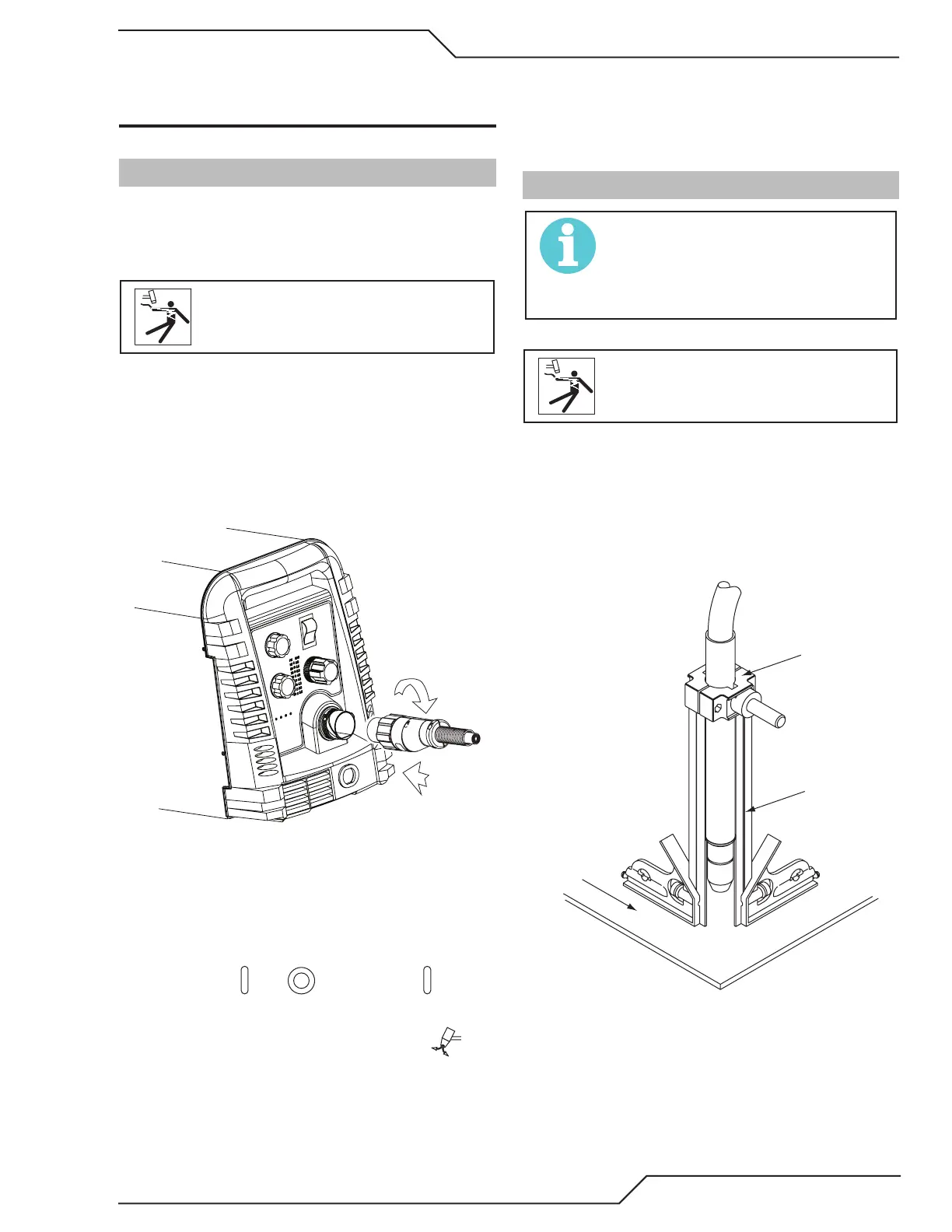

1. Align the ATC male connector (on the torch lead) with
the female receptacle. Push the male connector into
the female receptacle. The connectors should push
together with a small amount of pressure.
2. Secure the connection by turning the locking nut
clockwise until it clicks. DO NOT use the locking nut
to pull the connection together. Do not use tools to
secure the connection.
1
2
Art # A-07885
Connecting the Torch to the Power Supply
3. The system is ready for operation.
Check Air Quality
To test the quality of air:
1. Put the ON / OFF switch in the ON (up) posi-
tion.
2. Put the Function Control switch in the SET posi-
tion.
3. Place a welding filter lens in front of the torch and turn
ON the air. Do not start an arc!
Any oil or moisture in the air will be visible on
the lens.
3T.02 Setting Up Mechanical Torch
NOTE!
When converting a hand torch or a machine torch
system to operate an Automation 100SLV torch, one
of the CNC interface options will be required if not
previously installed.
WARNING
Disconnect primary power at the source before
disassembling the torch or torch leads.
The mechanical torch includes a positioning tube with rack and
pinch block assembly.
1. Mount the torch assembly on the cutting table.
2. To obtain a clean vertical cut, use a square to align the
torch perpendicular to the surface of the workpiece.
A-02585
rkpiece
Square
Pinch Block
Assembly
Mechanical Torch Set - Up
3. The proper torch parts (shield cup, tip, start cartridge,
and electrode) must be installed for the type of opera-
tion. Refer to Section "4T.01 Torch Parts Se-
lection" on page 4T-1 for details.
