Manual 0-2577 1 INTRODUCTION & DESCRIPTION
SECTION 1: INTRODUCTION & DESCRIPTION
1.1 SYSTEM DESCRIPTION
The PAK MASTER
®
25™
European Air Plasma
Cutting System
Includes:

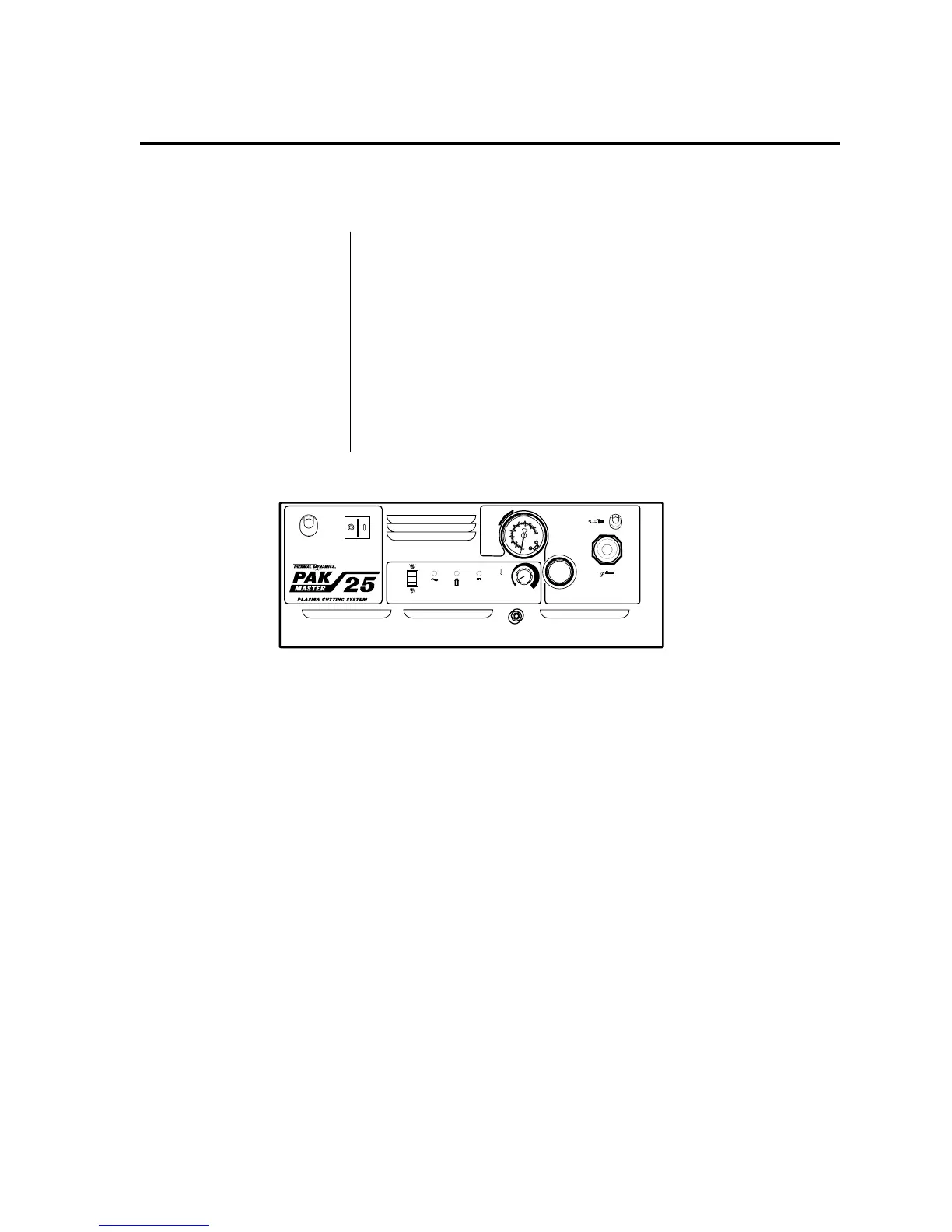

Figure 1-A PAK MASTER 25™ EMC Model Power Supply
• PAK MASTER 25™ EMC Model - The Power Supply provides
20 amps maximum output cutting current from a standard 110
volt, 50/60Hz AC single phase input service. All electrical,
pilot, and gas control circuitry is included.
• EMC PCH-25 Hand Torch with leads. Cut capacity is 1/4 inch
(6.4 mm) steel. Parts-In-Place (PIP) is an integral safety feature
of this torch to reduce the risk of electric shock.
• EMC PCH-25 Spare Parts Kit.
• 10 foot Work Cable with Clamp.
• 10 foot AC Input Power Cable.
AC POWERINPUT POWER
PRESSURE
TORCH
WORK
OPERATING
PRESSURE
50 PSI
(3.4 BAR)
CURRENT
RUN
SET
AC
GAS
DC
12 20
Made in the USA
R
40
20
100
100
80
6
0
2
1
3
4
5
6
bar
psi
A-01289
Note: Handle Not Shown
®
