CUSTOMER/OPERATOR SERVICE
Manual 0-2577
Configuration
Current Rating
Duty Cycle
Cutting Range
Pierce Rating
Transfer Distance
Consumable Parts
Gases
Pressure Requirements
Flow Requirements
Lead Length
70º or 90° Hand Torch
20 Amps Maximum, DC Straight Polarity
100%
Most materials up to 1/4 in (6.4 mm)
1/8 in (3.2 mm)
1/8 in (3.2 mm)
Gas Distributor, Electrode, Tip, Shield Cup
Compressed Air or Nitrogen (N
2
) Only
50 psi (3.5 BAR)
125 scfh (49 lpm)
12.5 ft (3.8 m) or 25 ft (7.6 m)
4.2 TORCH SPECIFICATIONS

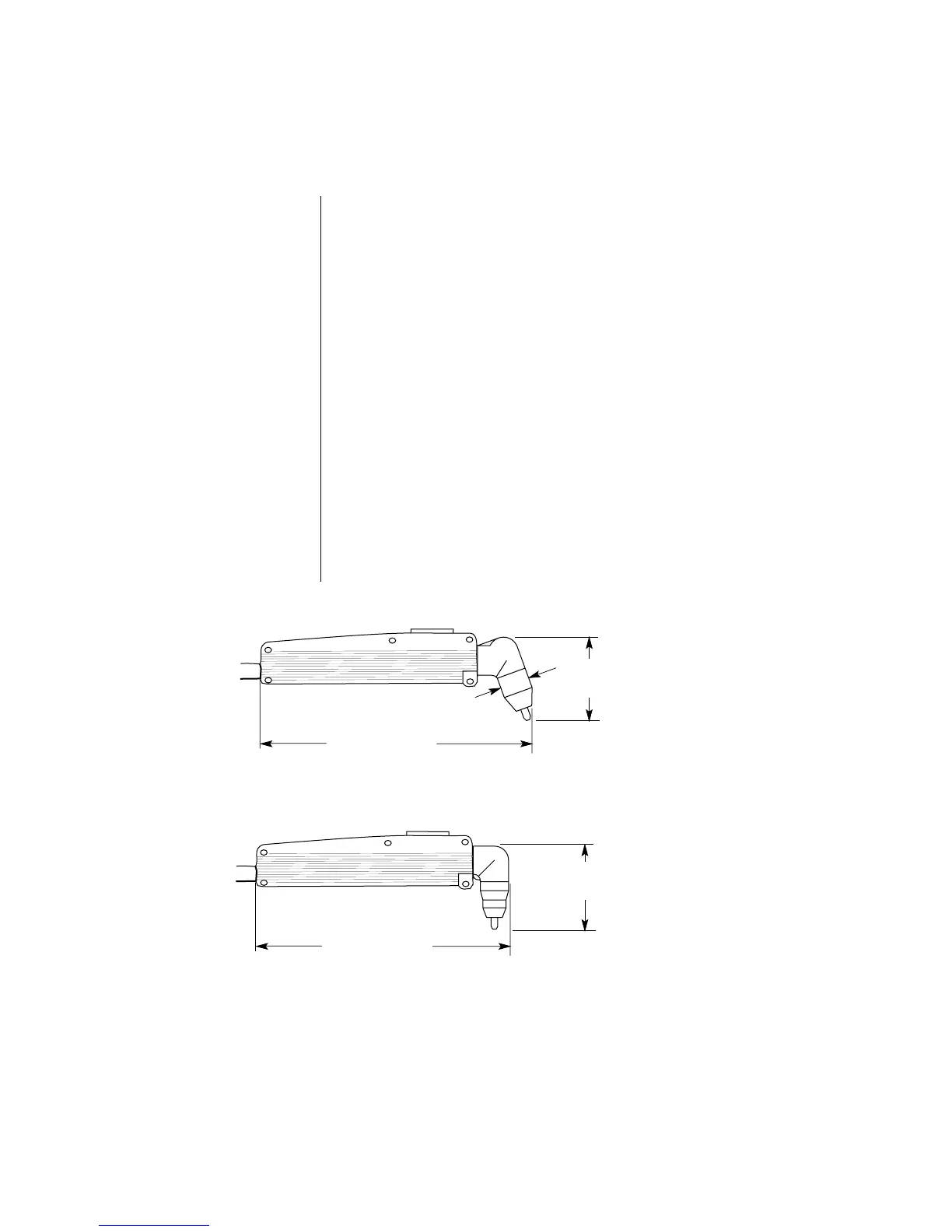

Figure 4-B PCH-25 Torch Dimensions
7.98 in (203 mm)
1.06 in (27 mm)
2.95 in
(75 mm)
7.31 in (186 mm)
3.13 in
(80 mm)
70˚
90˚
A-00779
