PARTS LISTS
Manual 0-2577

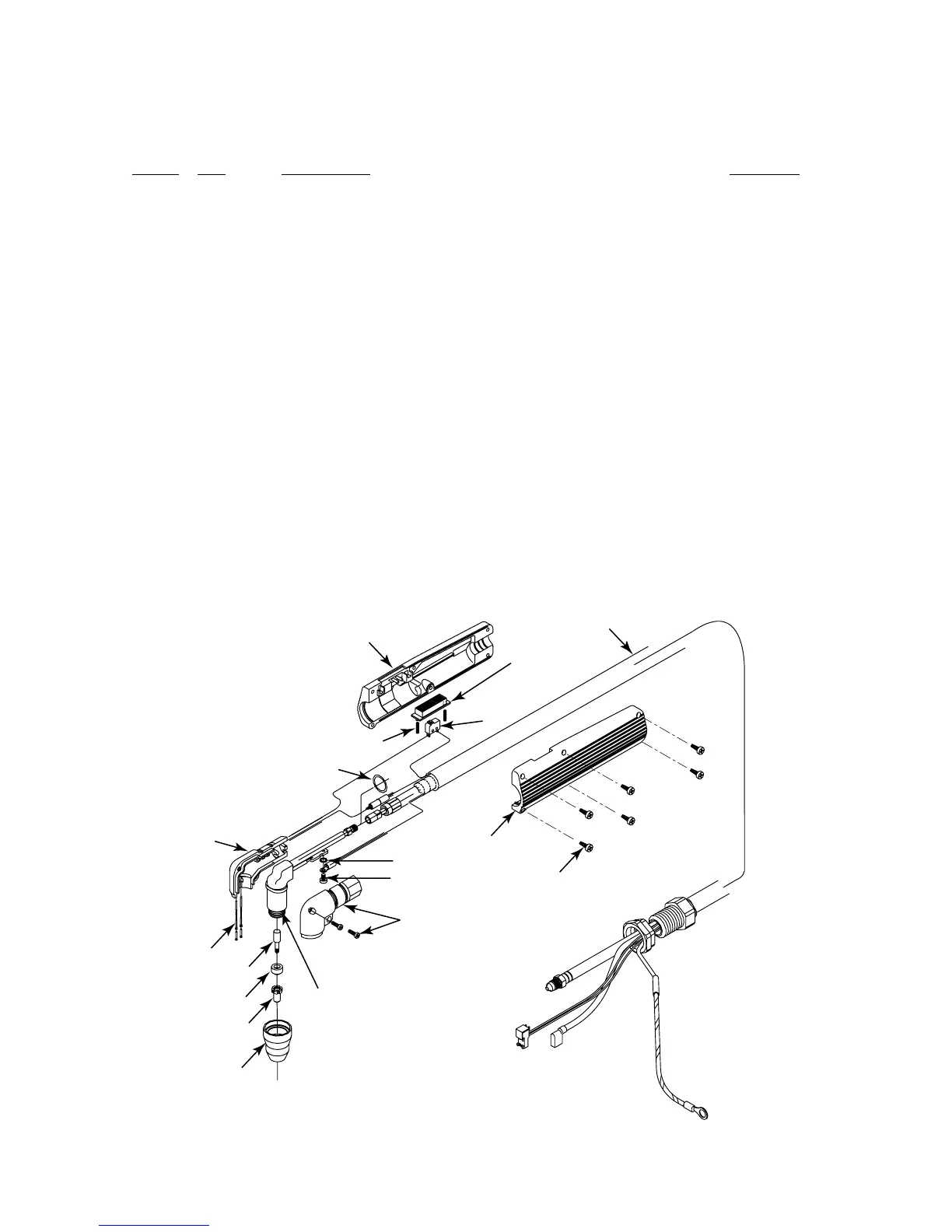

5.2 REPLACEMENT HAND TORCH PARTS
Item # Qty Description Catalog #
1 1 Assembly, PIP (Parts-In-Place) Pins and Wire 9-6290
2 2 O-Ring 8-0533
3 1 Holder, Torch, Split, PCH25 70° Two Parts w/Screws 9-6259
1 Holder, Torch, Split, PCH25 90° Two Parts w/Screws 9-6260
4 1 Assembly, Basic Head, PCH25 70° 9-5807
1 Assembly, Basic Head, PCH25 90° 9-5808
5 1 Distributor, Gas 9-6007
6 1 Tip, Air, 0.031 Orifice, Drag Cutting 9-4476
7 1 Electrode, Air 9-6006
8 1 Shield Cup, Standard 9-6003
9 1 Handle, Split, PCH-25 Two Parts (Includes items #14 thru#16) 9-6282
10 1 EMC Lead Assembly, Composite Cable
12.5 ft (3.8m) Length 4-5098
25 ft (7.6m) Length 4-5099
11 1 Switch, Torch 9-1058
12 1 #6-32 x 3/16 Phillips Pan Head Screw See Note
13 1 #6 Internal Star Washer See Note
14 1 Button, Split Holder 8-4256
15 2 Spring 8-4256
16 6 #2-56 x 5/16" Phillips Pan Head Screw See Note
NOTE: Item can be purchased locally.
.
9
10
2
3
3
1
4
7
5
6
8
12
13
11
14
15
16
9
A-00800
To Next Page
