Thermal Dynamics ULTRA-CUT 100 User Manual

Manual No. 0-4819 6-24 Power Supply Parts List

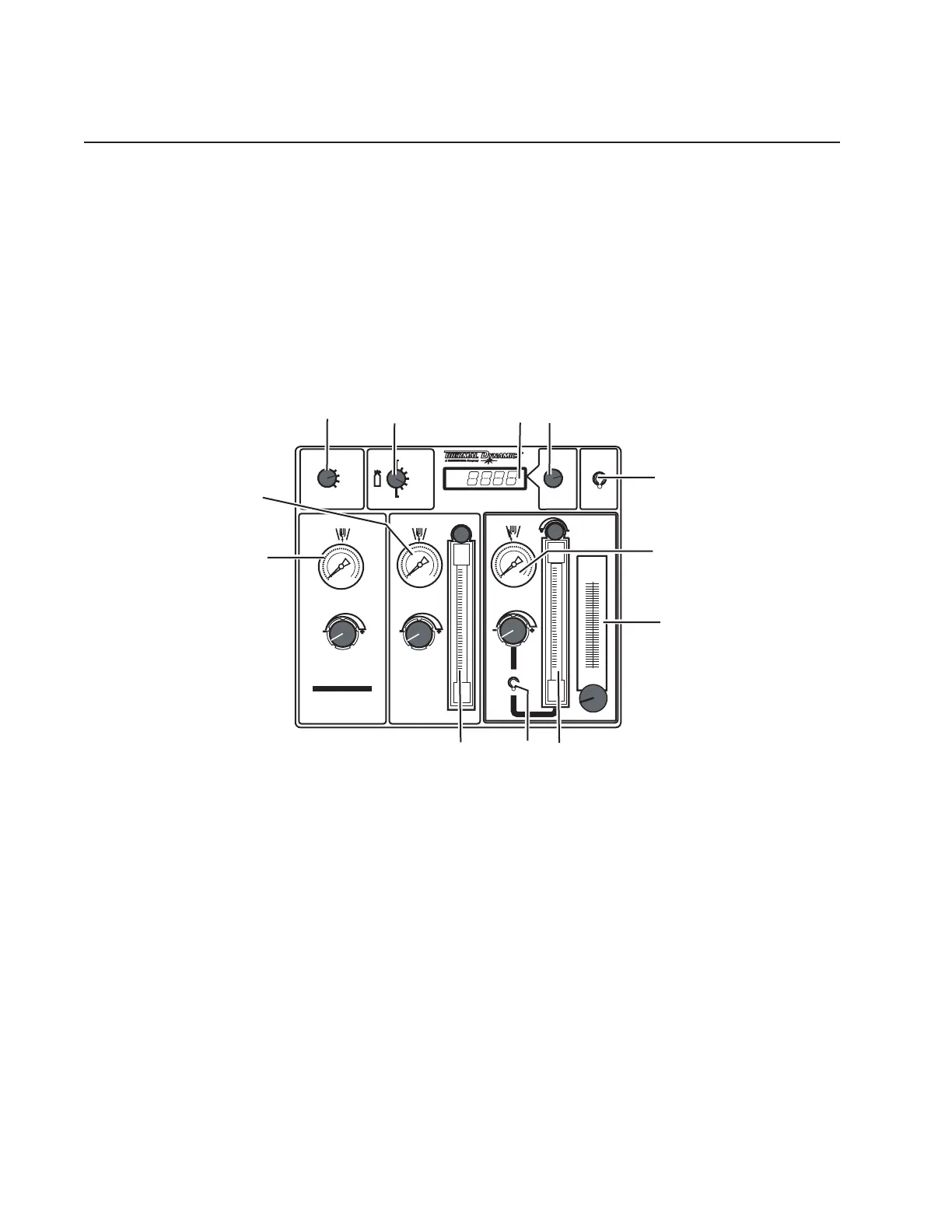

Gas Control Module (GCM-2010) Replacement Parts
Item # Qty Description Catalog #
1 1 1” Black Instrument Knob 9-4233
2 1 Water Flow Meter with Valve 9-7005
3 1 Toggle Switch, 2 position SPDT 9-3426
4 1 Pressure gauge, 2” diameter 8-6800
5 1 Pressure gauge, 2” diameter 8-4313
6 1 Flow Meter 8-6801
7 1 Protective Display Lens (only) 9-9395
PREFLOW
H
2O
MIST
PLASMA
SHIELD
PRESSURE
PLASMA
POWER SUPPLY
GAS
FLOW
AMPERAGE
SET-UP
High Precision
Plasma Cutting System
ENABLE
DISABLE
GAS
MODE
RUN
SET PREFLOW
SET PLASMA
& SHIELD
TEST
O2 - AIR
O2 - O2
H35 -N
2
F5 - N 2
AIR - AIR
N
2 - H 2 O
N
2 - N 2
9
9
GCM
2010
Art # A-04814
3
5
4
1
2
6
7
3
6
1
1
4
