Thermal Dynamics ULTRA-CUT 100 User Manual

Manual No. 0-4819 6-16 Power Supply Parts List

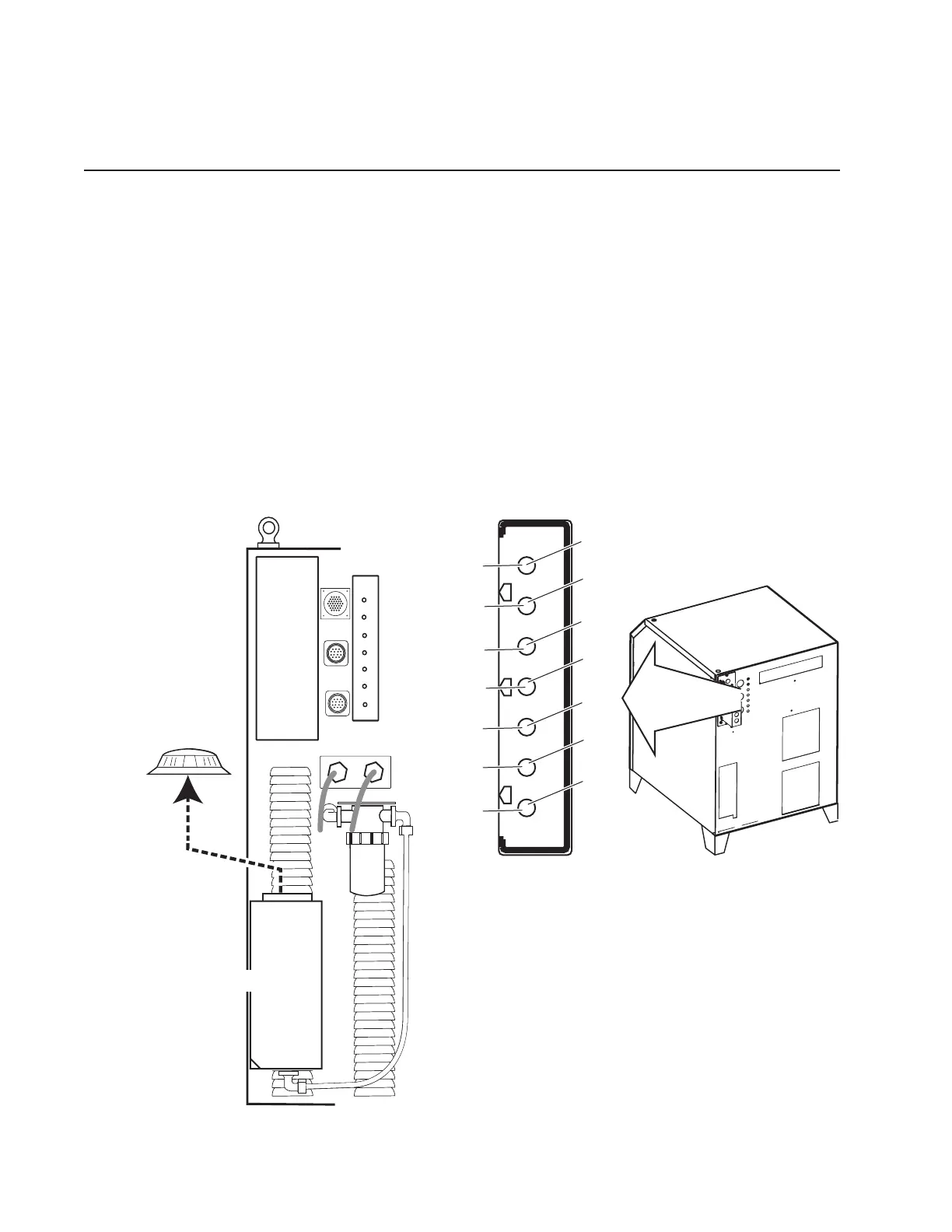

Power Supply Replacement Parts - Rear Panel
Item # Qty Description Ref. Des. Catalog #
12 1 Circuit Breaker (RAS, 120V, 2.5 A) CP2 9-9348
13 1 Circuit Breaker (’TDC’, 24V, 3.25A) CP3 9-9349
14 1 Circuit Breaker (AGC, 24V, 10A) CP4 9-9350
15 1 Circuit Breaker (AGC, 120V, 2.5A) CP5 9-9348
16 1 Circuit Breaker (AGC, 15V, 2.5A) CP6 9-9348
17 1 Circuit Breaker (Pump, 200V, 5A) CP7 9-9351
18 1 Circuit Breaker (Fan, 24V, 15A) CP8 9-9352
1 Coolant Tank 9-5948
1 Tank Cap 8-5142
RETURN
SUPPLY
Art # A-04932
COOLANT
Coolant Tank
Tank Cap
RAS
120V 5A
CCM
24V3 15A
GCM
24V 10A
GCM
120V2 5A
GCM
15V2 5A
PUMP
200V 5A
FAN
24V 15A
CIRCUIT
BREAKERS
J55
J59
J15
G
C
M
C
N
C
R
A
S
CP2
CP3
CP4
CP5
CP6
CP7
CP8
12
13
14
15
16
17
18
Art # A-06017
