Thermal Dynamics ULTRA-CUT 100 User Manual

Manual No. 0-4819 3-2 INSTALLATION

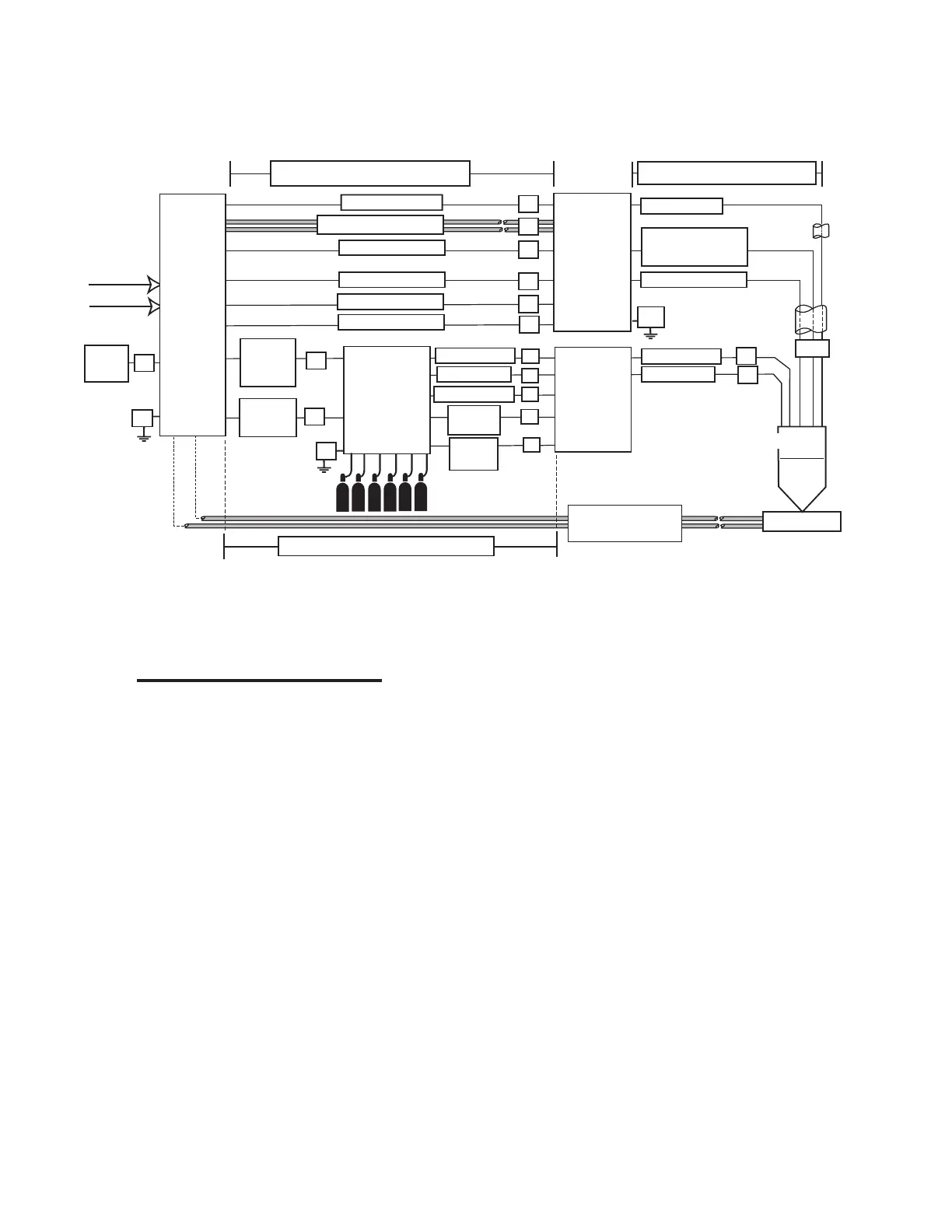

C. System Layout
Primary power
CNC
Remote
Arc
Starter
Art # A-07118
Coolant Supply
Coolant Return
Control Cable
Coolant Supply
w/ Negative
Coolant Return
Control
Cable
Fiber
Optic
Cable
Control
Cable
Gas Control
Module
300-A
Power
Supply
Torch
Valve
Assembly
Shield
A
B
C
D
E
P
F
I
J
K
L
H
F1
F
Q
R
S
Ground Cable
F
Shield
Plasma Gas
Shield Gas
Plasma Gas
Shield Gas
Preflow Gas
Work
Torch
Positioning Tube
Water
Shield
G
T
Pilot Return
Pilot Return
Negative Leads (2)
Work Cables (2)
25’ / 7.6 m Maximum Length
125’ / 38.1 m Maximum Length
175’ / 53.3 m Maximum Length
NOTE
Installation requires two negative leads
and two work cables.
