Manual No. 0-4819 6-23 Power Supply Parts List

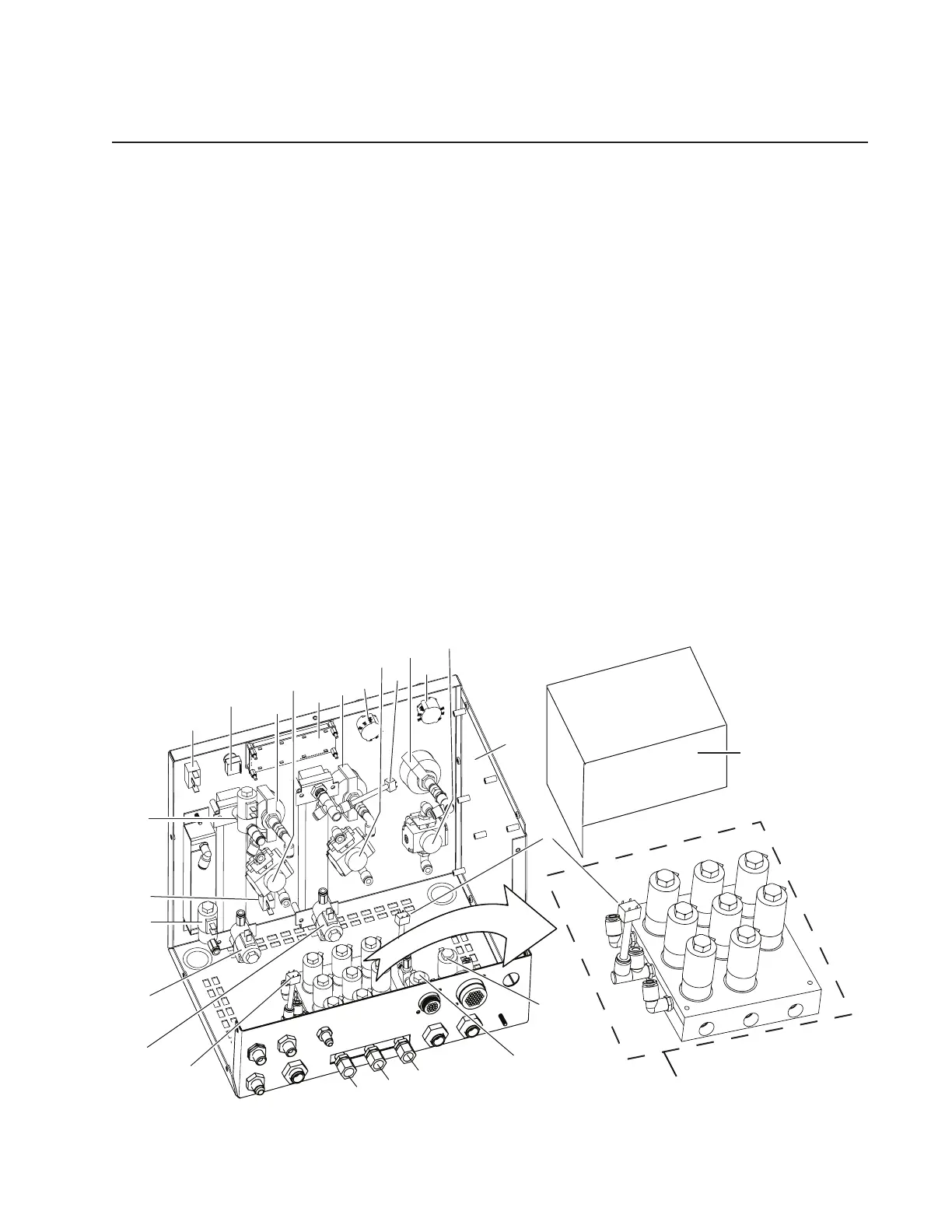

Gas Control Module (GCM-2010) Replacement Parts
Item # Qty Description Catalog #
1 1 7W Solenoid for O2 use 9-9393
2 1 Gas Selection Manifold Assembly 9-9391
3 1 Check Valve, 1/4 NPT .5 PSI 9-9390
4 1 4-Position Rotary Switch 9-9396
5 1 7-Position Rotary Switch 9-9397
6 1 LCD Interface PC Board 9-9408
7 1 Rotary Encoder (Switch) 9-9398
8 1 Toggle Switch 9-3426
9 1 Solenoid / Logic PC Board 9-9409
10 1 Cover 9-9410
11 1 Gauge, 0-100 psi 8-4313
12 1 Gauge, 0-160 psi 8-6800
13 1 Regulator 8-3223
14 1 Pressure Transducer and wire harness 9-9407
15 2 Pressure Transducer and wire harness 250 PSI 9-9508
NOT SHOWN:
1 Torch Valve Assembly Wire Harness (J13 to J57) 9-9399
1 Power Supply Connection Wire Harness (J3 & J5 to J56) 9-9400
1 LCD Interface PC Board Wire Harness 9-9401
1 Rotary Encoder (Switch) Wire Harness 9-9402
1 Gas Selection Switch Wire Harness (J11 to SW 1 thru SW7) 9-9403
1 Solenoid Drive A Wire Harness (J12 to Solenoids 1-6) 9-9404
1 Solenoid Drive B Wire Harness (J1 to Solenoids 7-12) 9-9405
1 Mode Selection Switch Wire Harness (J7 to SW 1 thru 4) 9-9406
Art # A-07030
2
1
1
1
1
3
7
8
4
5
6
3
3
1
1
8
9
10
11
13
13
15
12
12
14
13
15
To Next Page
